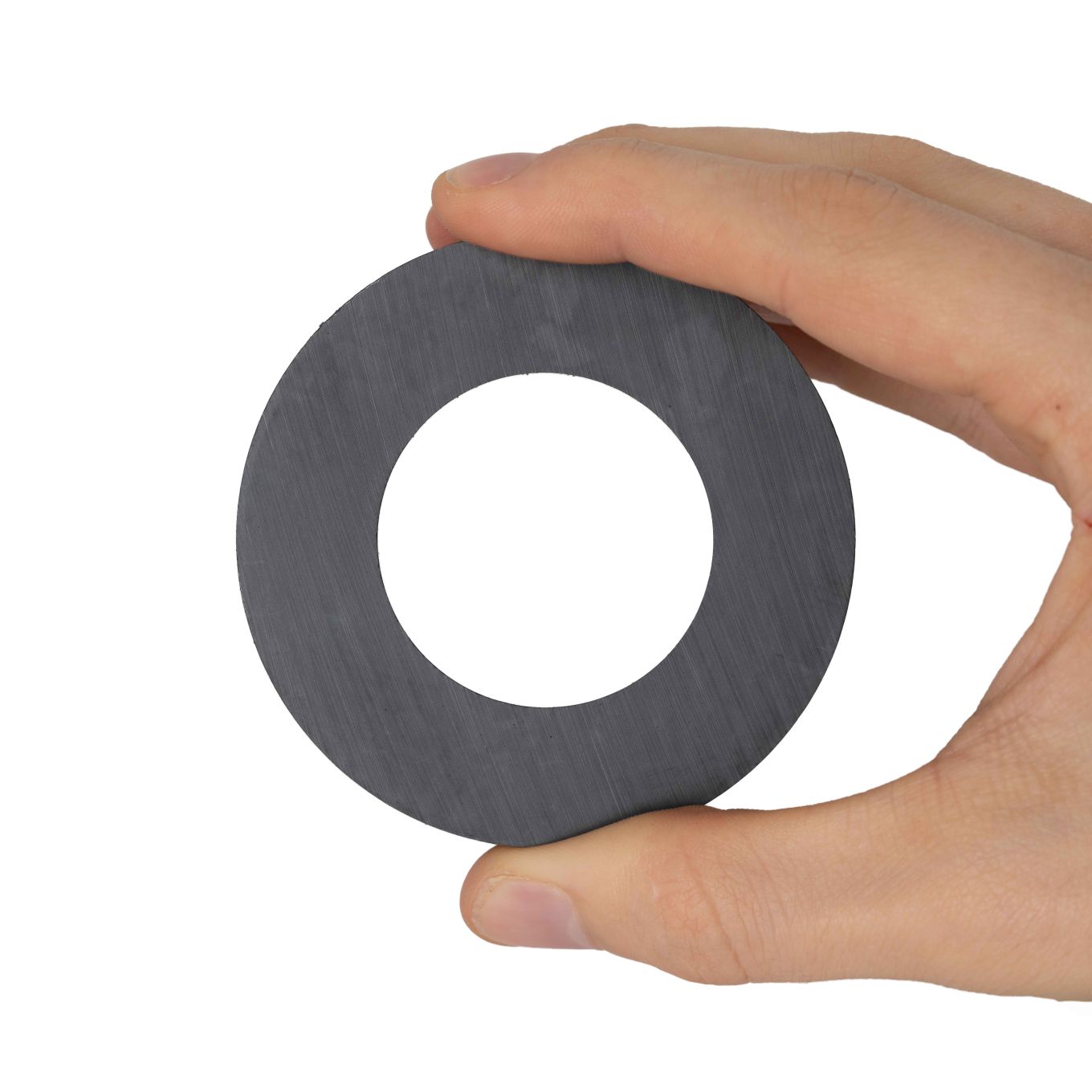

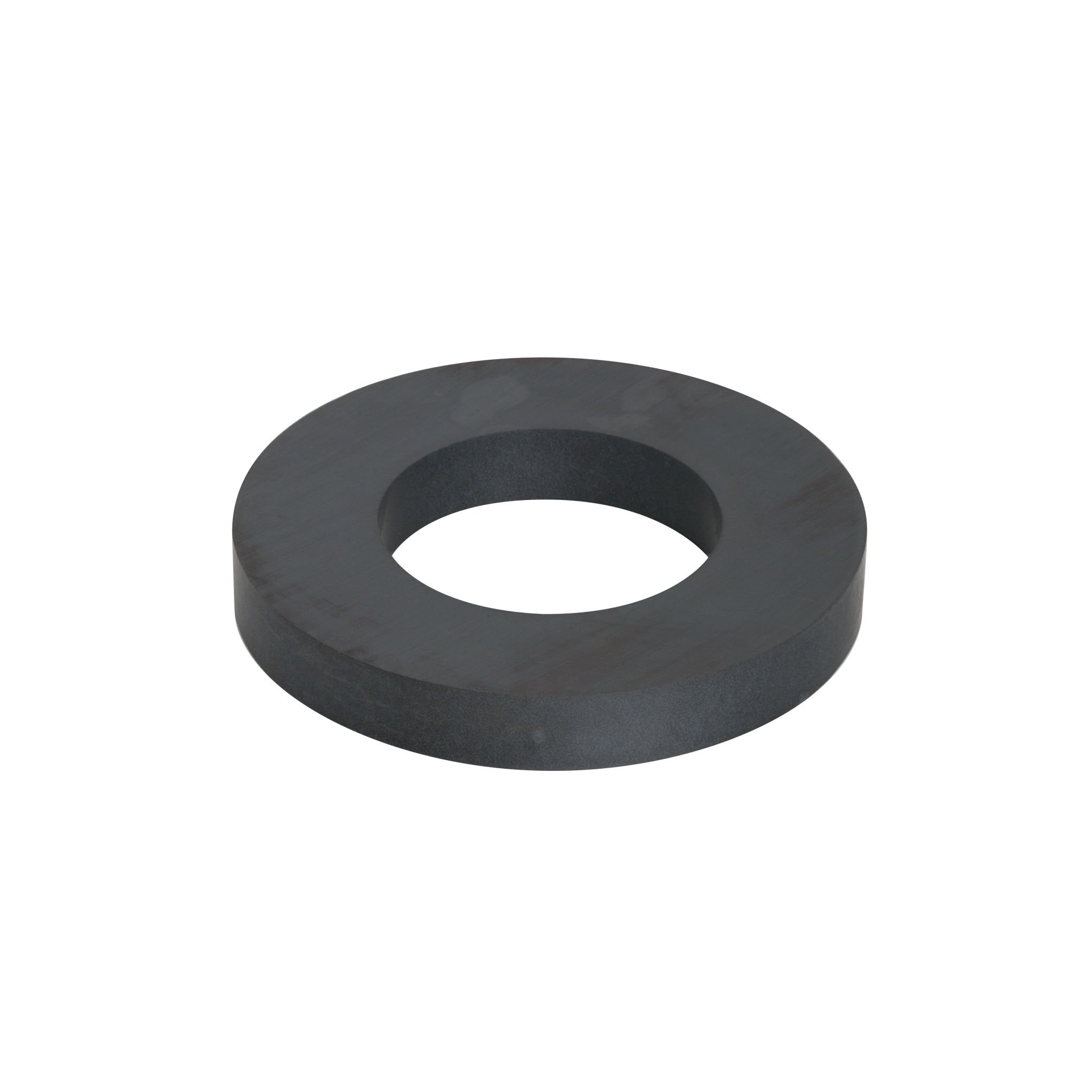

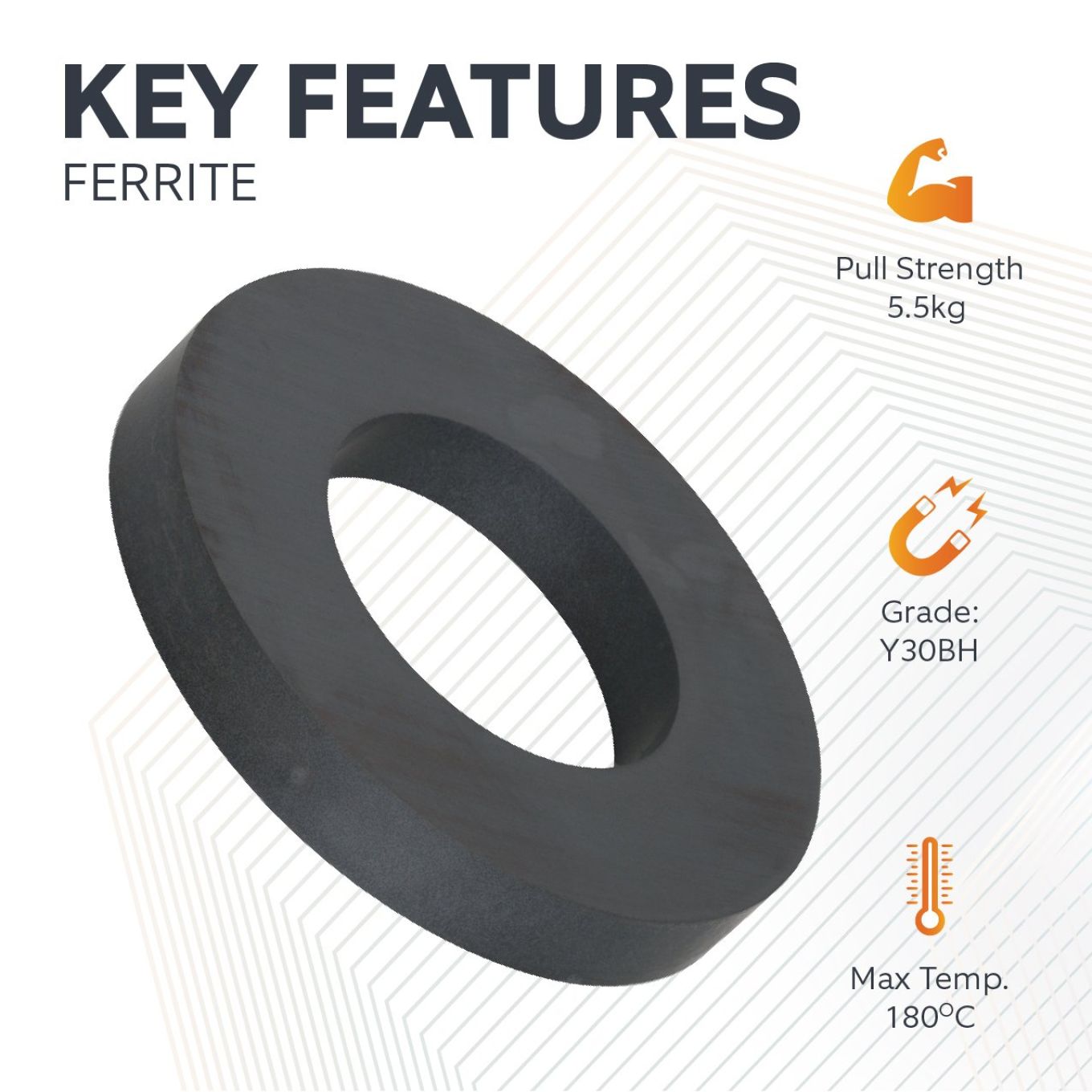

Y30BH Ceramic Ring Magnet - 2-27/32 in. O.D. x 1-17/32 in. I.D. x 3/8 in. thick - 12.13lbs Pull
*Measurements have been rounded to the nearest fraction inch - please check the product description for an accurate measurement.*
Commonly used in loudspeaker systems and magnetic rollers among many other applications, these versatile, large Ceramic (Ferrite) ring magnets provide excellent resistance to demagnetisation and corrosion at unbeatable value.
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:

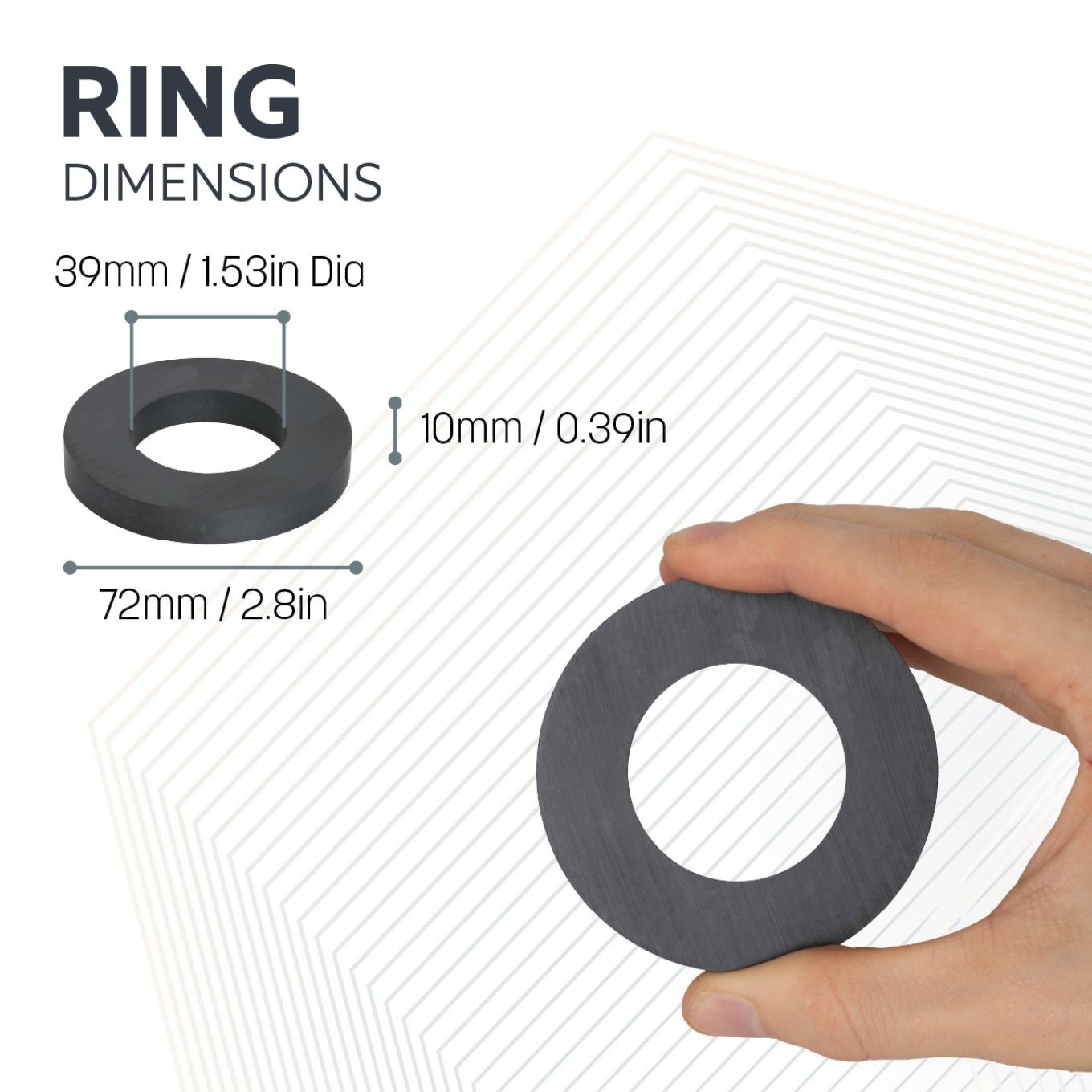

- 72mm O.D x 39mm I.D x 10mm thick
- 2.83 in. O.D. x 1.54 in. I.D x 0.39 in. thick
- Each magnet's north and south poles are on opposite circular faces.
- Each magnet can support 12.13lbs pull vertically from the magnetic face when in flush contact with a mild steel surface of equal thickness.
- Resistant to demagnetisation and corrosion without any extra coating.
Also known as ferrite magnets, ceramic magnets offer excellent value for money when pull strength is not the most important factor. They have a high resistance to corrosion and demagnetisation and can operate in temperatures up to 572°F. Ring magnets are made specifically for loudspeaker systems and their sizes have evolved with demand from this market. However, they are also commonly used in magnetic rollers for separating applications and in the printing industry. They are also a vital component found in fast running conveyor systems in many manufacturing plants dealing with ferrous material.
