Y30BH Ceramic Countersunk Pot Magnet - 1 in. dia x 9/32 in. thick x 3/16 in. hole - 6.39lbs Pull
*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*

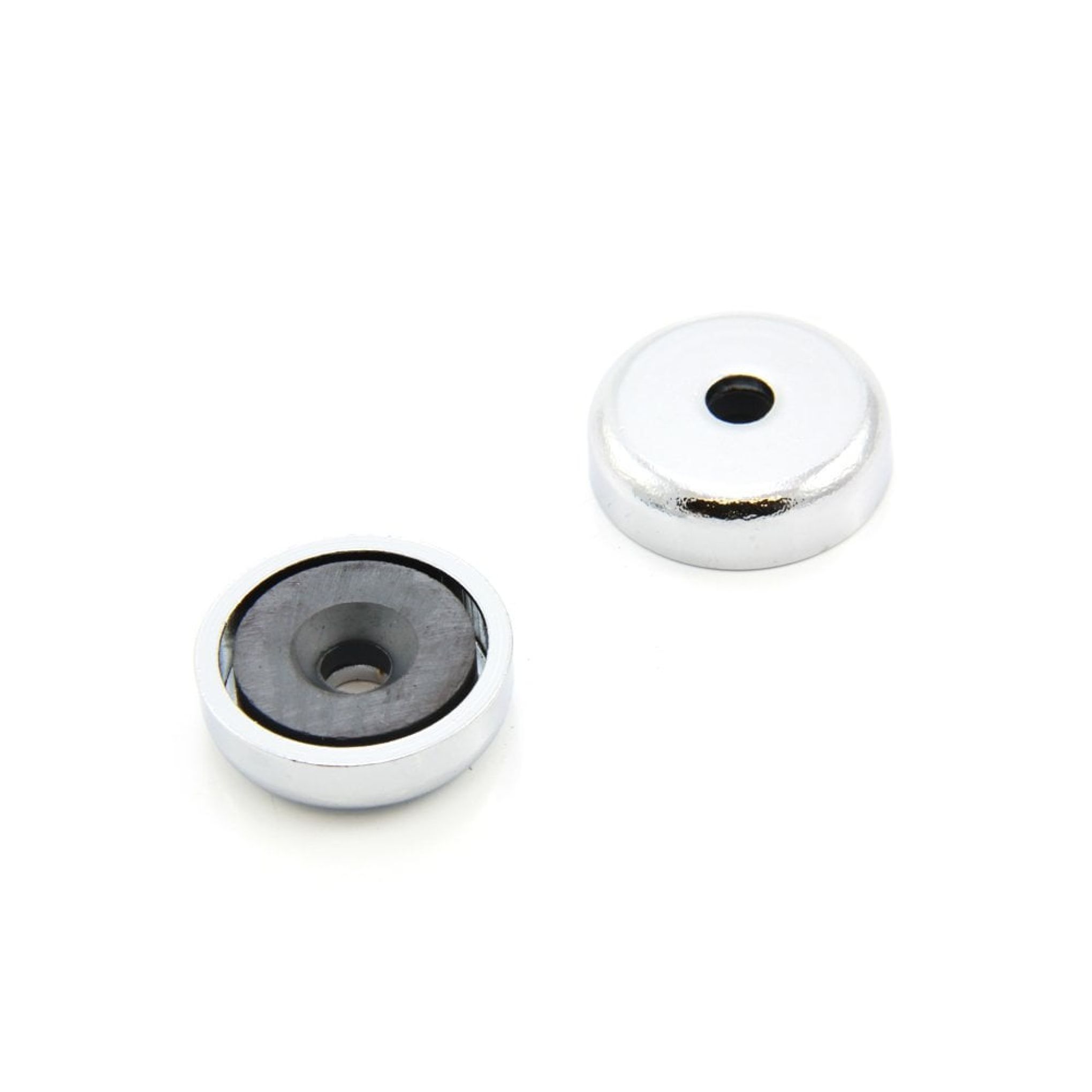

These medium-sized, Ceramic (Ferrite) (Y30BH) pot magnets are chrome plated with a countersunk hole on the magnetic face. Magnetism is concentrated on one face to provide the maximum holding force.
Pack quantity: 1 Pot magnet
Explore how countersunk magnets can help your application in our handy
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:

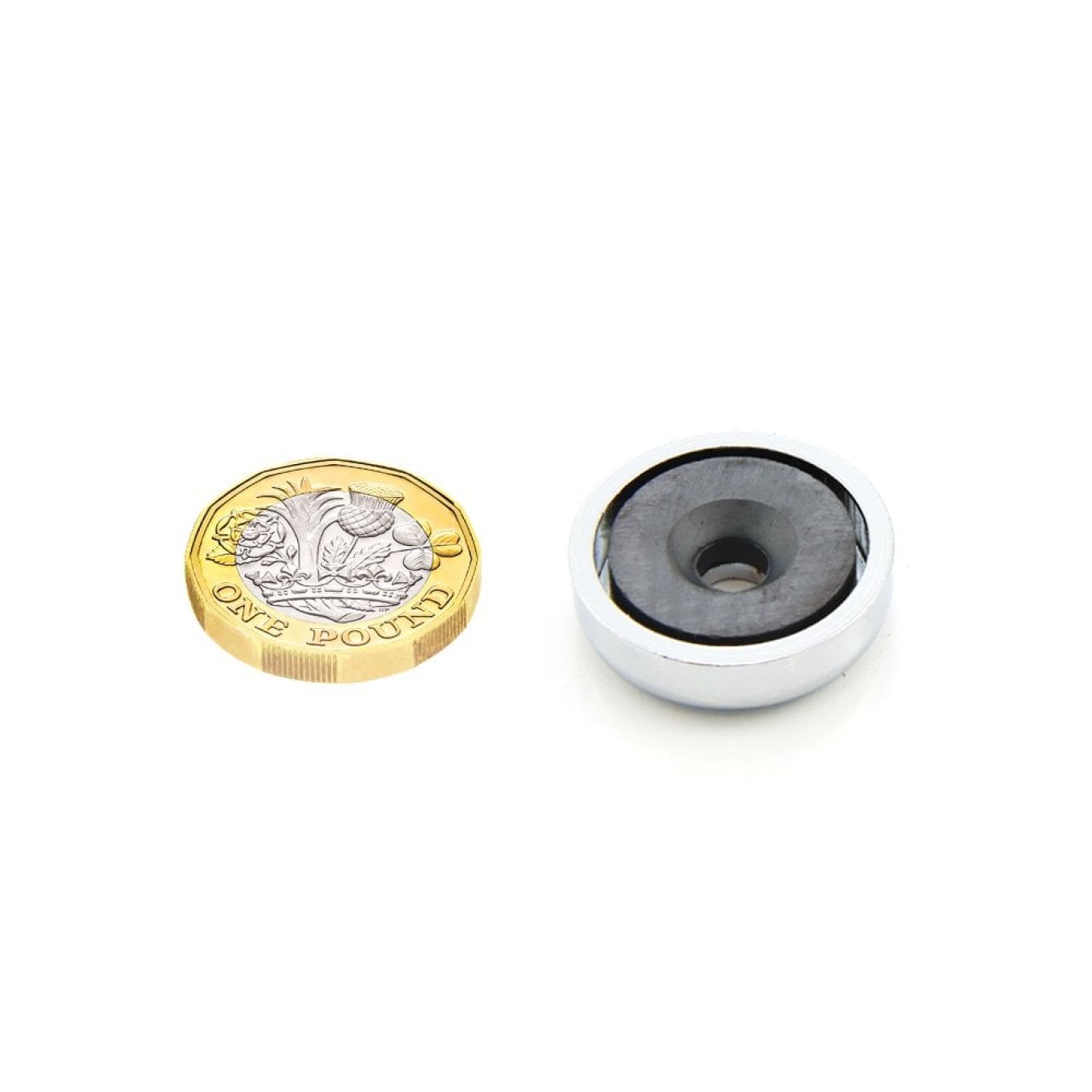

- 25mm diameter x 7mm thick with a 5mm diameter countersunk hole for fixing.
- 0.98 in. diameter x 0.28 in. thick with a 0.2 in. diameter countersunk hole for fixing.
- Each magnet is only magnetic on the countersunk face.
- Each magnet can support 2kg (4.41lbs) pull vertically from the magnetic face when in flush contact with a mild steel surface of equal thickness.
- Chrome coated steel shell.
- Can be fixed in place with 5mm (0.2 in.) diameter countersunk screws.
Outstanding value for money, these ferrite pot magnets are made of a ferrite magnet sunken in to a steel shell meaning that the north pole is on the centre of the magnetic face and the south pole is on the outer edge around it. The steel pot increases the adhesive force of the magnets giving them a strong hold for their size. An added advantage of pot magnets is that they are resistant to chipping or cracking following constant impact with a steel surface.
