Y10 Ceramic Ring Magnet - 15/32 in. O.D. x 1/8 in. I.D. x 1/8 in. thick - 0.22lbs Pull
*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*

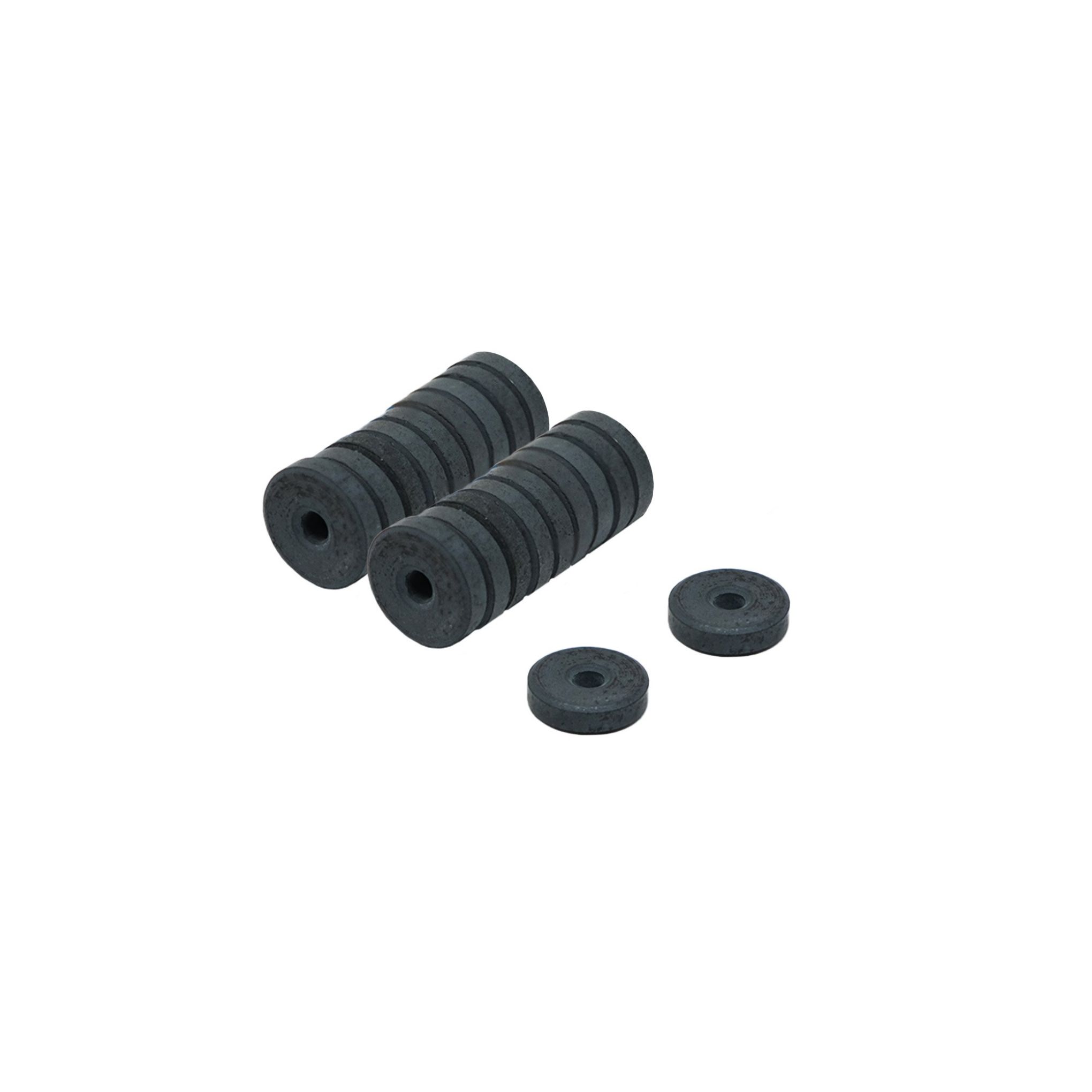

These small Ceramic (Ferrite) ring magnets have a very shallow countersunk hole on the north pole for fixing in place. Each magnet can support 0.24lbs in a vertical position against a steel surface.
Pack quantity 20: 20 Magnets
Explore how countersunk magnets can help your application in our handy
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:

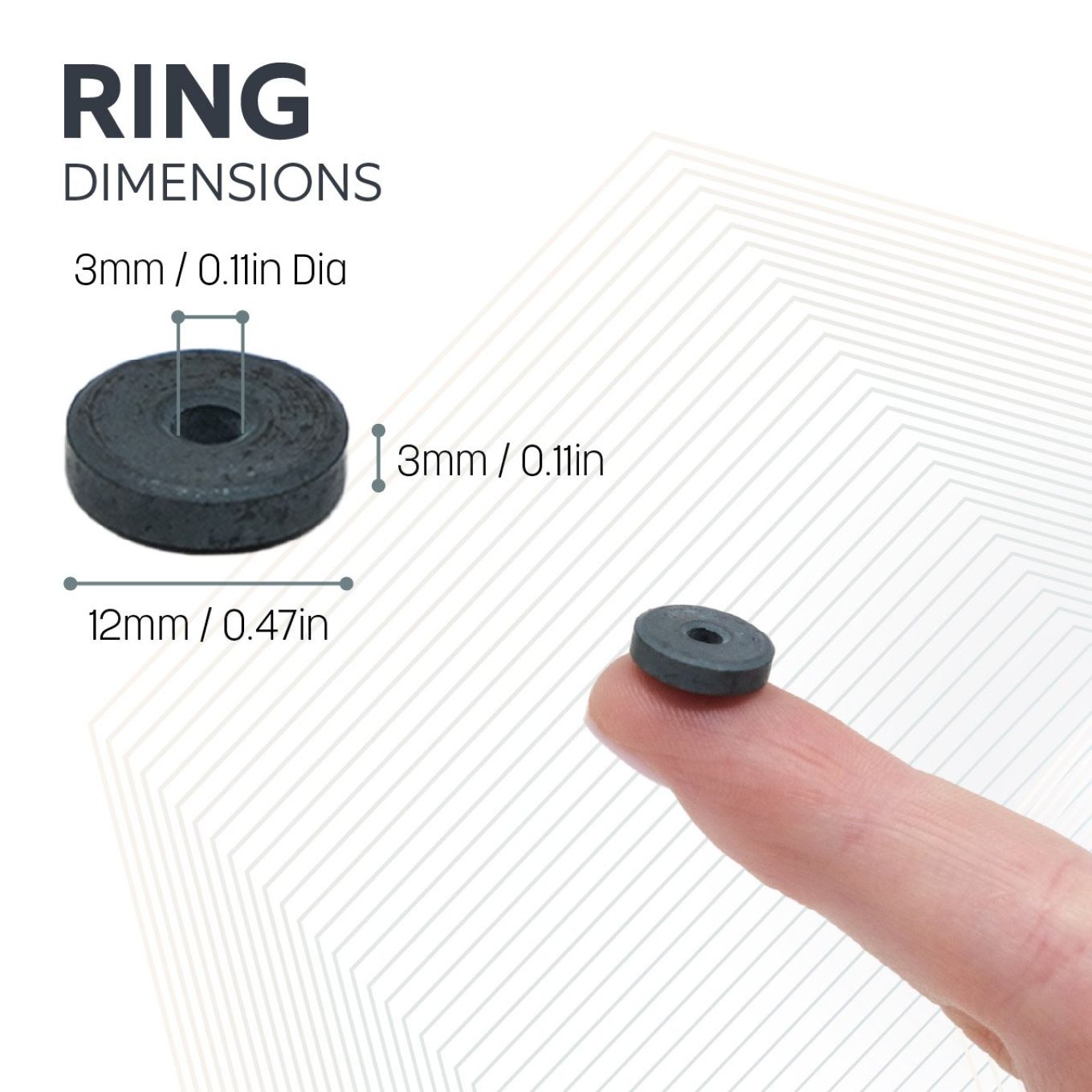

- 12mm outer diameter x 3mm inner diameter x 3.3mm thick.
- 0.47 in. outer diameter x 0.12 in. inner diameter x 0.13 in. thick.
- Each magnet's north and south poles are on opposite circular faces.
- Shallow countersink on the north pole.

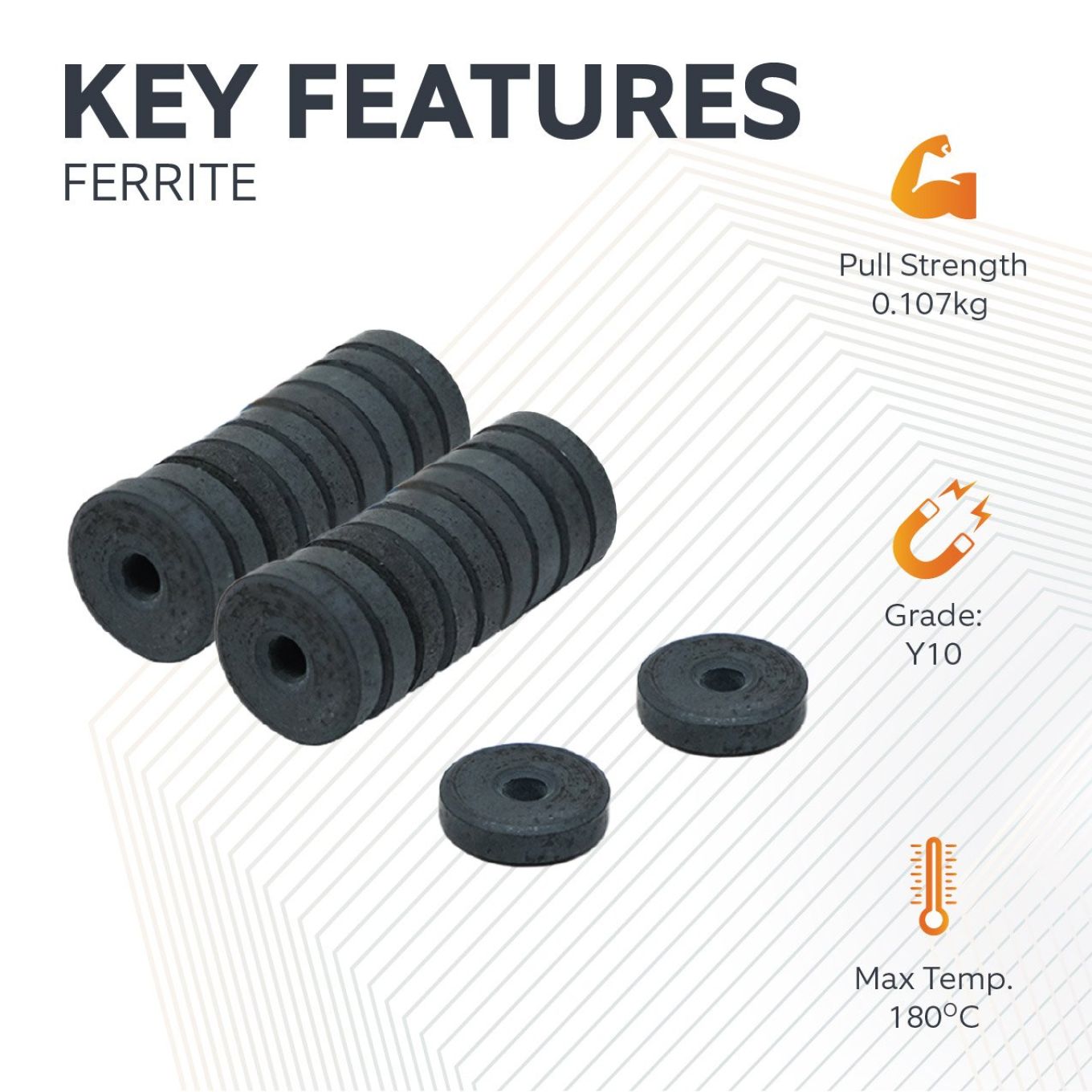

- Each magnet can support 0.107kg (0.24lbs) pull vertically from the magnetic face when in flush contact with a mild steel surface of equal thickness.
- Resistant to demagnetisation and corrosion without any extra coating.
Also known as ceramic magnets, ferrite magnets offer excellent value for money when pull strength is not the most important factor. They have a high resistance to corrosion and demagnetisation and can operate in temperatures up to 180 degrees Celsius. Ring magnets are typically made for loudspeaker systems and their sizes have evolved with demand from this market. However, they are also commonly used in magnetic rollers for separating applications and in the printing industry. Because these magnets are weakly magnetised they are not suitable for weight-bearing applications, but instead are commonly used in sensors and other similar applications.
