Y10 Ceramic Magnets - 7/16 in. O.D. x 5/16 in. I.D. x 1/8 in. thick - 0.17lbs Pull
*Measurements have been rounded to the nearest fraction inch - please check the product description for an accurate measurement.*

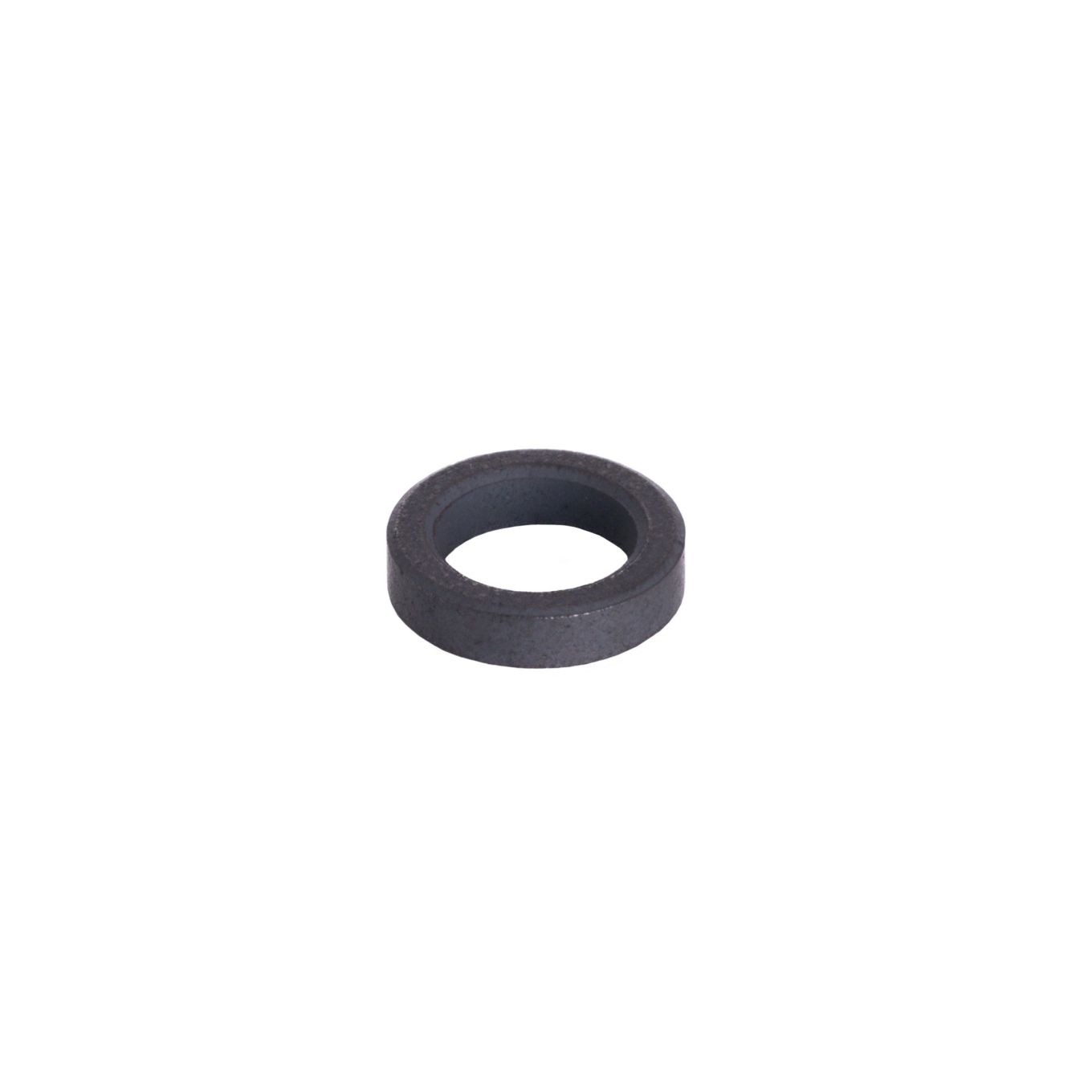

These small Ceramic (Ferrite) ring magnets have a have a large inner diameter for their size, which means they are only weakly magnetic. Each magnet is capable of supporting 0.17lbs in a vertical position against a steel surface.
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:

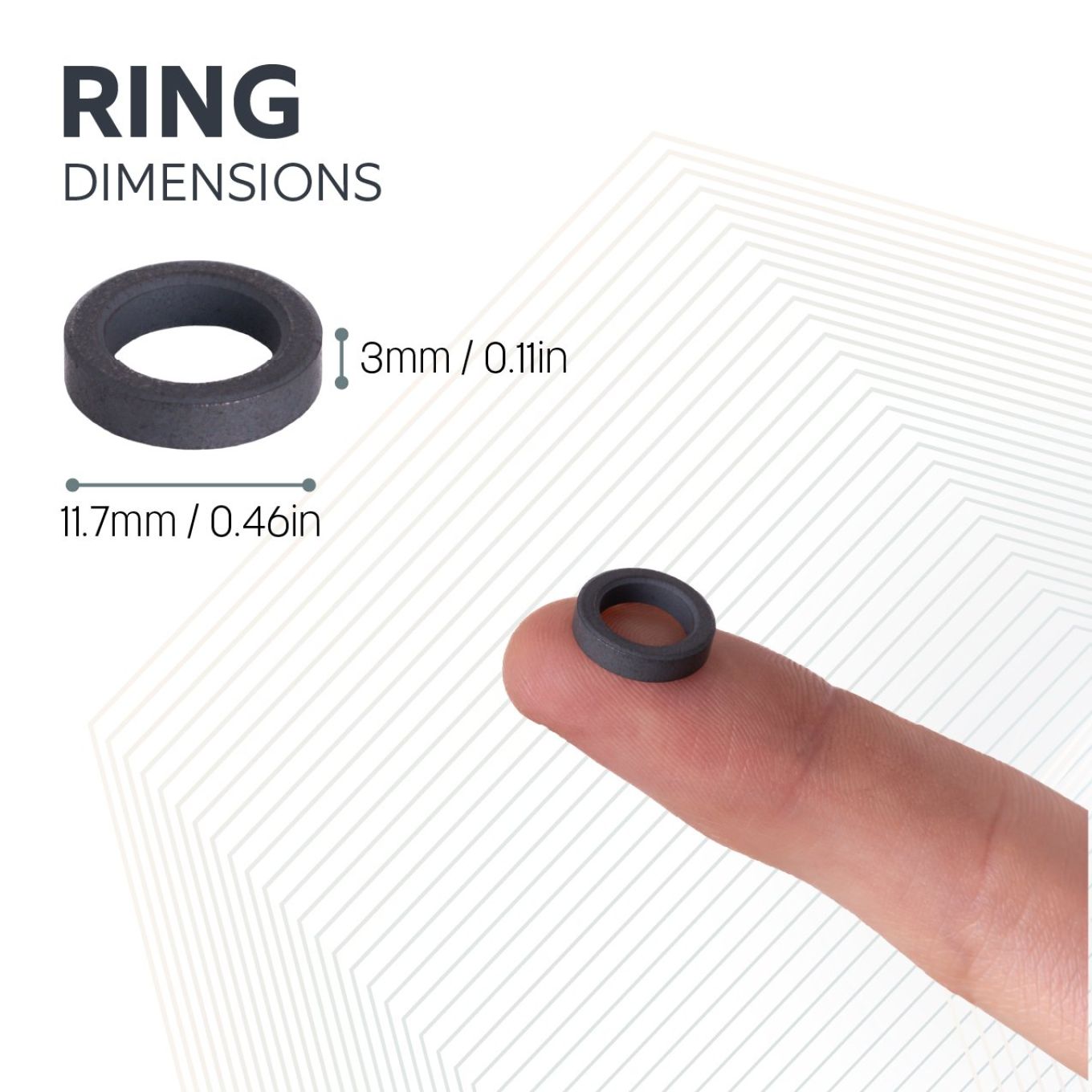

- 11.7mm O.D. x 7.9mm I.D. x 3mm thick Y10 Ferrite Magnets
- 0.46 in. O.D. x 0.31 in. I.D. x 0.12 in. thick Y10 Ferrite Magnets
- Each magnet's north and south poles are on opposite circular faces.
- Each magnet can support 0.17lbs pull vertically from the magnetic face when in flush contact with a mild steel surface of equal thickness.
- Resistant to demagnetisation and corrosion without any extra coating.
Also known as ferrite magnets, ceramic magnets offer excellent value for money when pull strength is not the most important factor. They have a high resistance to corrosion and demagnetisation and can operate in temperatures up to 356 degrees Fahrenheit. Ring magnets are typically made for loudspeaker systems and their sizes have evolved with demand from this market. However, they are also commonly used in magnetic rollers for separating applications and in the printing industry. Because these magnets are weakly magnetized they are not suitable for weight-bearing applications, but instead are commonly used in sensors and other similar applications.
