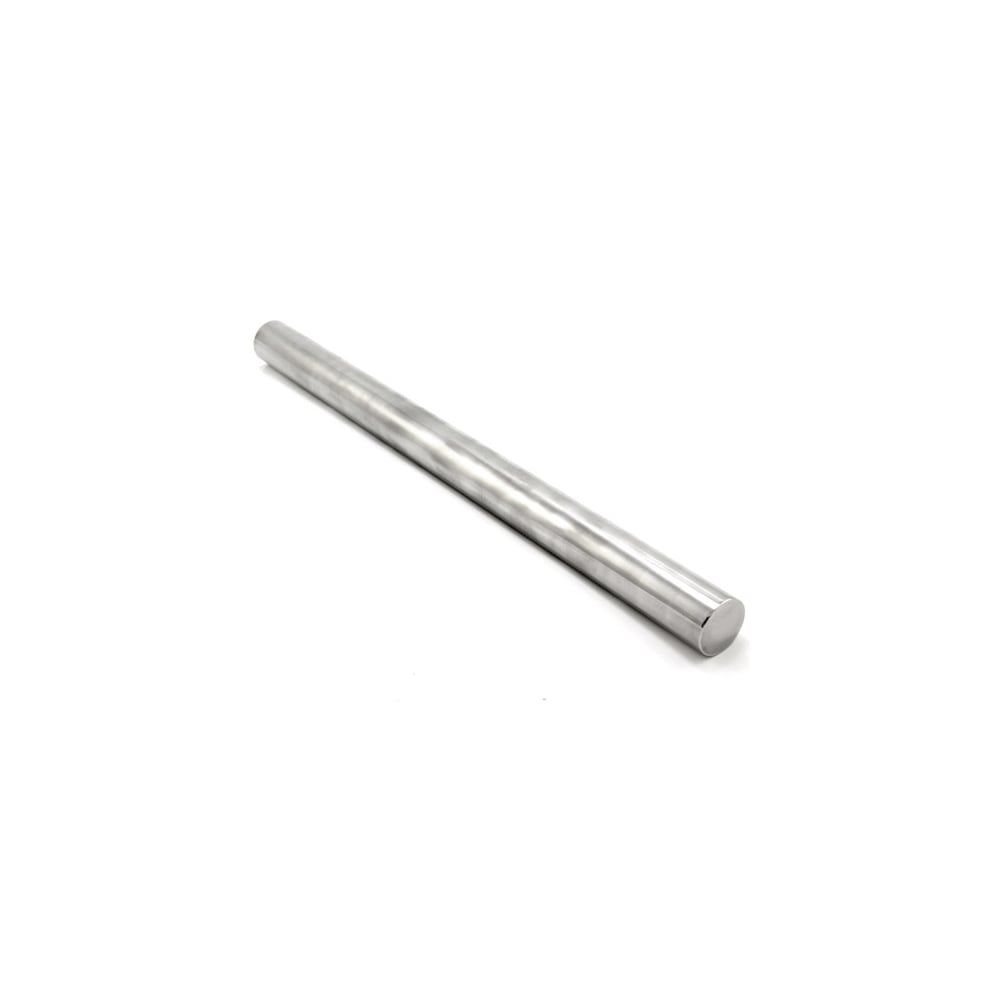

(Seconds) Long high Performance Filter Rod Magnet - 1 in. dia x 13-3/8 in. - 12,000 Gauss
*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*
An essential component of magnetic filtration systems these filter rod magnets combine several high-performance Neodymium (N42) magnets within a stainless steel casing.
These magnets are labelled as seconds as they do not have a threaded hole at either end for fixing. Instead, these rods would need to be push fit.
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
- 25mm diameter x 340mm long.
- 0.98 in. diameter x 13.4 in. long.
- Each magnet has north and south poles in radial bands around the circumference spaced 25mm (0.98 in.) apart.
- Each rod magnet has a surface Gauss measurement of approximately 12,000 Gauss.
- Completely sealed, welded and polished stainless steel casing.
- Requires push fitting in place.
Our filter rod magnets are used in a variety of industries including food, plastics and chemical processing to collect and remove magnetic particles during the processing or manufacturing process. The substance being manufactured is usually passed through a grid of filter magnets which attract any magnetic particles to their surface. These magnets have a large Gauss value because of their length and depth of field and generate very high levels of magnetism despite their relatively small surface pole area. These magnets come with a safe-handling warning; because they are so powerful they can be dangerous if not handled carefully.
