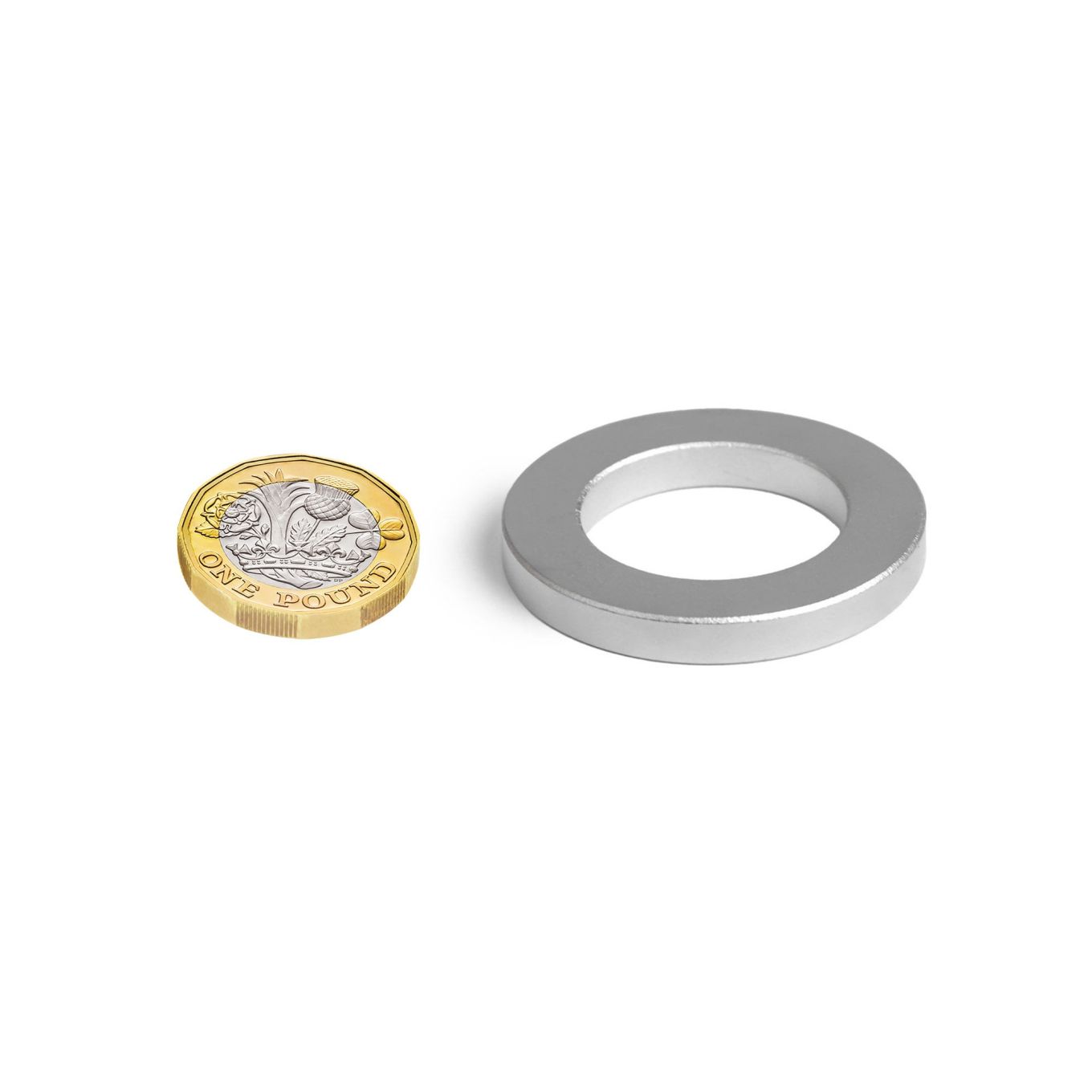

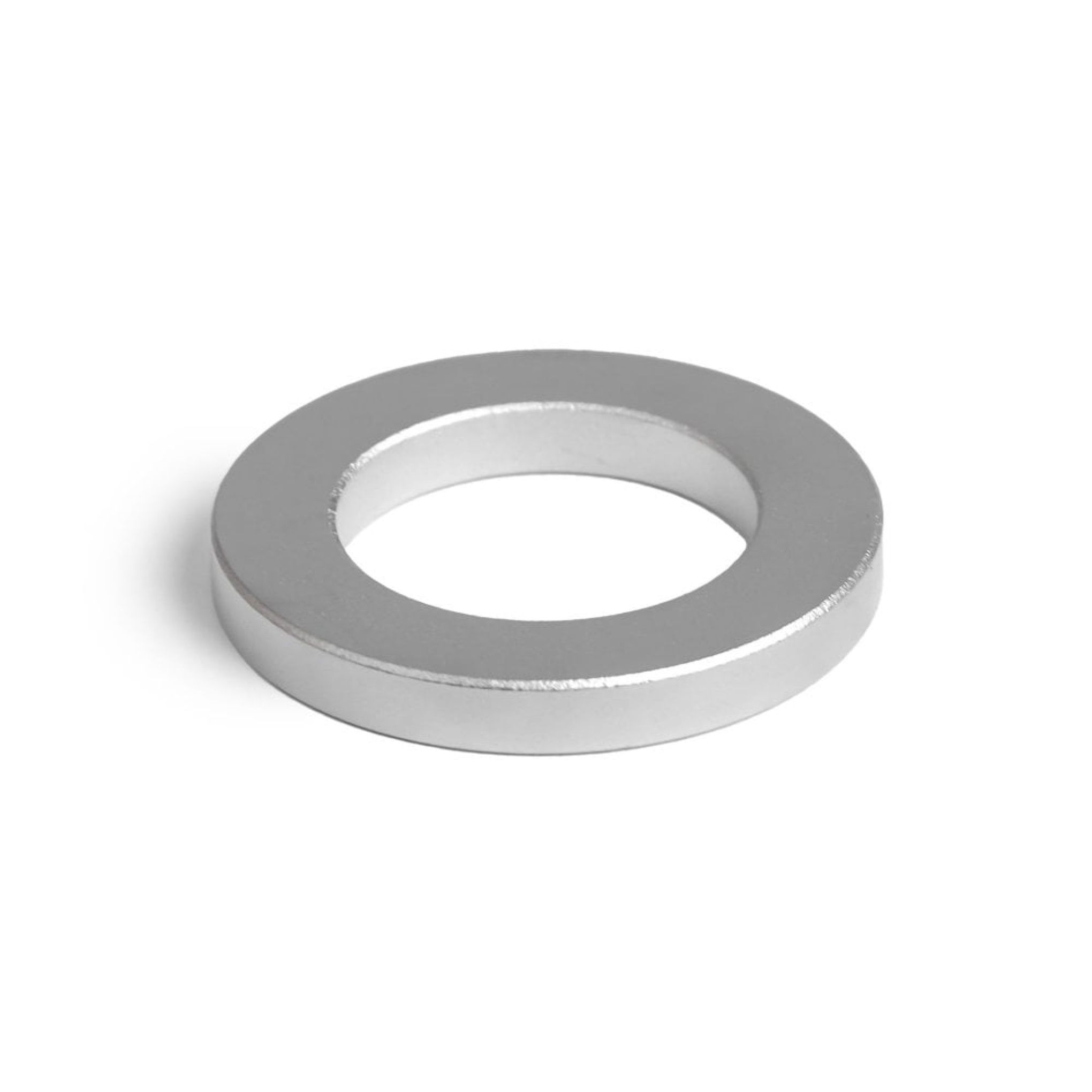

Samarium Cobalt Ring Magnet - 1-9/16 in. O.D x 1 in. I.D x 3/16 in. thick - 25.13lbs Pull
*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*
Large, high-operating temperature samarium cobalt ring magnet with north and south poles on opposing circular faces. Capable of operating in temperatures up to 300 degrees Celsius.
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
- 40mm outer diameter x 25mm inner diameter x 5mm thick.
- 1.58 in. outer diameter x 0.98 in. inner diameter x 0.2 in. thick.
- +/-0.1mm (0.0004 in.) tolerance.
- Each magnet's north and south pole are on opposite circular faces.
- Each magnet can support a steel weight of up to 11.45kg (25.25lbs) vertically from the magnetic face when in flush contact with a mild steel surface.
- Excellent resistance to demagnetisation.
- Each magnet is coated with three layers of nickel, copper and nickel to improve corrosion resistance and provide a smooth and clean finish.
Samarium cobalt is a type of rare-earth magnet that has the ability to withstand and operate in high temperatures, however they are not as powerful as super-strong neodymium magnets. Because of their high maximum operating temperature they are commonly used in applications such as motors and electric motors, turbo machinery and sensors. Ring magnets are very versatile and are also used in many everyday appliances such as vacuum cleaners plus motors, generators, rotor shafts and more.
