Samarium Cobalt High Tempreature Disc Magnet - 1 in. dia x 13/16 in. - 27.12lbs Pull
*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*

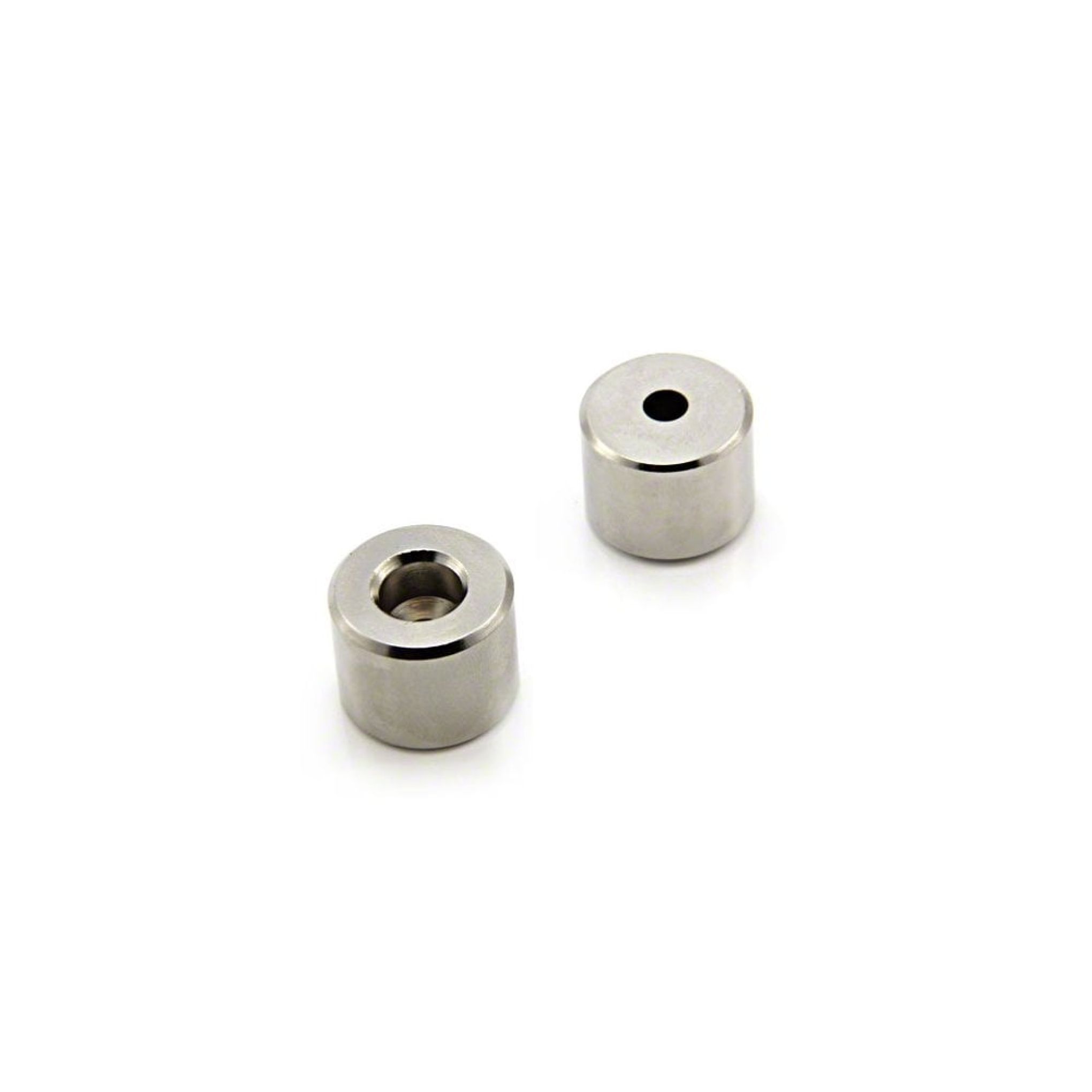

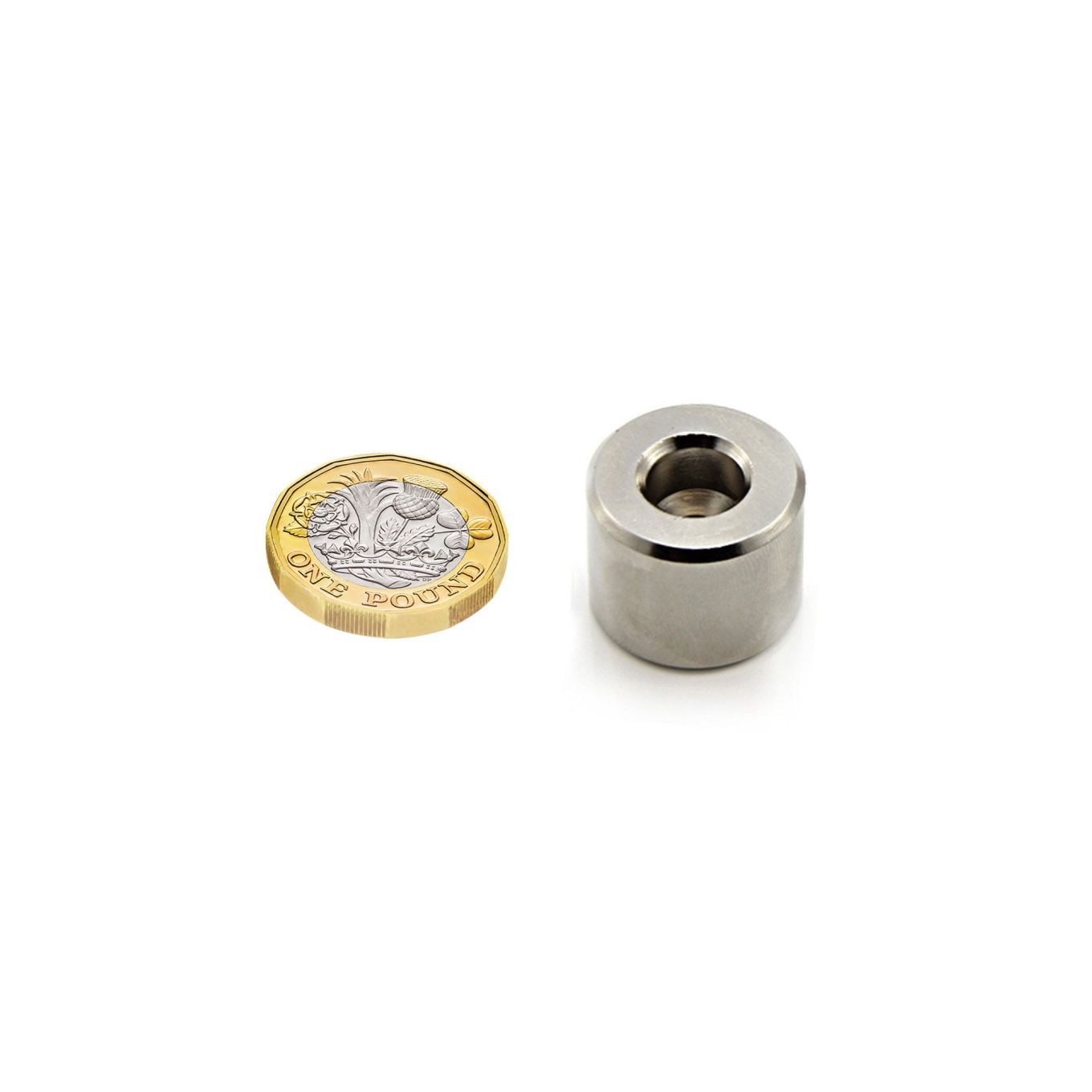

High-performance samarium cobalt (Sm2Co17) cylindrical magnet with counter-bore and 15/64" hole, available with either pole on the counter-bored face.
Pack quantity 1: 1 Magnet
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
- 25mm x 20mm.
- 0.98 in. x 0.79 in.
- +/-0.1mm (0.004 in.) tolerance.
- 6 counter-bored hole.
- North pole on counter-bored face.
- 12.298kg (27.12lbs) pull.
- 572 degrees Fahrenheit operating temperature.
- Resistant to corrosion and demagnetisation.
- Can be fixed in place with a M5 nut head screw.
Samarium cobalt is a type of rare-earth magnet that has the ability to withstand and operate in high temperatures. This particular magnet is the strongest samarium cobalt magnet in our range, however they are not as powerful as super-strong Neodymium magnets. Because of their high maximum operating temperature they are commonly used in applications such as motors and electric motors, turbo machinery and sensors. Counter-bored magnets with opposite poles on the counter-bored face can be used to attract two surfaces or two opposing counter-bored magnets with the same pole on the counter-bored face can be used to create a damping, shock absorbing or repelling effect. These magnets come with a safe-handling warning; because they are so powerful they can be dangerous if not handled carefully. Also available with the south pole on the countersunk face.
