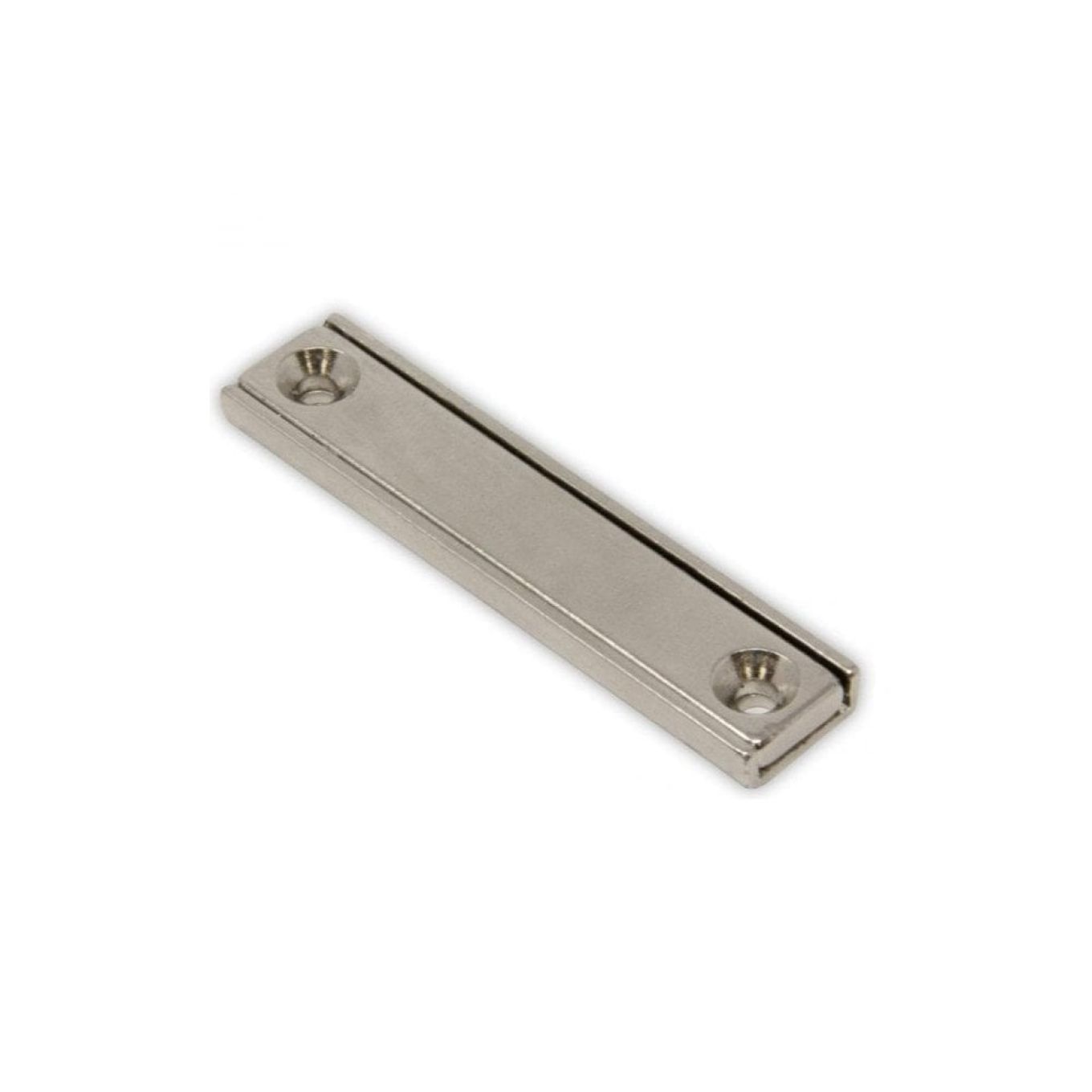

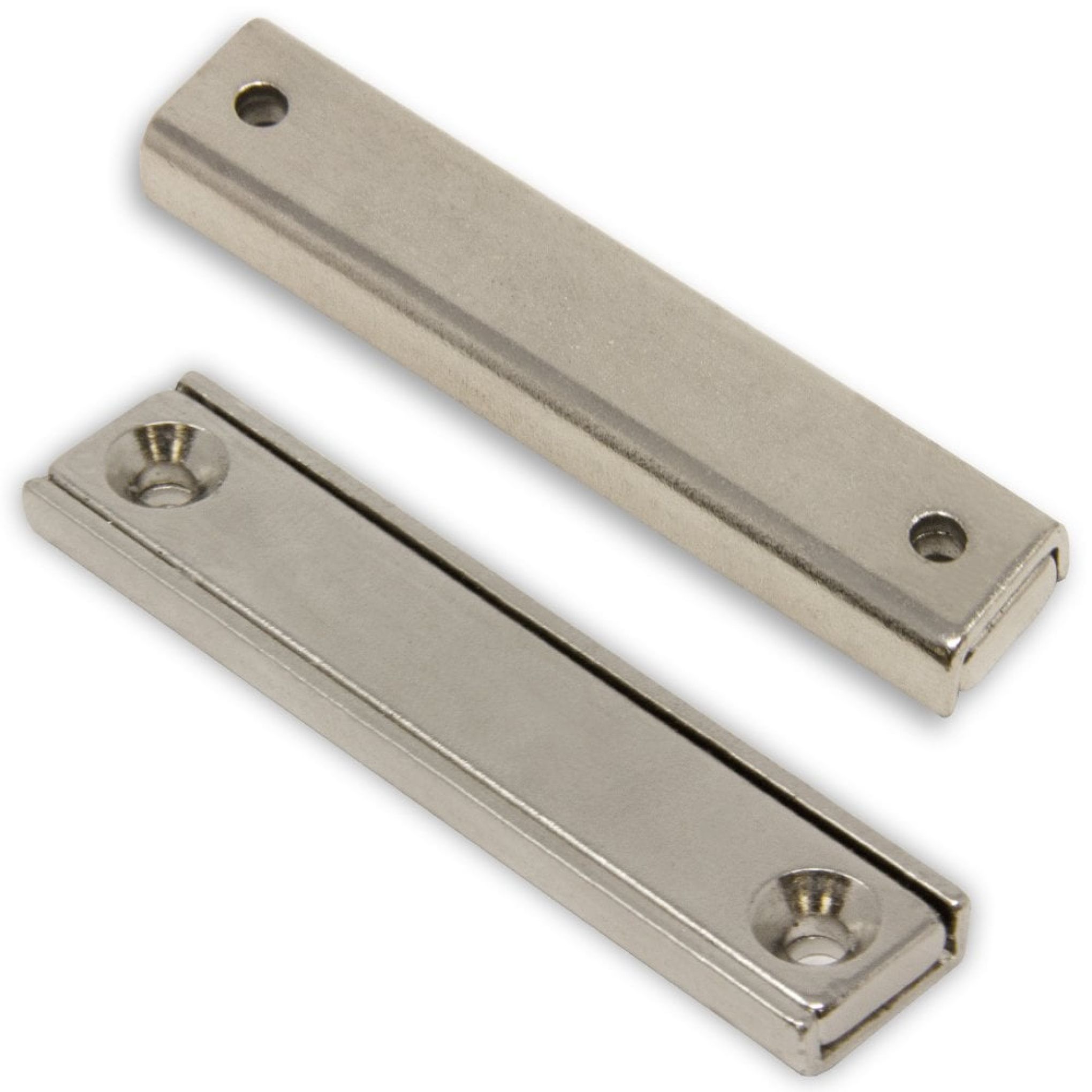

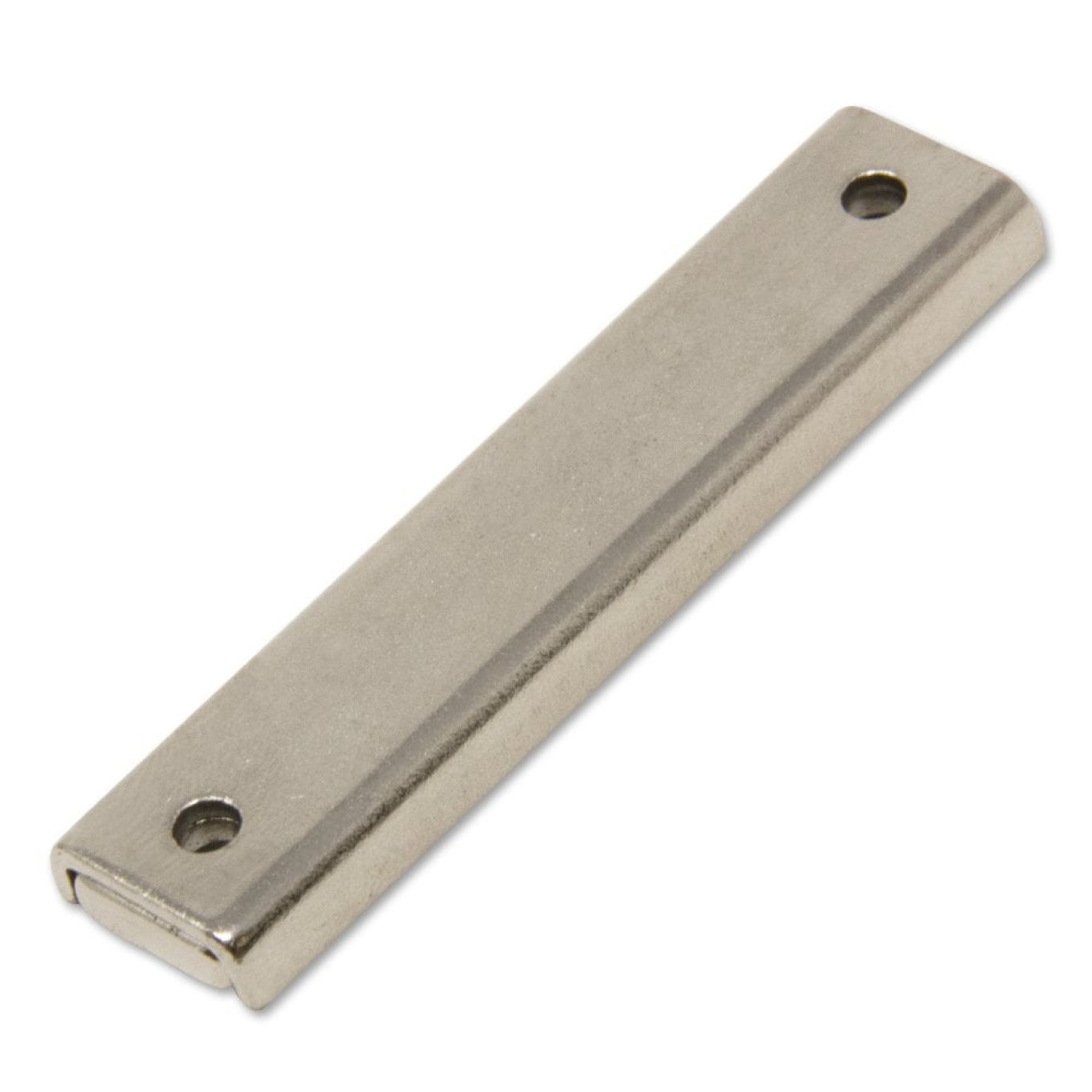

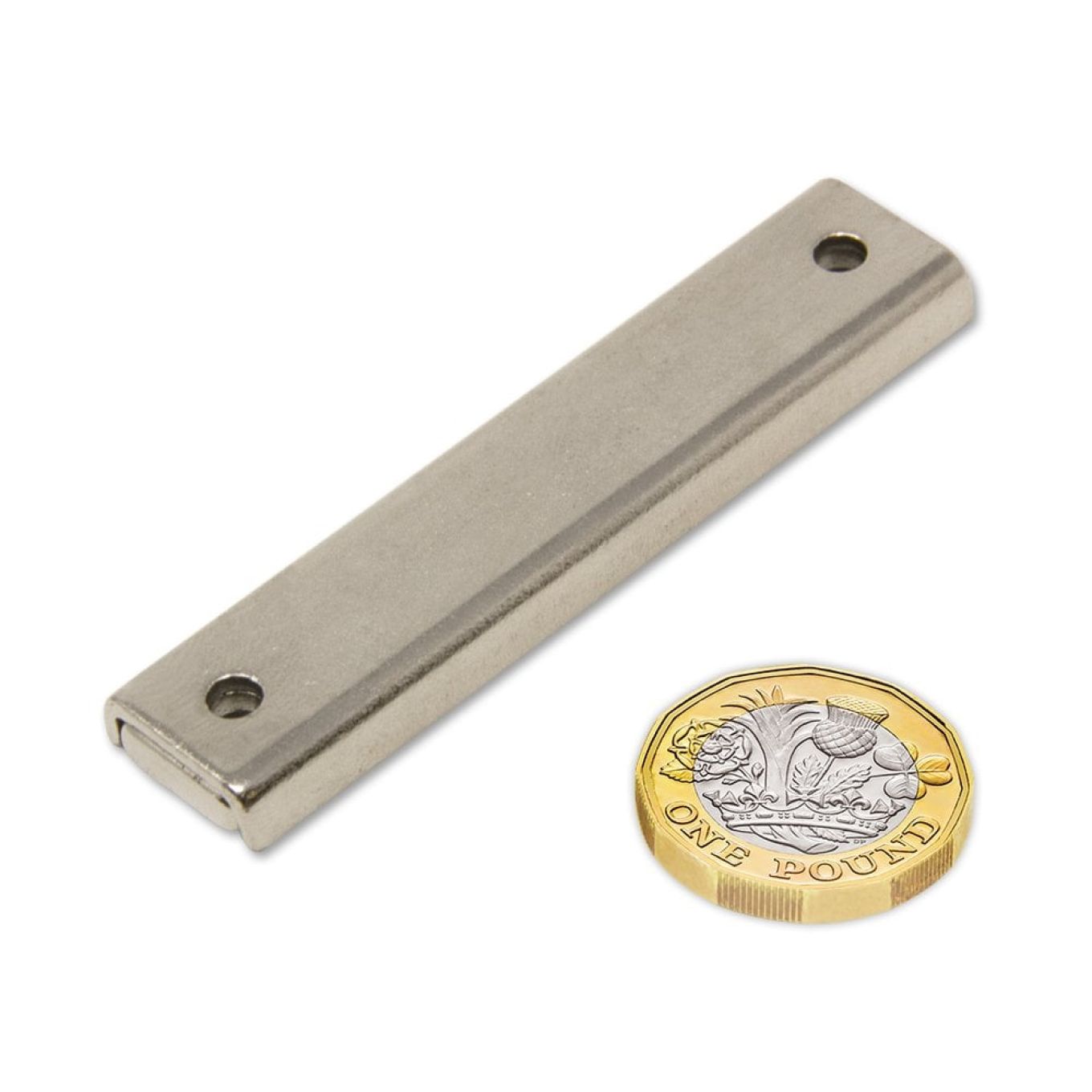

Neodymium Countersunk Channel Magnet - 2-1/4 in. x 1/2 in. x 3/16 in. thick with 2x 1/8 in. holes - 66.15lbs Pull
*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*
Neodymium stainless steel-cased channel magnet with two countersunk holes provides a secure fixing and fantastic value with 66.14lbs pull.
Pack quantity: 1 Channel magnet
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
- 60mm x 13.5mm x 5mm thick with 2x 3.3mm holes
- 2.36 in. x 0.53 in. x 0.2 in. thick with 2x 0.13 in. holes.
- Super strong Neodymium magnet encased inside a stainless steel channel circuit.
- 30kg (66lbs) maximum pull from the magnetic surface when in flush contact with a mild steel surface of equal thickness to the magnet.
- The distance between the countersunk holes is 50mm (1.97 in.).
Channel magnets are extremely versatile, and are used for mounting or securing, in door latches, licence plate holders and signage. The two countersunk holes provide flush and easy securing via two 3.3mm (0.13 in.) screws and the steel channel protects the magnet from damage during daily usage. With 30kg (66.15lbs) (66.15lbs) pull, these magnets are extremely good value for money.
