N48 Neodymium Wind Turbine Magnet - 2-9/16 in. x (44-32) x 5/8 in. - 123.48lbs Pull
*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*

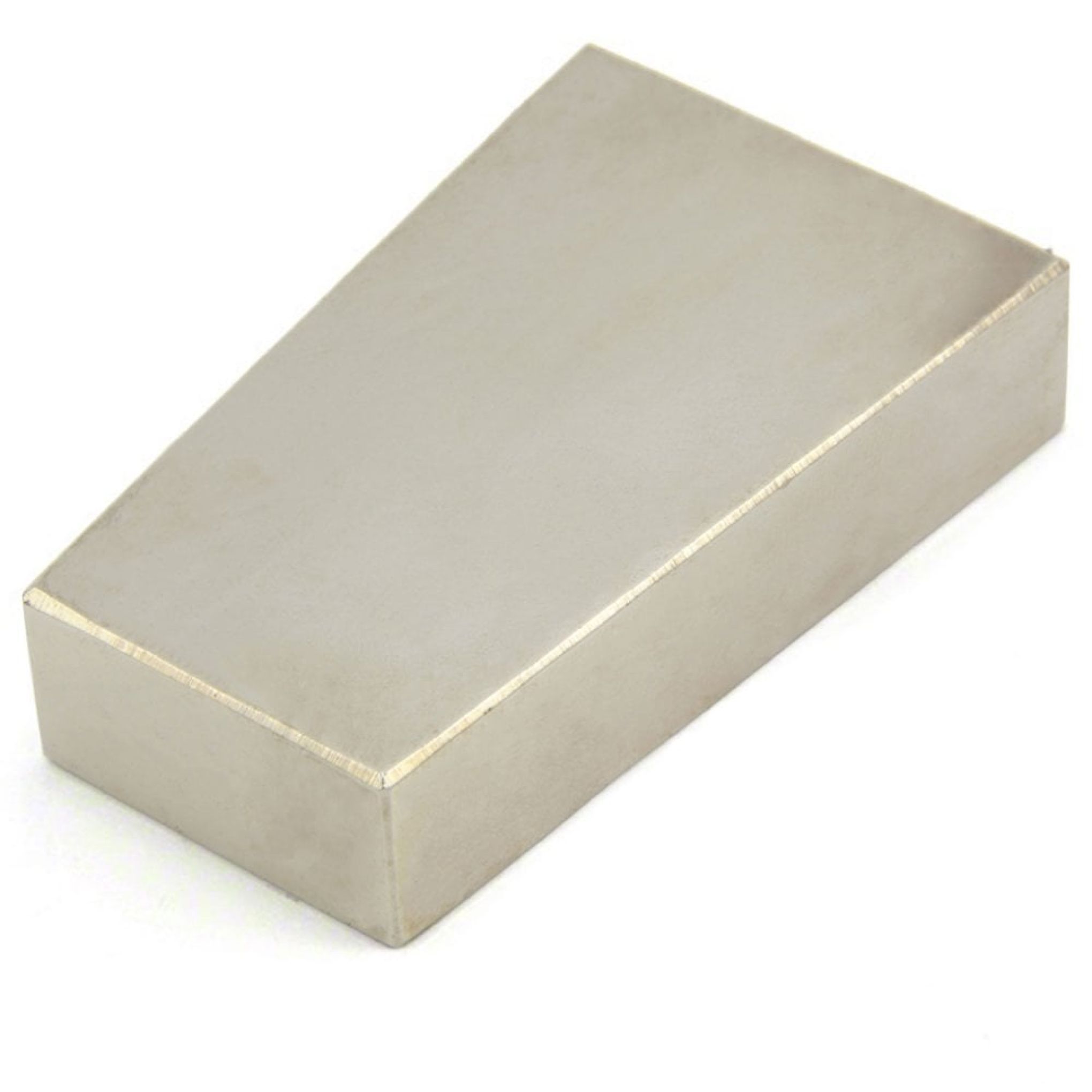

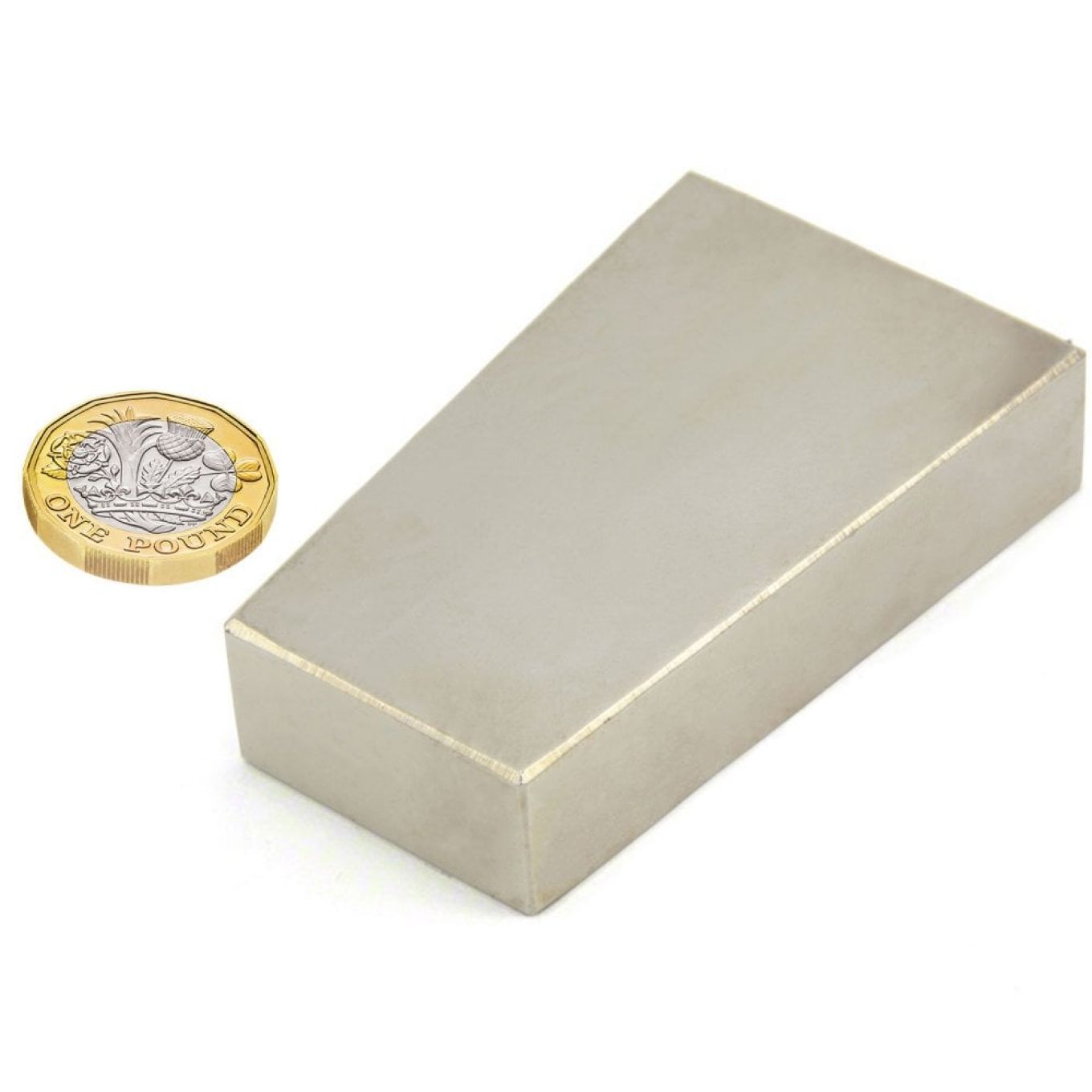

Super-strong Neodymium (N48) trapezoid magnet made from one of the strongest magnetic materials available to buy. Ideal for building wind turbines and generators.
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
- 70mm x 44mm - 32mm x 16mm thick.
- 2.76 in. x 1.7 in. - 1.26 in. x 0.63 in. thick.
- +/-0.1mm (0.004 in.) tolerance.
- Each magnet's north and south pole are on opposite 70mm x 44-32 faces.
- Each magnet can support a steel weight of up to 56kg (123.48lbs) (123.48lbs) vertically from the magnetic face when in flush contact with a mild steel surface.
- Excellent resistance to demagnetisation.
- Coated with three layers of nickel, copper and nickel to reduce corrosion and provide a smooth and clean finish.
This unique trapezoid shape magnet has been specially designed so that 12 of these magnets will fit into a 300mm (11.81 in.) (11.81 in.) diameter steel disc with 10mm (0.39 in.) between each magnet on the internal diameter. As each magnet produces an astonishing pull of 56kg (123.48lbs) (123.48lbs) they are commonly used in large scale engineering projects such as wind turbines and generators. Each magnet is coated with three layers of nickel, copper and nickel to reduce corrosion and provide a smooth and clean finish. These magnets should only be handled by people who are used to handling strong magnets and once a thorough risk assessment has been undertaken as they will easily crush trapped fingers causing serious injury.
