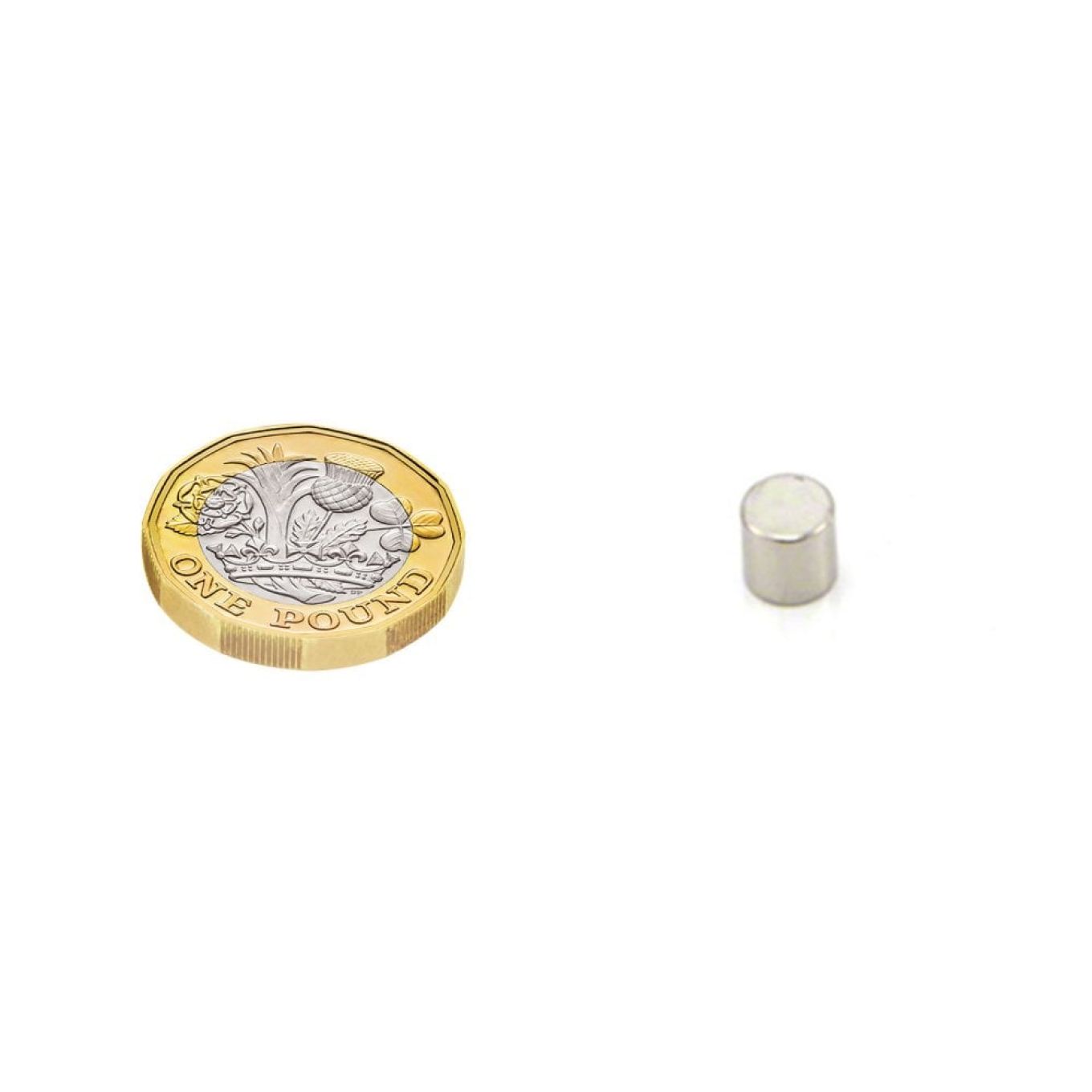

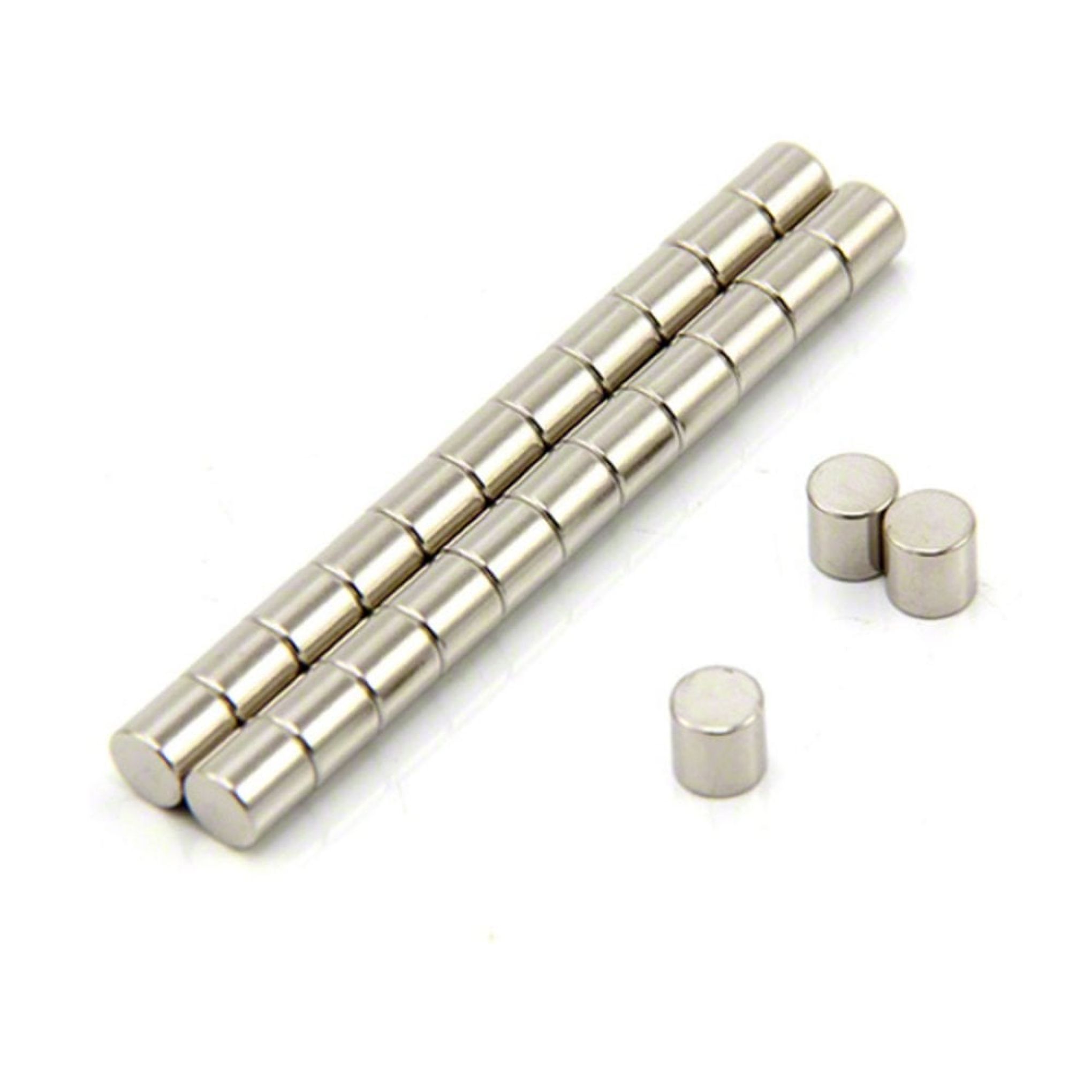

N42SH Neodymium Disc Magnet - 1/4 in. dia x 1/4 in. thick - 3.08lbs Pull
*Measurements have been rounded to the nearest fraction inch - please check the product description for an accurate measurement.*
Small, high-operating temperature Neodymium magnets, capable of operating in temperatures up to 120 degrees Celsius.
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
- 6mm dia x 6mm thick
- 1/4 in. dia x 1/4 in. thick
- +/-0.004" tolerance
- North-South poles on opposite faces
- 3.08lbs pull
- 248 degrees Fahrenheit operating temperature
- Coated with three layers of nickel, copper and nickel to reduce corrosion and provide a smooth finish
These Neodymium disc magnets may be small but they have an astonishing pull of 3.08lbs and unlike regular grade Neodymium, this special high-temperature material can operate in temperatures up to 248 degrees Fahrenheit. Because of their high maximum operating temperature they are commonly used in applications such as motors and electric motors, turbo machinery and sensors. They also have many uses in engineering and manufacturing where size and strength is important, two Neodymium magnets will attract each other with twice the force that they attract steel.
