N42 Neodymium Top Hat Magnet - 5/16 in. dia x 3/16 in. thick - 2.2lbs Pull
*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*

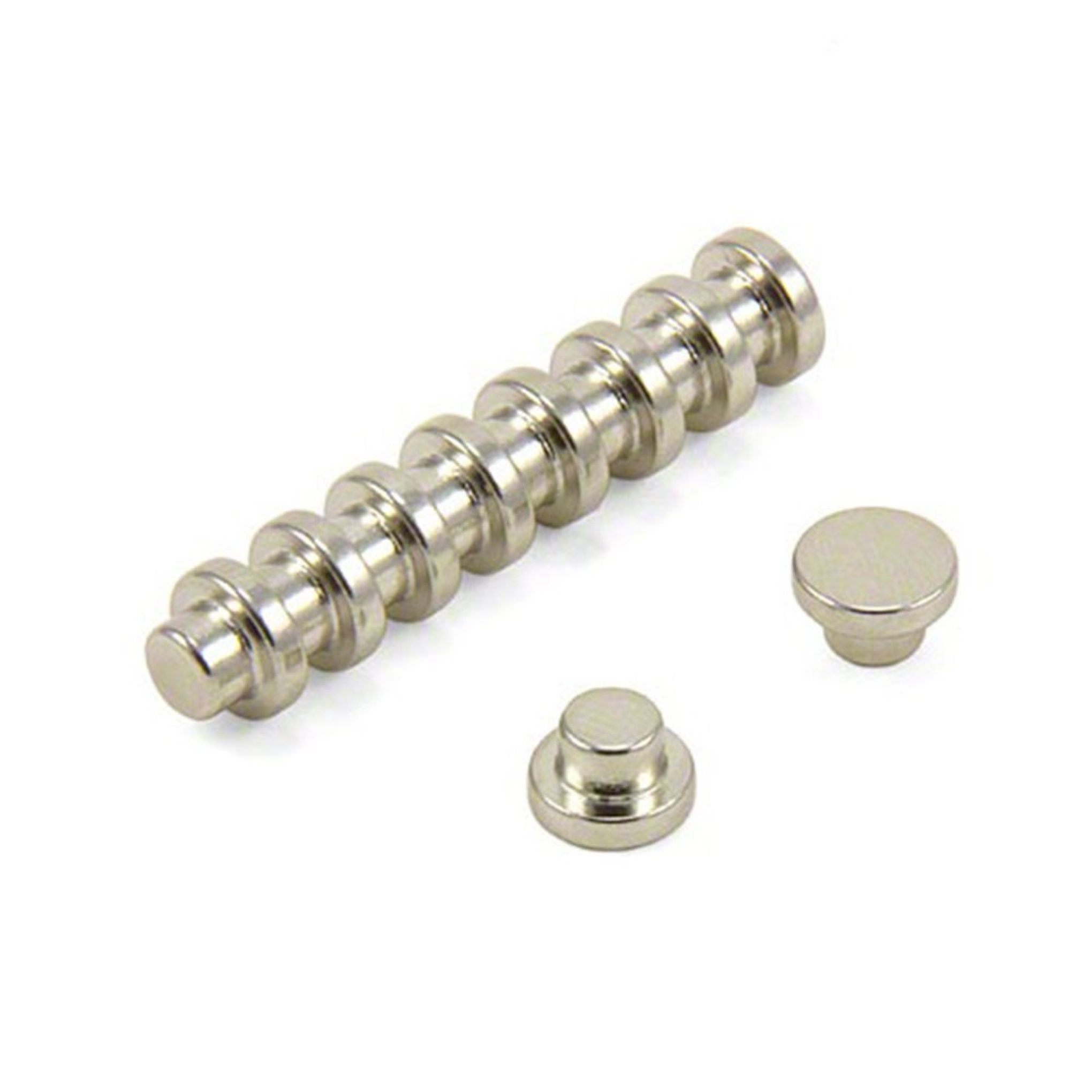

A unique design, these small magnets look like a top hat with a wider diameter on one magnetic face and a smaller diameter on the opposite face. They are widely used when a flush magnetic face is required.
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:

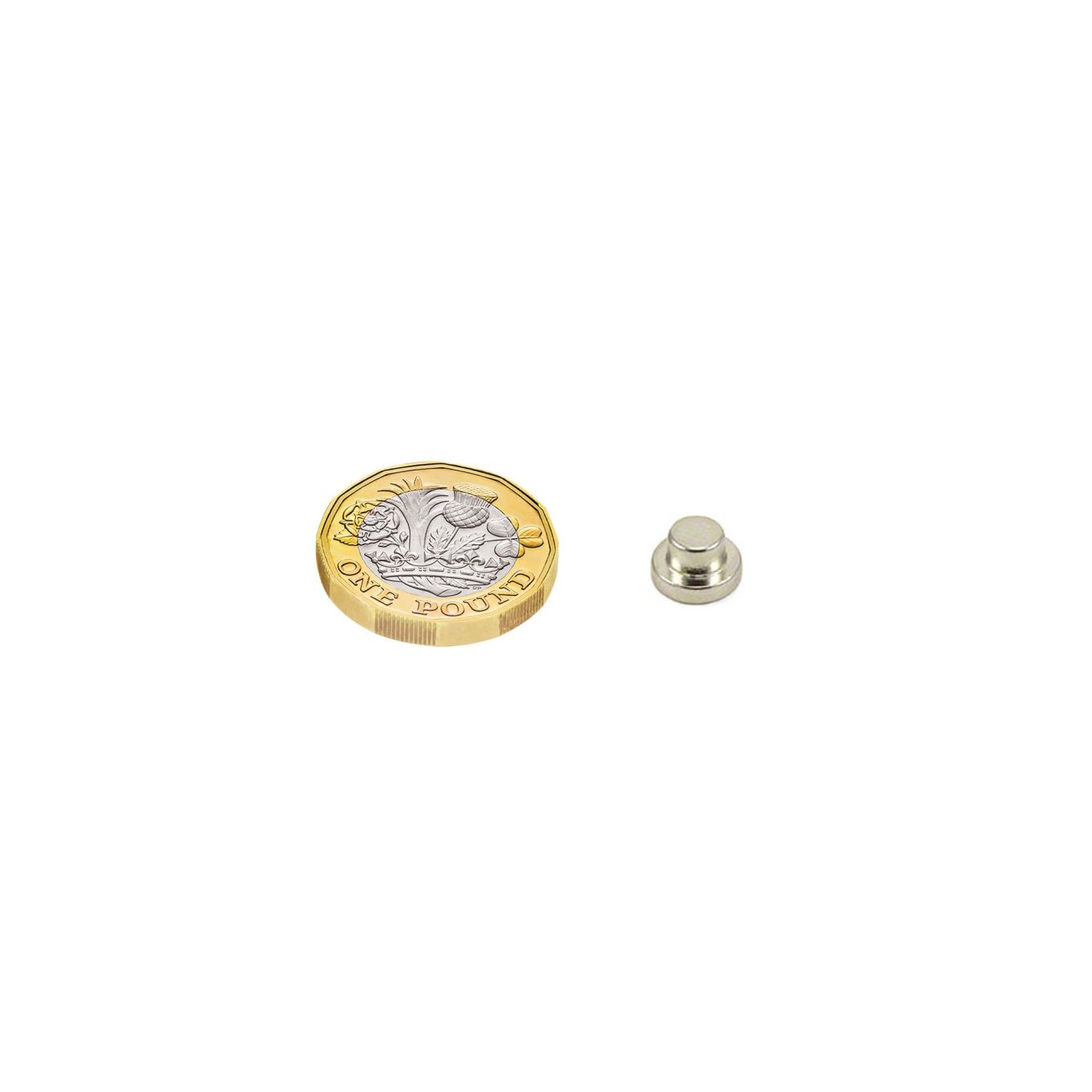

- The overall measurements are 8mm diameter x 5mm thick with the smaller section measuring 5mm in diameter by 3mm thick.
- The overall measurements are 0.32 in. diameter x 0.2 in. thick with the smaller section measuring 0.2 in. in diameter by 0.12 in. thick.
- Each magnet's north pole is on the smaller face while the south pole is on the larger face.
- Excellent resistance to demagnetisation.
- Each magnet is coated with three layers of nickel, copper and nickel to give superior corrosion resistance and provide a smooth and clean finish.
These uniquely shaped strong neodymium magnets are used in applications where a flush magnetic surface is required. The smaller section of the magnet can be pushed through a hole and is kept in place by the larger diameter face. These magnets are widely used in point of sale display stands and advertising displays.
