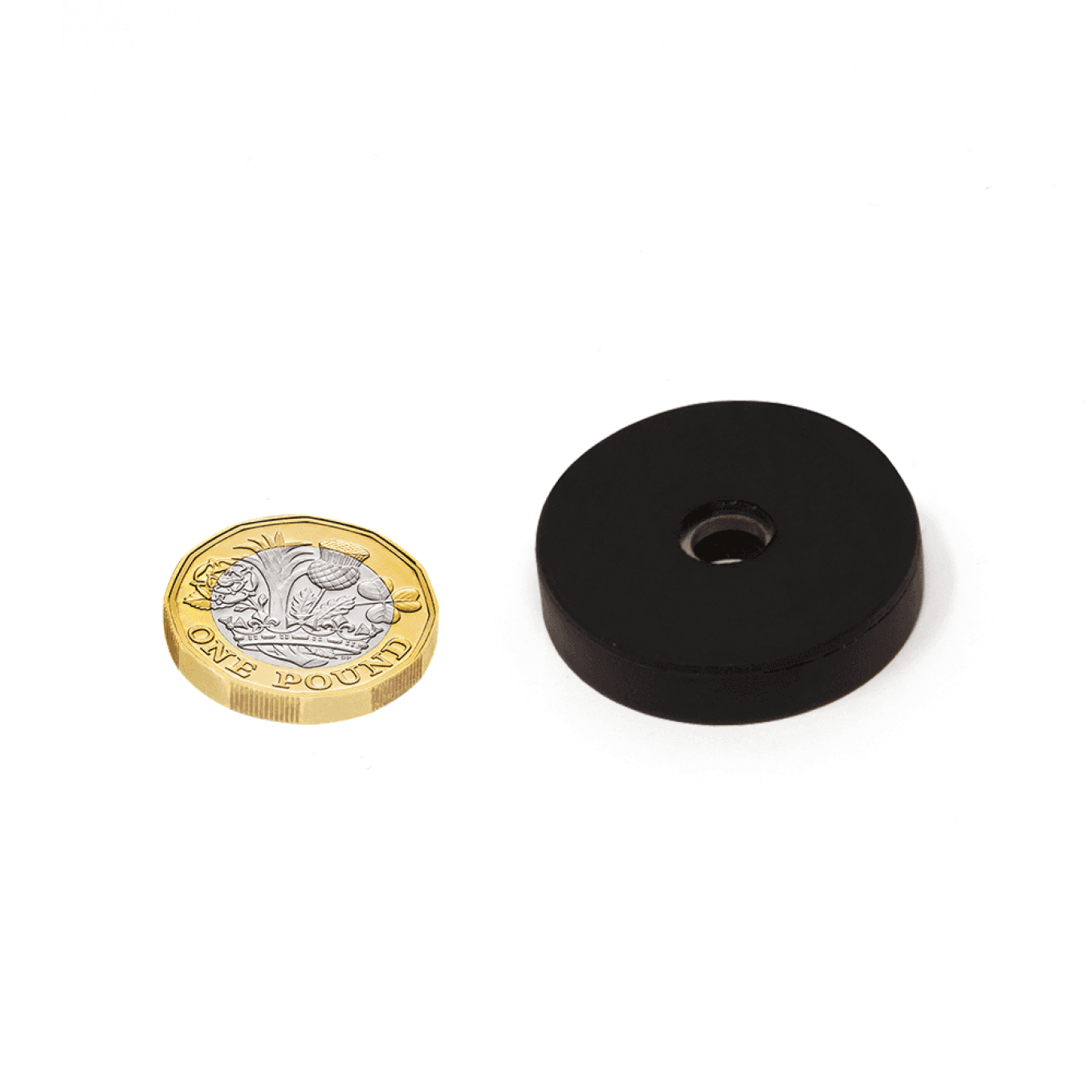

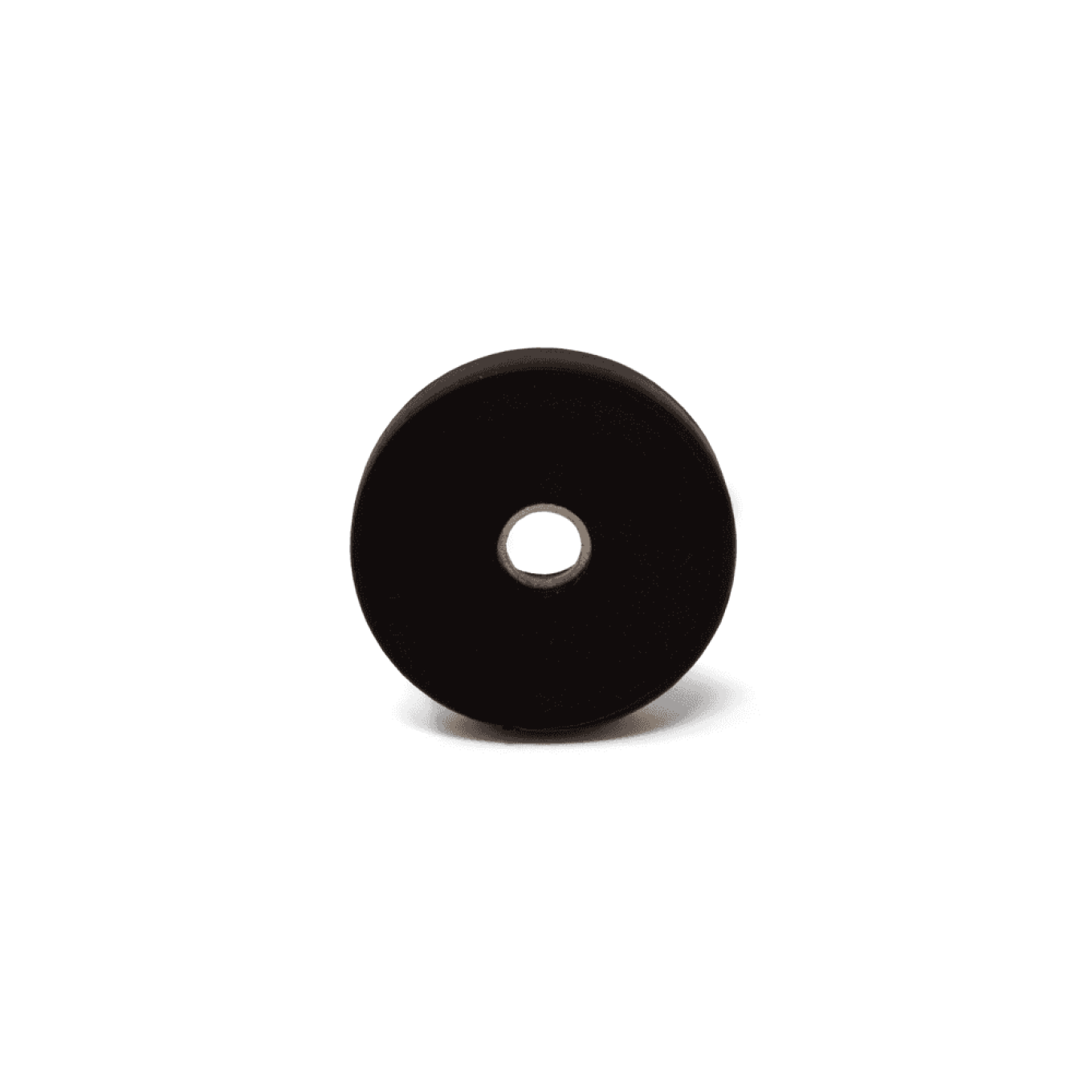

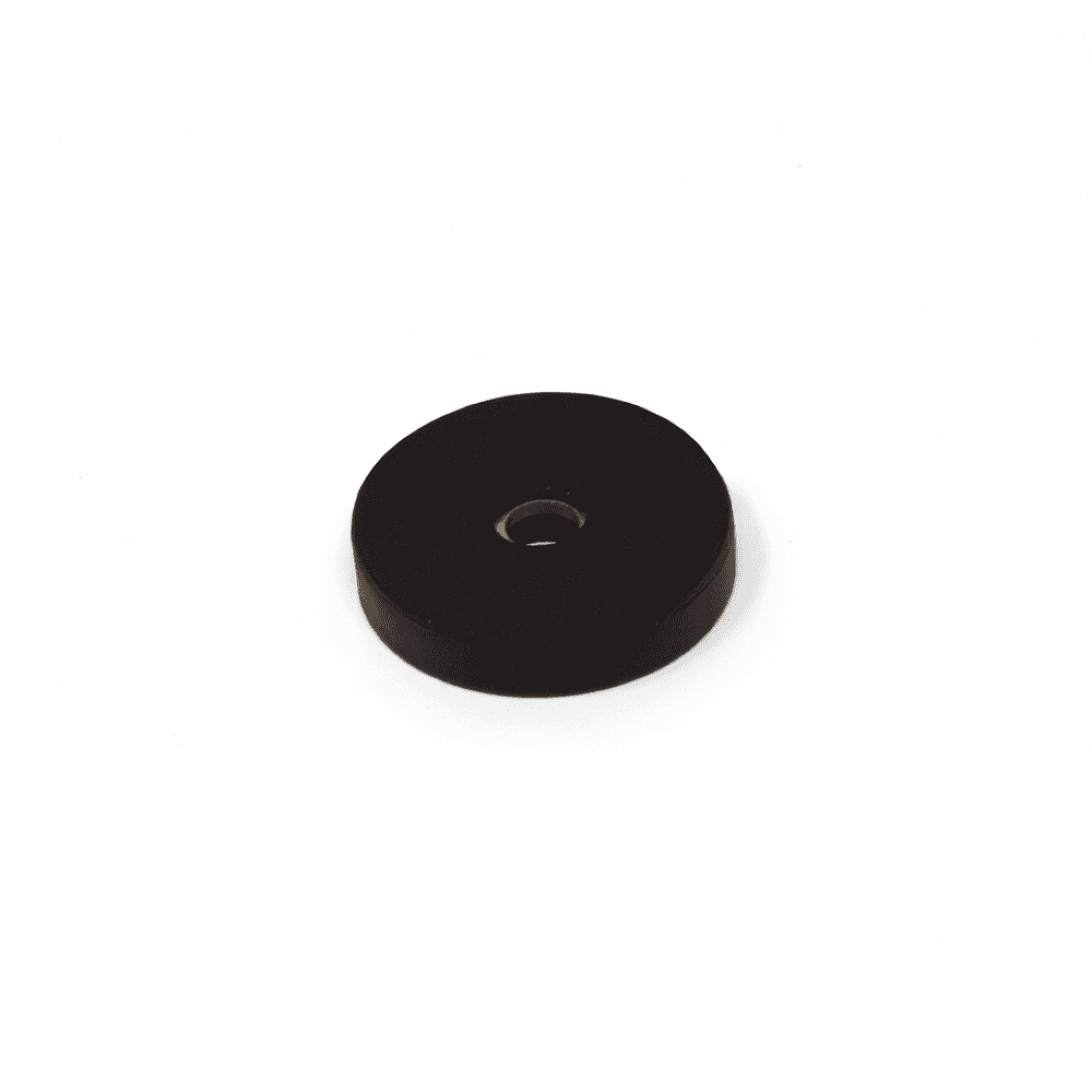

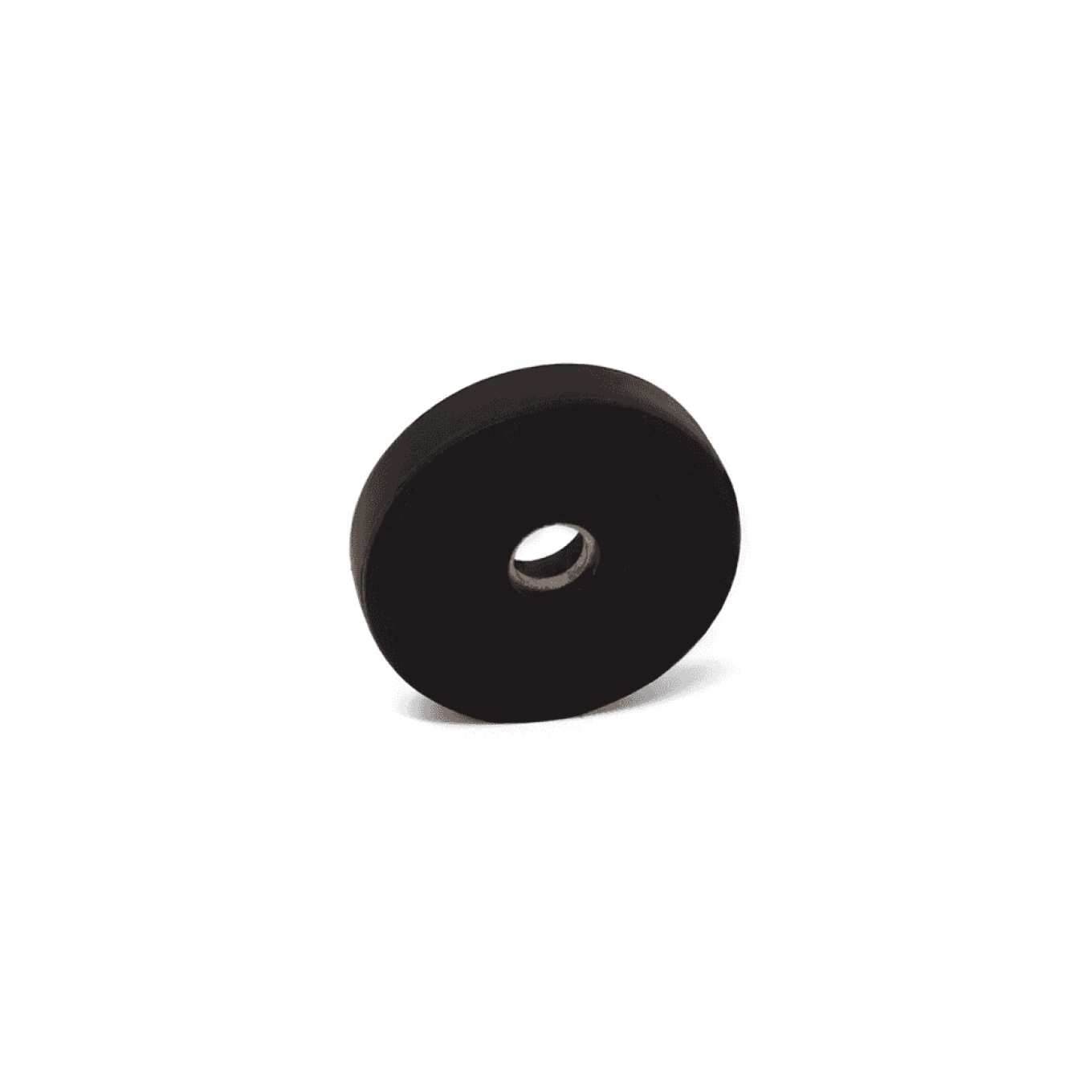

N42 Neodymium Rubber Coated in.2 Pole in. Pot Magnet - 1-3/16 in. dia x 1/4 in. thick - 21.38lbs Pull
*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*
These unique rubber coated clamping magnets are manufactured with their north and south pole on the same face giving them an incredible 21.38lbs clamping force and an unrivalled 9.9lbs shear force against a steel surface.
Pack quantity 1: 1 Pot magnet
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
- 31mm diameter x 6mm thick with a 4mm diameter counterbored hole for fixing.
- 1.22 in. diameter x 0.24 in. thick with a 0.16 in. diameter counterbored hole for fixing.
- +/-0.1mm (0.004 in.) tolerance.
- Each magnet is counterbored on the magnetic face.
- Each magnet's has both its north and south poles on the magnetic face.
- Each magnet can support 9.7kg (21.39lbs) pull vertically from the magnetic face when in flush contact with a mild steel surface and 4.5kg (9.92lbs) in a shear position.
- Rubber-coated to increase friction and prevent marking other contact surfaces.
- Can be fixed in place with our 6mm diameter thread countersunk screws.
These rubber coated magnets are designed to support the maximum amount of weight possible in a shear position. A combination of the premium rubber coating and the unique pole arrangement with both poles on the magnetic face give these magnets their unbeatable clamping performance. However, as these magnets have both poles on one face they are not designed to attract or repel another magnet and should always be used against a steel surface. These magnets are ideal for securing items in a shear position or for holding doors and gates open.
