N42 Neodymium Rubber Coated Countersunk Disc Magnet - 1 in. dia x 9/32 in. thick x 9/32 in. hole - 14.11lbs
*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*

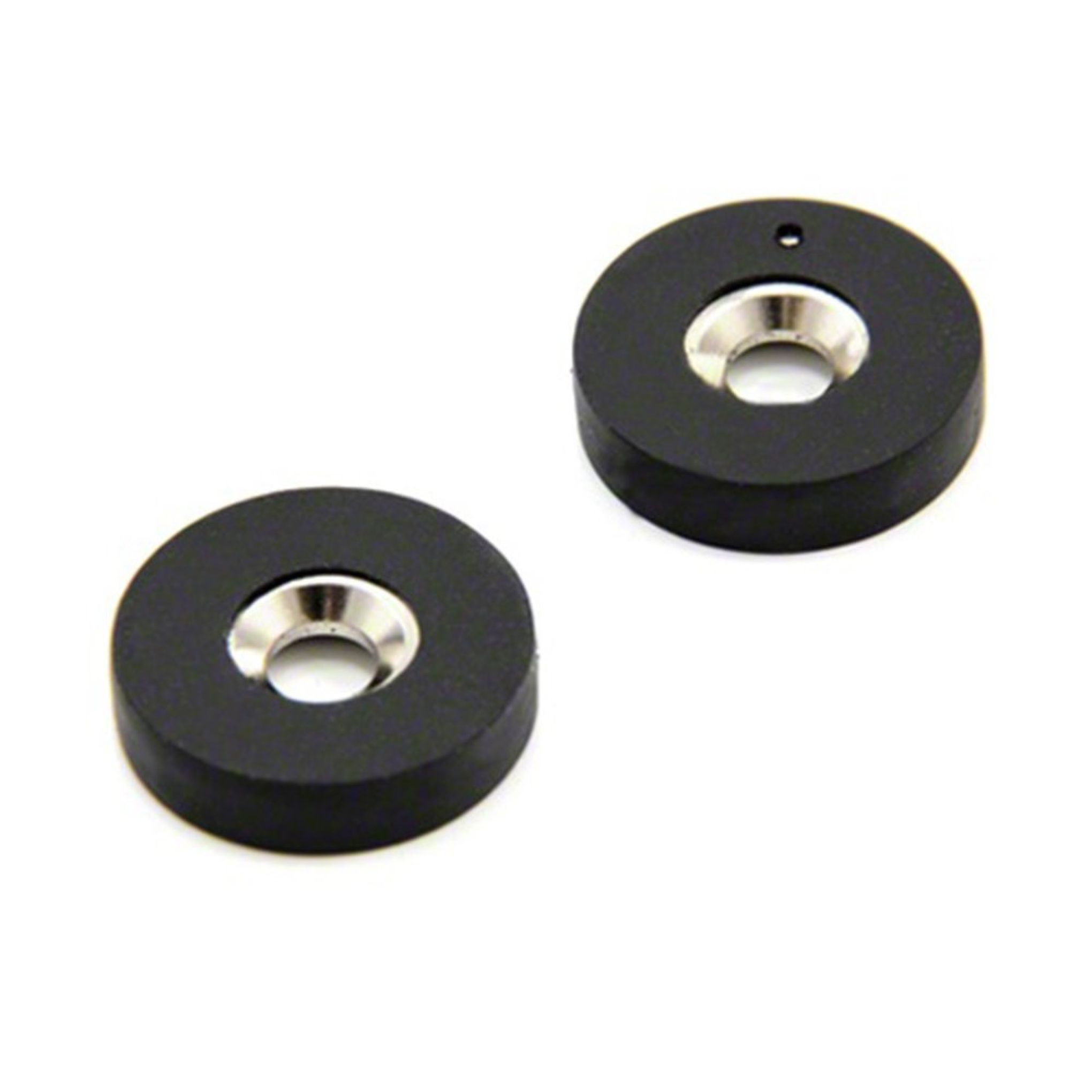

High-performance, rubber-coated countersunk Neodymium (N42) magnet with a countersunk hole on both sides. Compact but incredibly strong.

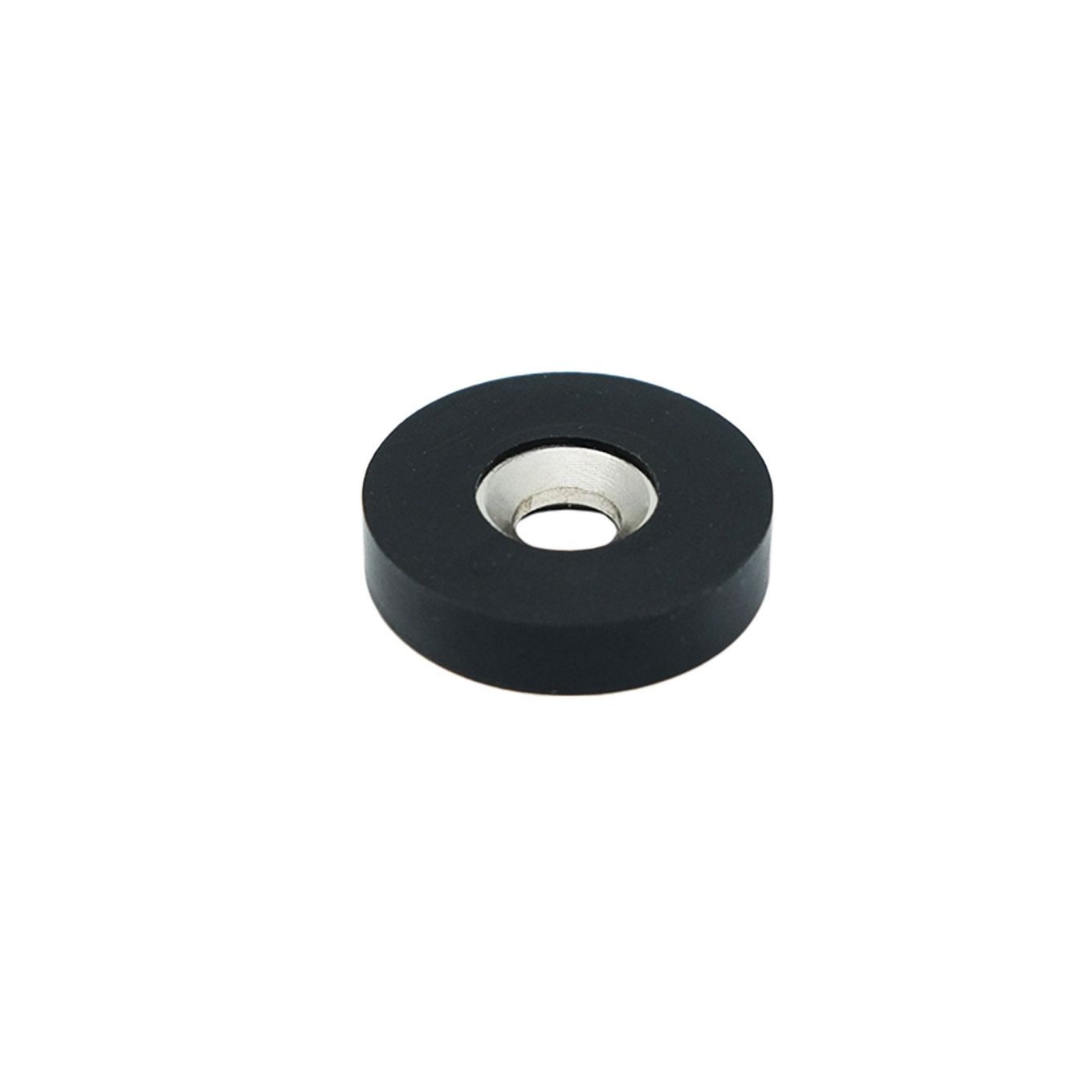

Please note: The image of this product shows the top and the bottom of 1 magnet rather than 2 magnets; A pack quantity of 1 only contains 1 magnet.
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:

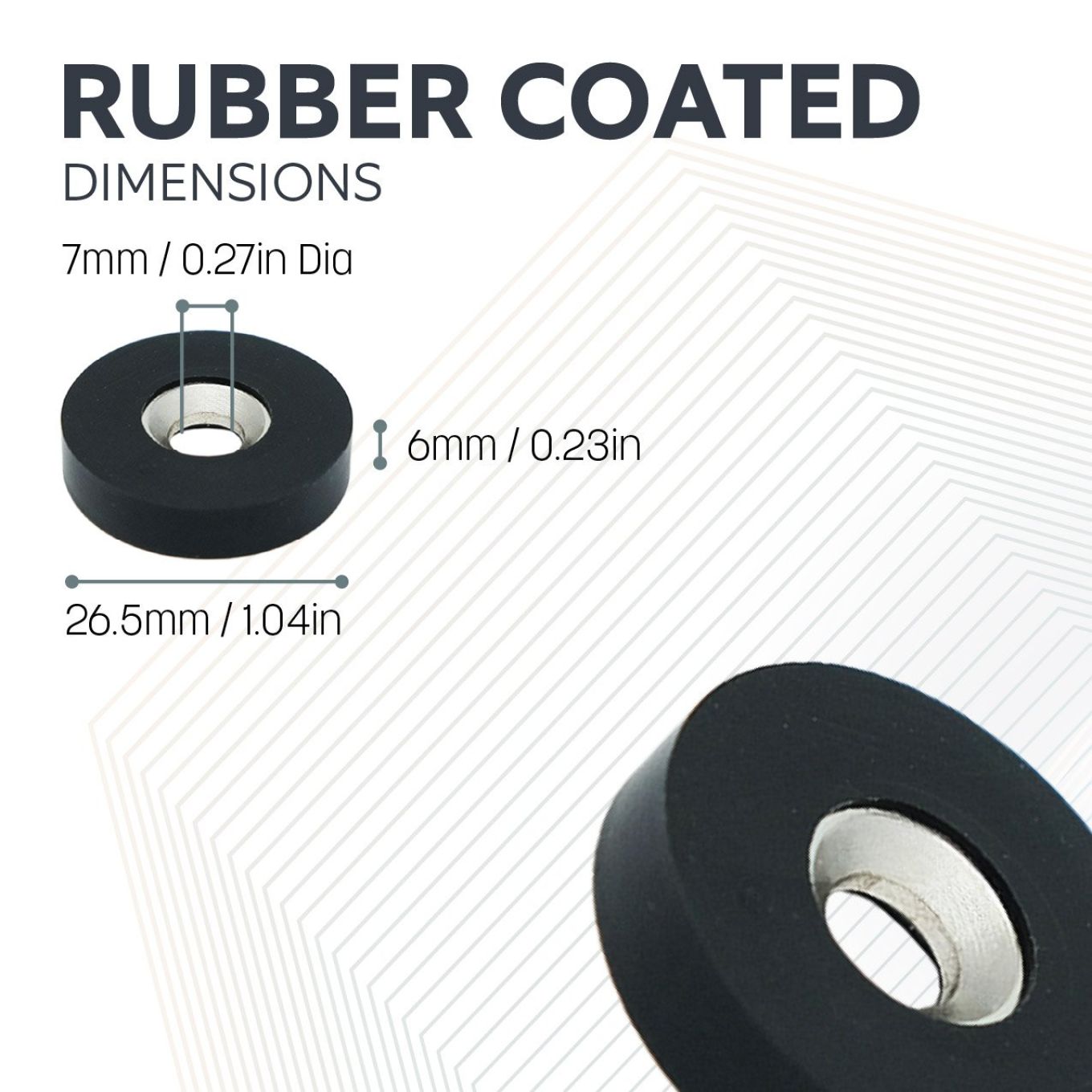

- 26.5mm diameter x 6mm thick with a 7mm diameter countersunk hole for fixing.
- 1.04 in. diameter x 0.24 in. thick with a 0.28 in. diameter countersunk hole for fixing.
- +/-0.1mm (0.0004 in.) tolerance.
- Each magnet has its north pole on the countersunk face.

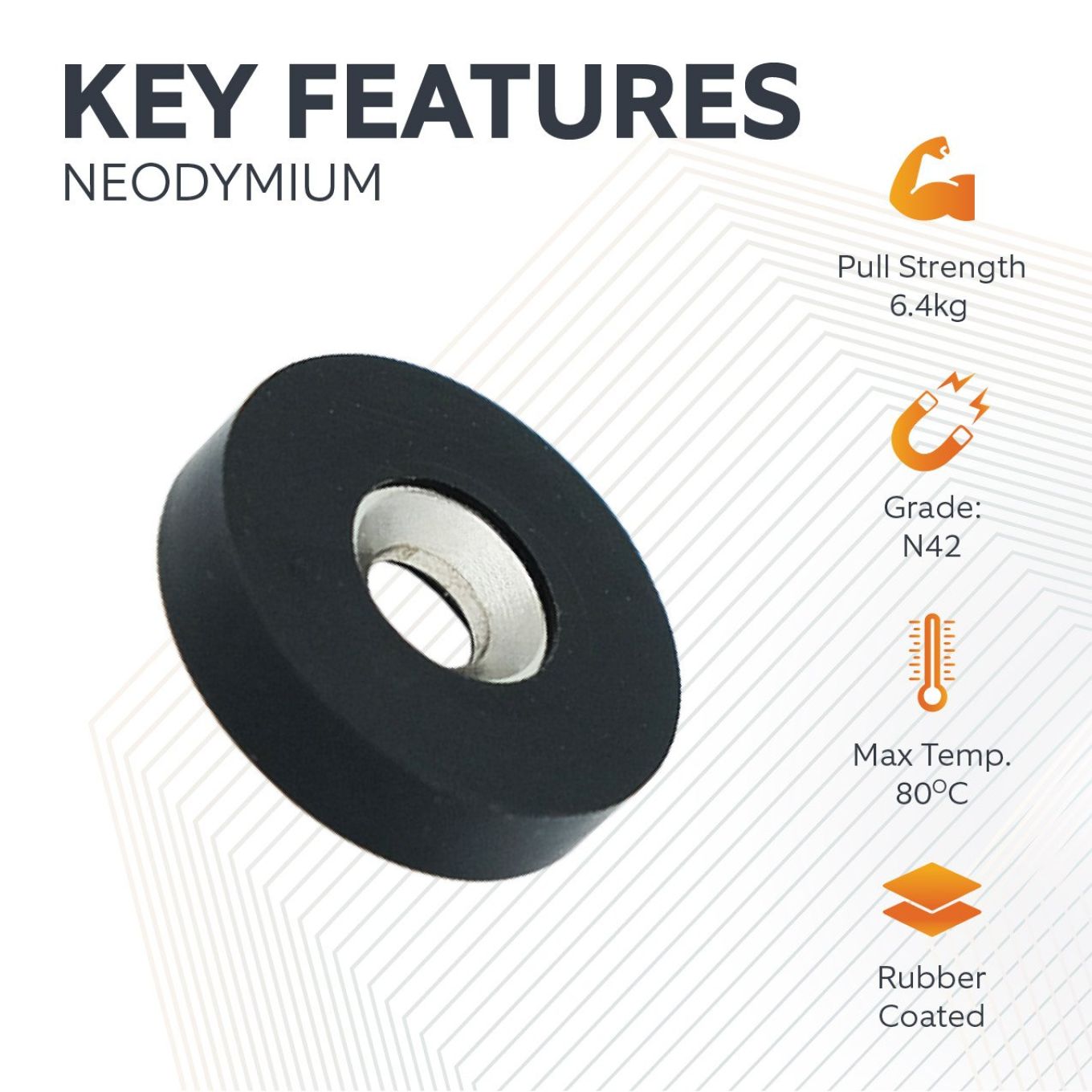

- Each magnet can support 6.4kg (14.11lbs) pull vertically from the magnetic face when in flush contact with a mild steel surface.
- Rubber-coated to increase friction and prevent marking other contact surfaces.
- Can be fixed in place with our 6mm (0.25 in.) diameter countersunk screws.
Ideal for furniture fixings, hanging artwork and keeping doors and drawers closed, countersunk magnets have a central hole which allows them to be fixed to non-magnetic surfaces with a screw. Because these magnets have a rubber-coating they are ideal for using to attract fragile or easily marked surfaces, the rubber coating increases friction, softens impacts and prevents marking. Countersunk magnets with opposite poles on the countersunk face can be used to attract two surfaces or two opposing countersunk magnets with the same pole on the countersunk face can be used to create a damping, shock absorbing or repelling effect. Also available with the south pole on the countersunk face.
