N42 Neodymium Rectangular Magnet - 7/8 in. x 3/8 in. x 1/16 in. thick - 5.73lbs Pull
*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*

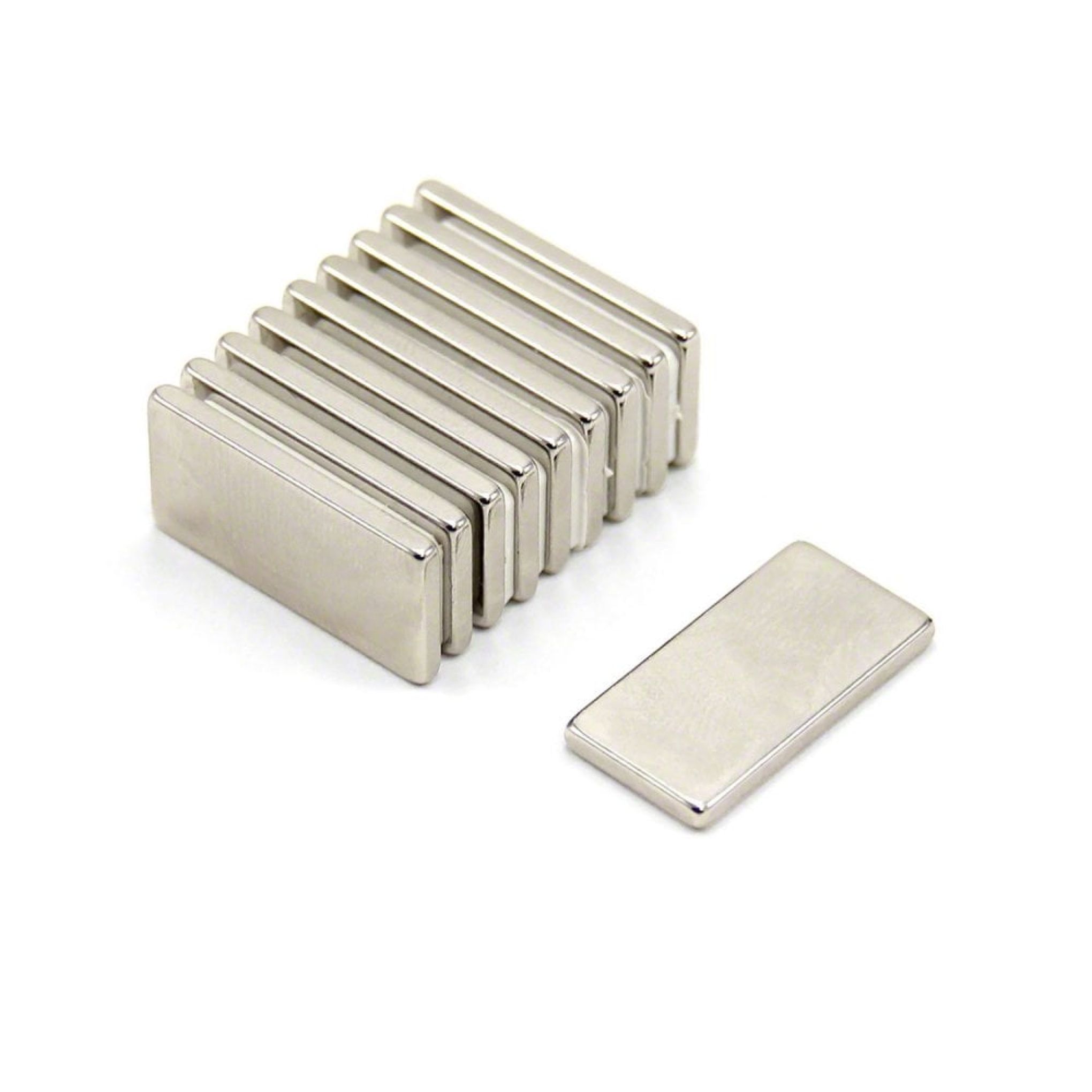

Thin, strong rectangular neodymium magnets twice as long as they are wide. Ideal for model engineering and DIY projects.
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
- 22mm x 11mm x 2mm thick.
- 0.87 in. x 0.43 in. x 0.08 in. thick.
- +/-0.1mm (0.0004 in.) tolerance.
- Each magnet's north and south pole are on opposite 22mm (0.87 in.) x 11mm (0.4 in.) faces.
- Each magnet can support a steel weight of up to 2.6kg (5.73lbs) vertically from the magnetic face when in flush contact with a mild steel surface.
- Excellent resistance to demagnetisation.
- Each magnet is coated with three layers of nickel, copper and nickel to give superior corrosion resistance and provide a smooth and clean finish.
These thin rectangular neodymium magnets produce an incredible 2.6kg (5.73lbs) pull despite their relatively compact size. Each magnet is axially magnetised between the two 22mm (0.87 in.) x 11mm (0.43 in.) faces and each is coated with three layers of nickel, copper and nickel to give superior corrosion resistance and provide a smooth and clean finish. These magnets are really popular among model engineers for creating motors and gearboxes but their size means they can be used for almost any other use. There versatility makes them a great addition to any toolbox.
