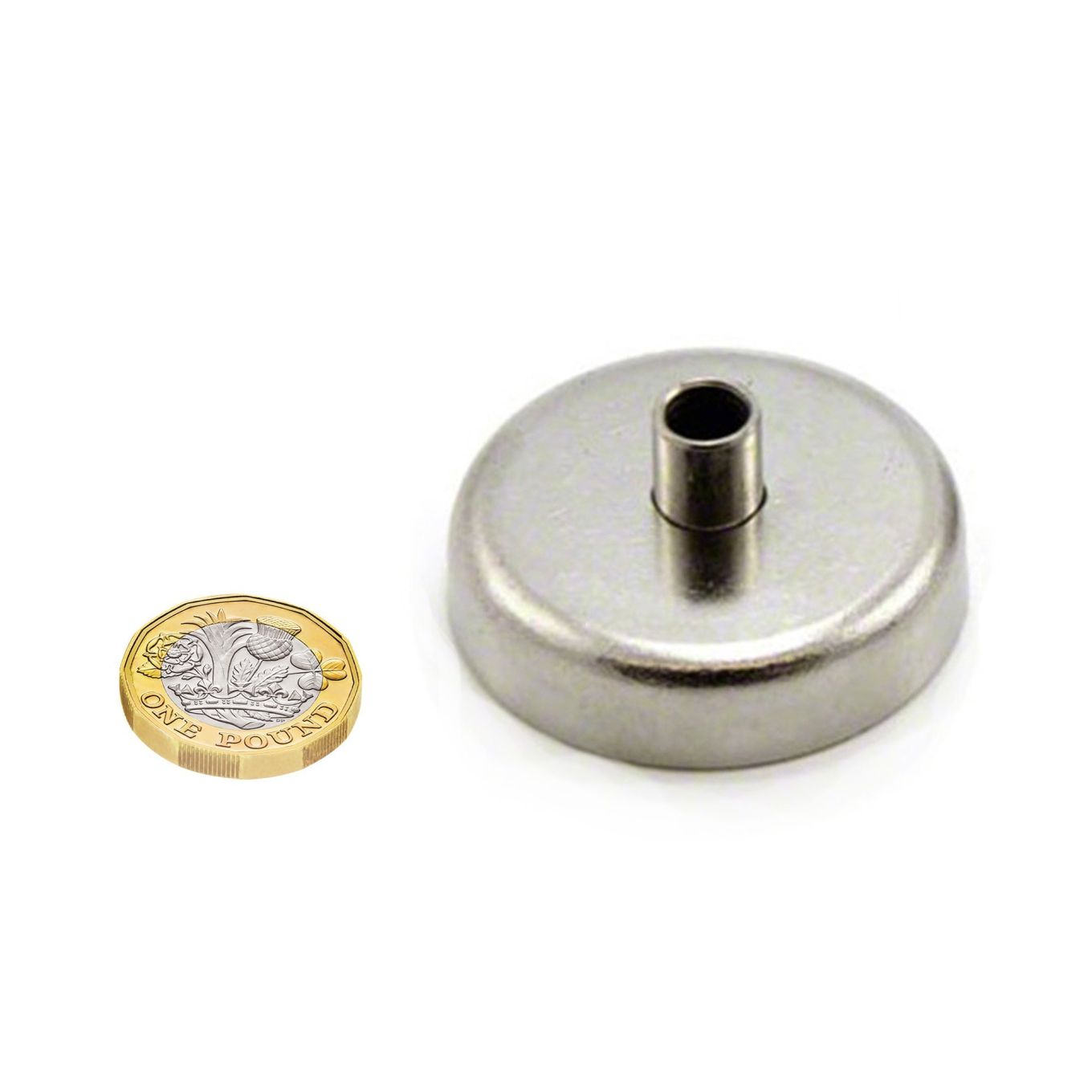

N42 Neodymium Pot Magnet with M8 Thread - 1-7/8 in. dia x 15/16 in. tall - 209.47lbs Pull
*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*
Large, strong Neodymium (N42) pot magnets with a M8 threaded collar on the non-magnetic face. Magnetism is concentrated on one face to provide the maximum holding force.
Pack quantity 1: 1 Pot magnet
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
- 48mm diameter x 24mm tall with a M8 10mm deep threaded collar.
- 1.89 in. diameter x 0.95 in. tall with a M8 0.39 in. deep threaded collar.
- +/-0.1mm (0.0004 in.) tolerance.
- Each magnet can support 95kg (209.48lbs) vertically from the magnetic face when in flush contact with a mild steel surface of equal thickness.
- Coated with three layers of nickel, copper and nickel to reduce corrosion and provide a smooth finish.
- M8 threaded collar for assembly.

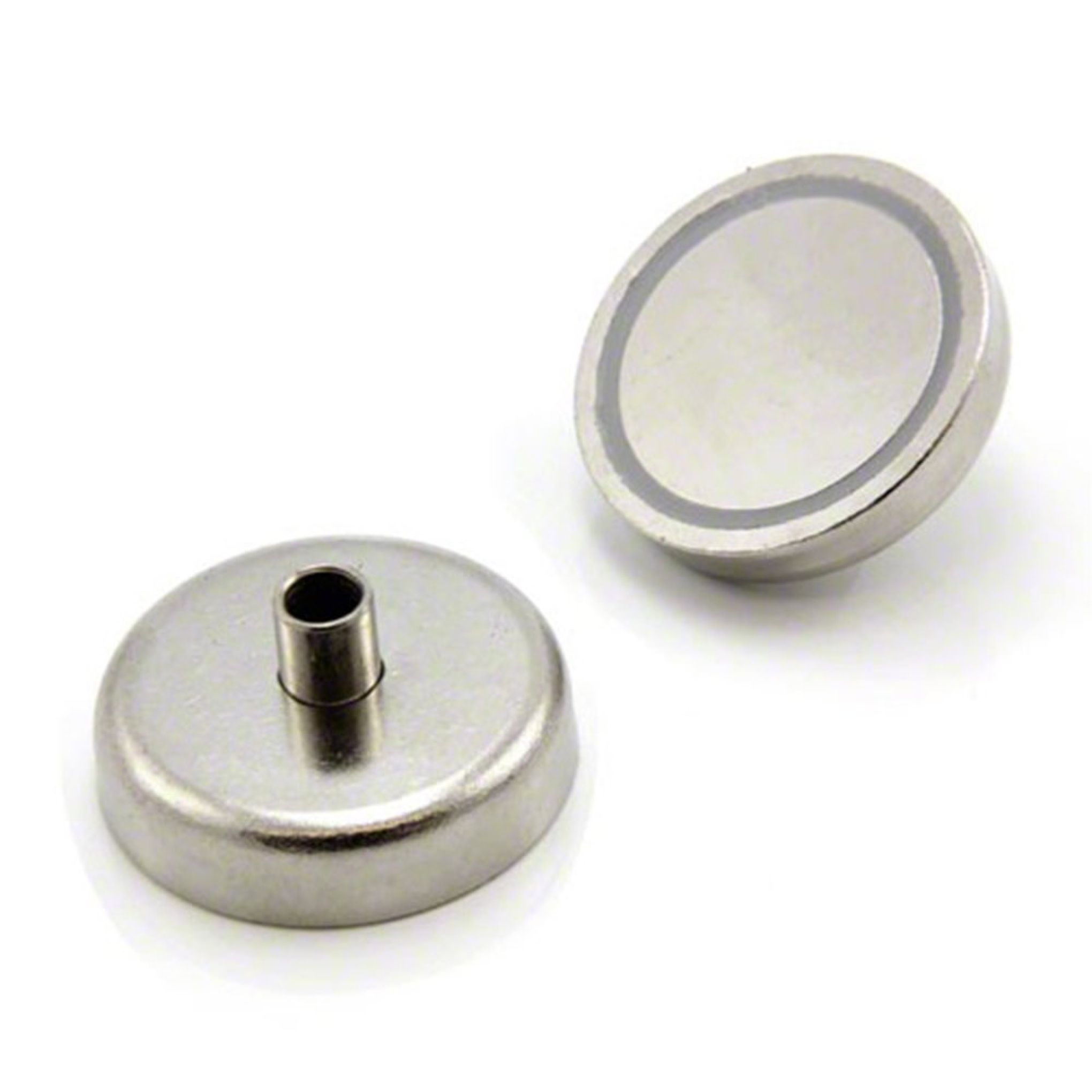

Neodymium pot magnets are made of a powerful Neodymium magnet sunken in to a steel shell meaning that the north pole is on the centre of the magnetic face and the south pole is on the outer edge around it. The steel pot increases the adhesive force of the magnets giving them an incredible hold for their size. An added advantage of pot magnets is that they are resistant to chipping or cracking following constant impact with a steel surface. These magnets come with a safe-handling warning; because they are so powerful they can be dangerous if not handled carefully.
