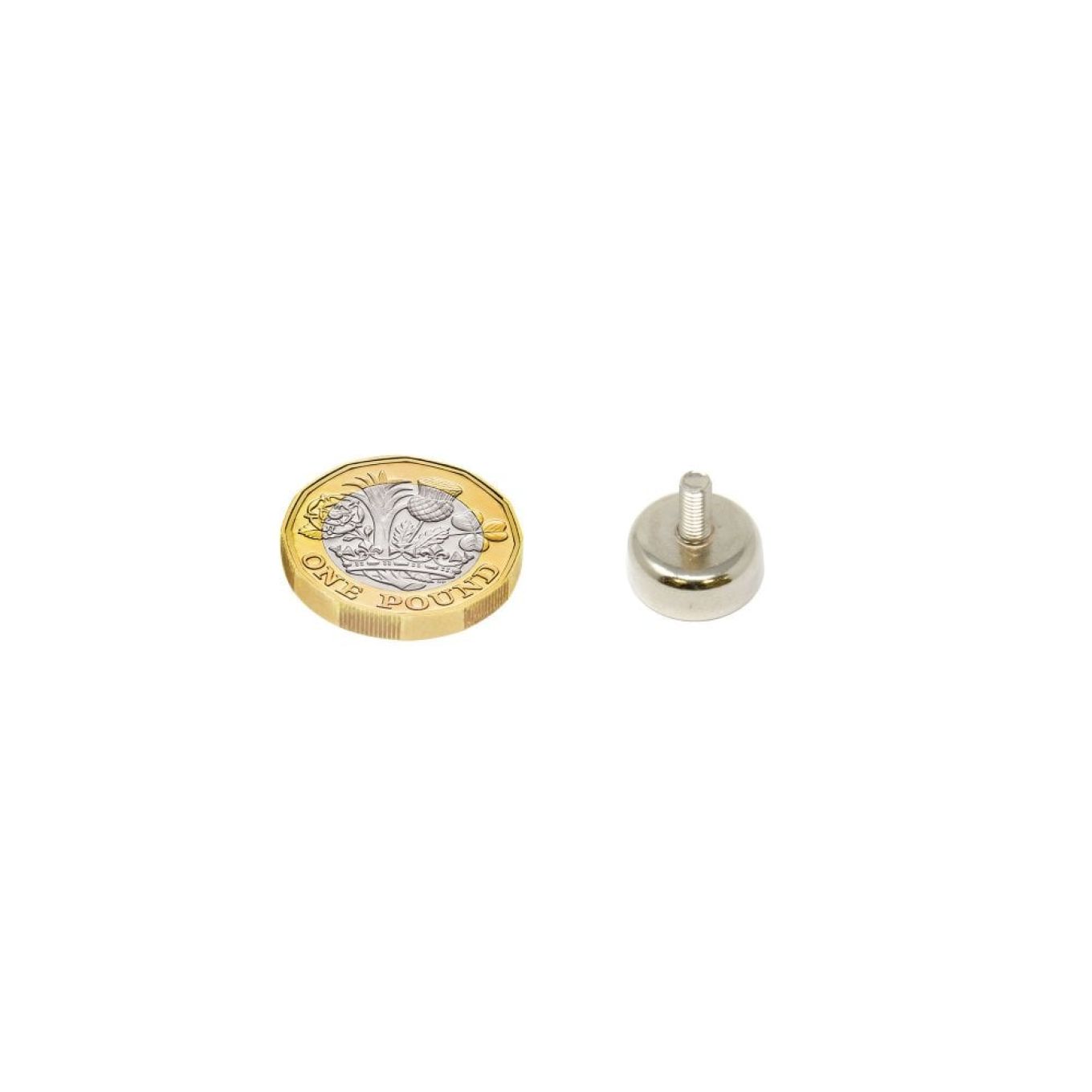

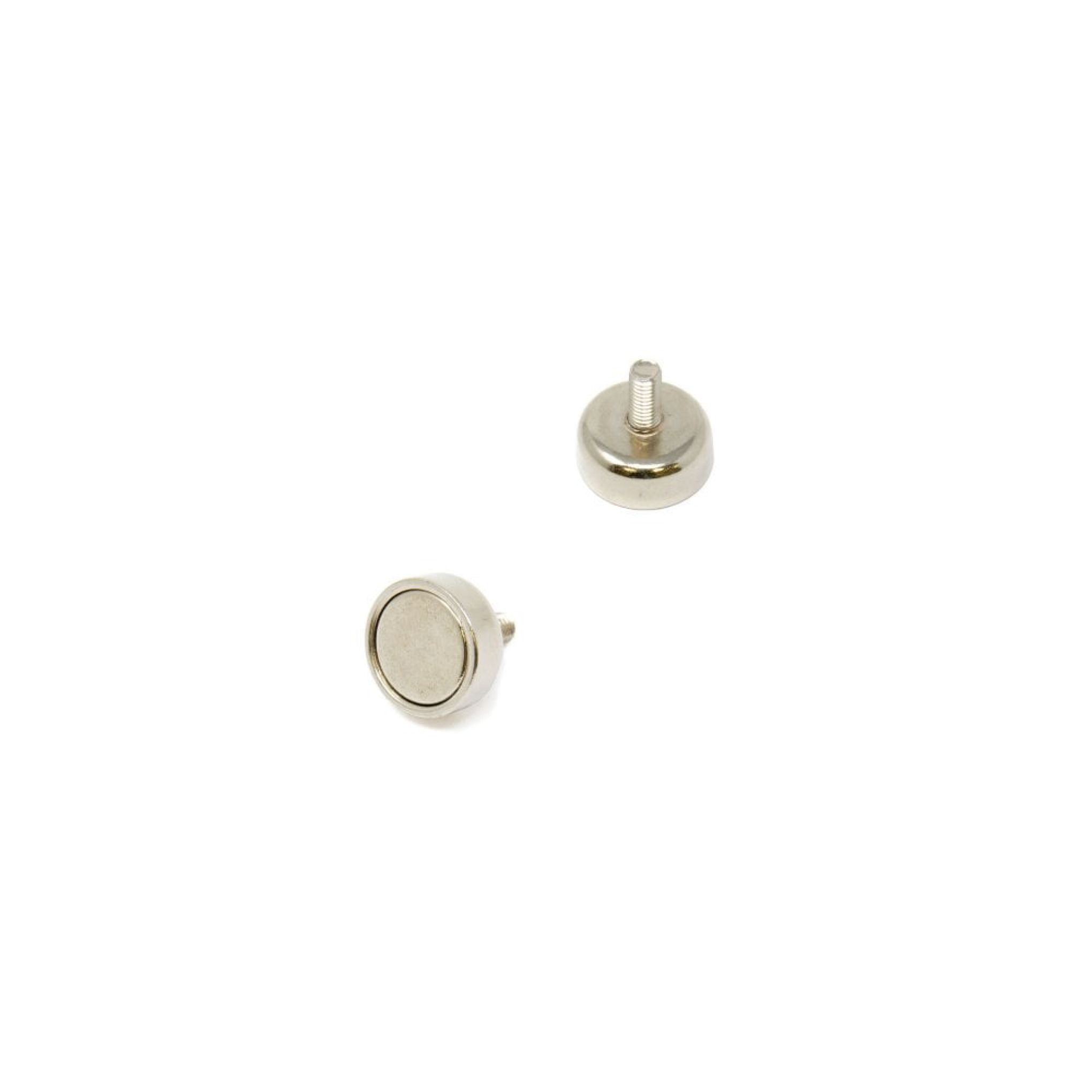

N42 Neodymium Pot Magnet with M3 Stud - 15/32 in. dia x 3/16 in. thick - 8.82lbs Pull
*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*
Small and shallow but very strong, these high-performance Neodymium (N42) pot magnets have a threaded stud on the non-magnetic face. Magnetism is concentrated on one face to provide the maximum holding force.
Pack quantity 1: 1 Pot magnet
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
- 12mm diameter x 5mm thick with a M3 threaded stud for fixing.
- 0.47 in. diameter x 0.2 in. thick with a M3 threaded stud for fixing.
- +/-0.1mm (0.0004 in.) tolerance.
- Each magnet is only magnetic on the flat face.
- Each magnet can support 4kg (8.82lbs) pull vertically from the magnetic face when in flush contact with a mild steel surface of equal thickness.
- Coated with three layers of nickel, copper and nickel to reduce corrosion and provide a smooth finish.
Neodymium pot magnets are made of a powerful Neodymium magnet sunken in to a steel shell meaning that the north pole is on the centre of the magnetic face and the south pole is on the outer edge around it. The steel pot increases the adhesive force of the magnets giving them an incredible hold for their size. An added advantage of pot magnets is that they are resistant to chipping or cracking following constant impact with a steel surface. These magnets have an M3 threaded stud on the non-magnetic face; pot magnets are also available with countersinks and threaded studs.
