N42 Neodymium Mitre Magnet - 3/8 in. dia x 1-3/16 in. thick - 7.93lbs Pull
Code: F100N-4
*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*
High-performance Neodymium (N42) mitre magnets available with either pole on the mitred face.
Choose Polarity:
Choose Pack Size:
$28.80
In Stock
NEXT DAY DELIVERY
available to the uk
STANDARD DELIVERY
From £2.25 + VAT.
100% SECURE
Online ordering.
NEXT DAY DELIVERY
available to the uk
STANDARD DELIVERY
From £2.25 + VAT.
100% SECURE
Online ordering.
Ask A Question
Please fill out the following form to Ask a Question about this product:
Email A Friend
Please fill out the following form to Tell a Friend about this product:

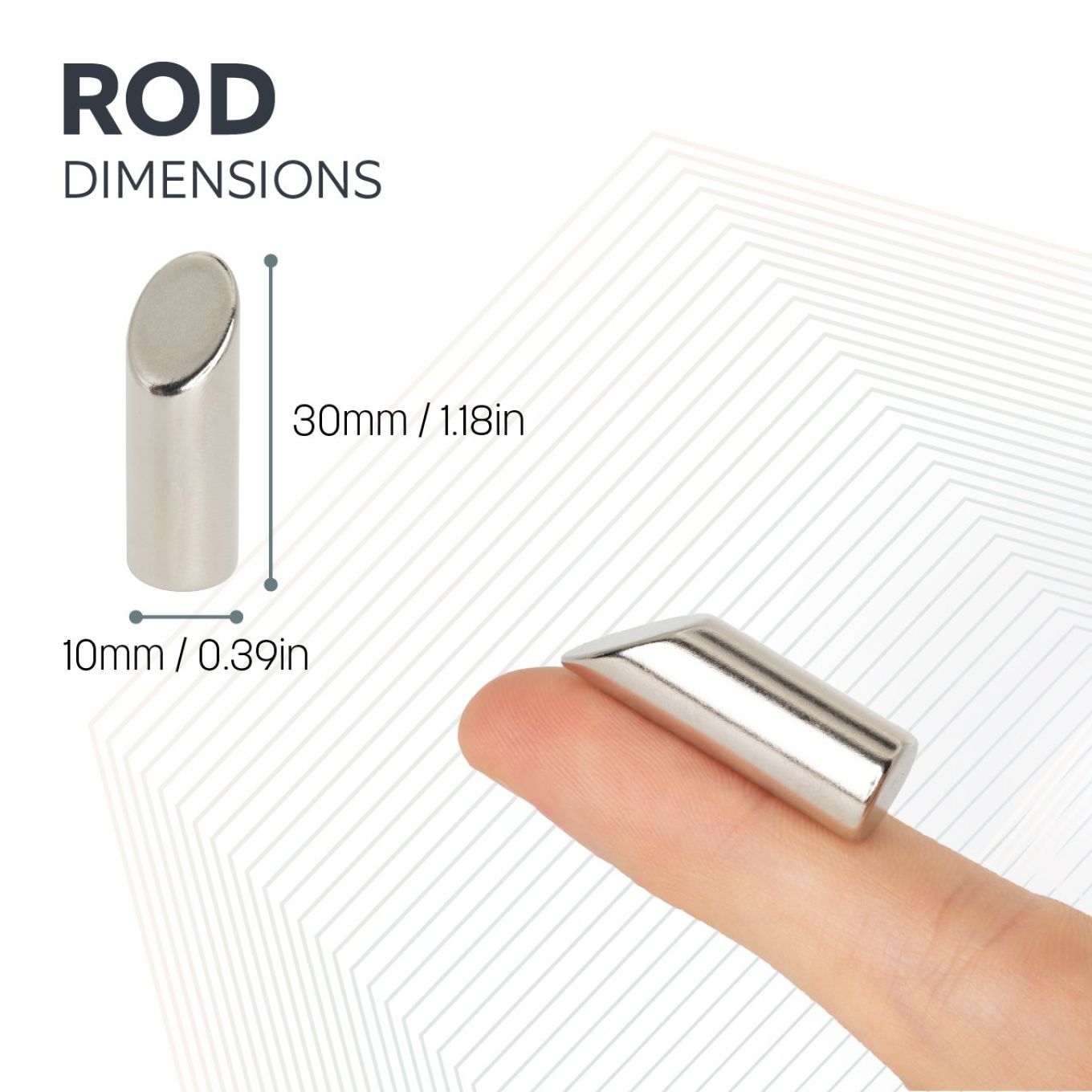

- 10mm diameter x 30mm thick with one 45.o. mitred end.
- 0.39 in. diameter x 1.18 in. thick with one 45.o. mitred end.
- Each magnet's north pole is on the mitred face with the south pole on the flat face.
- Each magnet can support a steel weight of up to 3.6kg (7.94lbs) vertically from the magnetic face when in flush contact with a mild steel surface of equal thickness.
- Coated with three layers of nickel, copper and nickel to reduce corrosion and provide a smooth finish.
Mitred magnets are commonly used in magnetic electric motors such as those used in electric or hybrid motor vehicles and in household appliances such as washing machines. These strong magnets have an anisotropic alignment and a maximum operating temperature of 80 degrees Celsius.
