N42 Neodymium Diametrically Magnetised Rod Magnet - 1/32 in. dia x 1/8 in. thick
*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*
Small, diametrically magnetised Neodymium (N42) rod magnet. These diametrically magnetised magnets have their north and south pole on opposite curved sides, cutting the flat surface in half.
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:

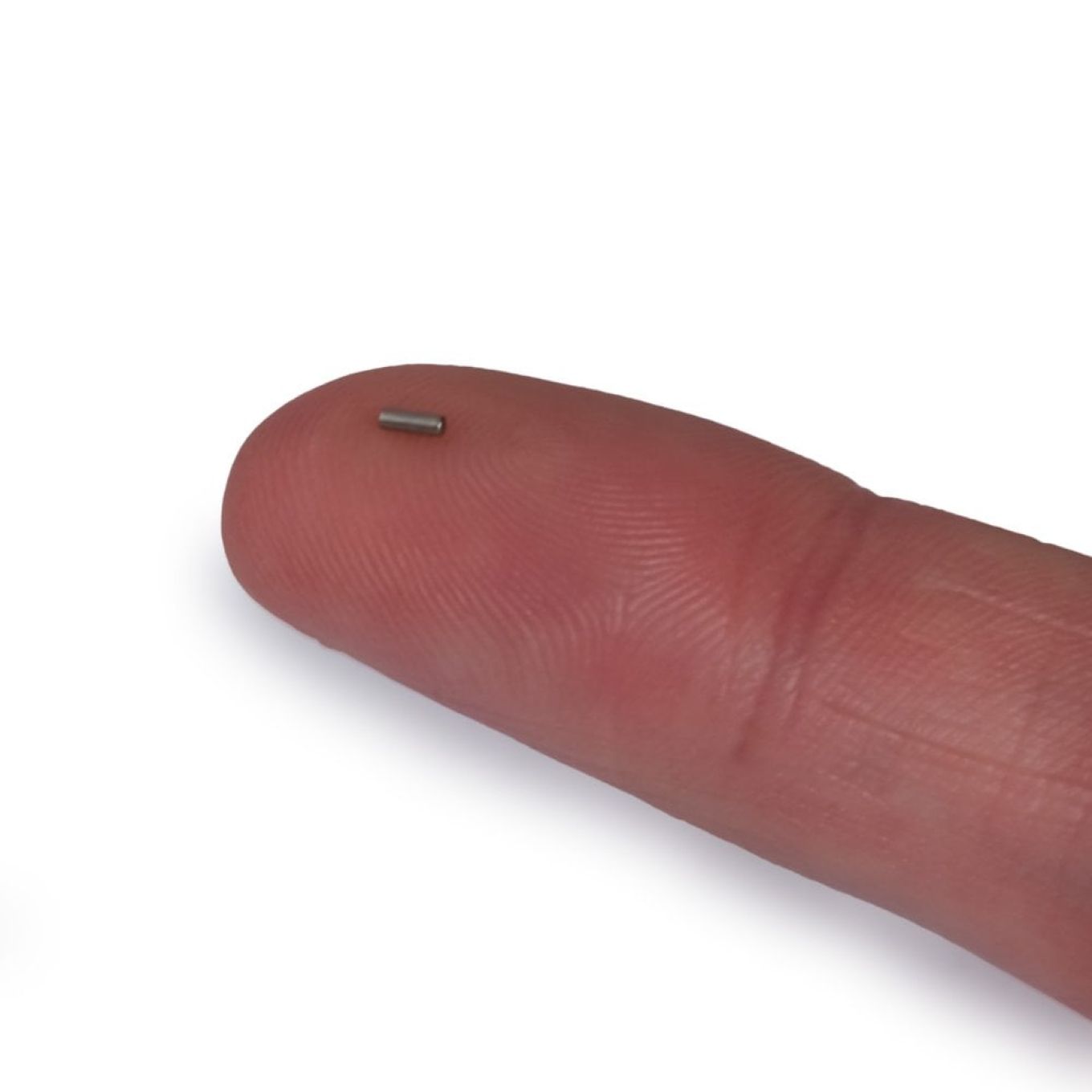

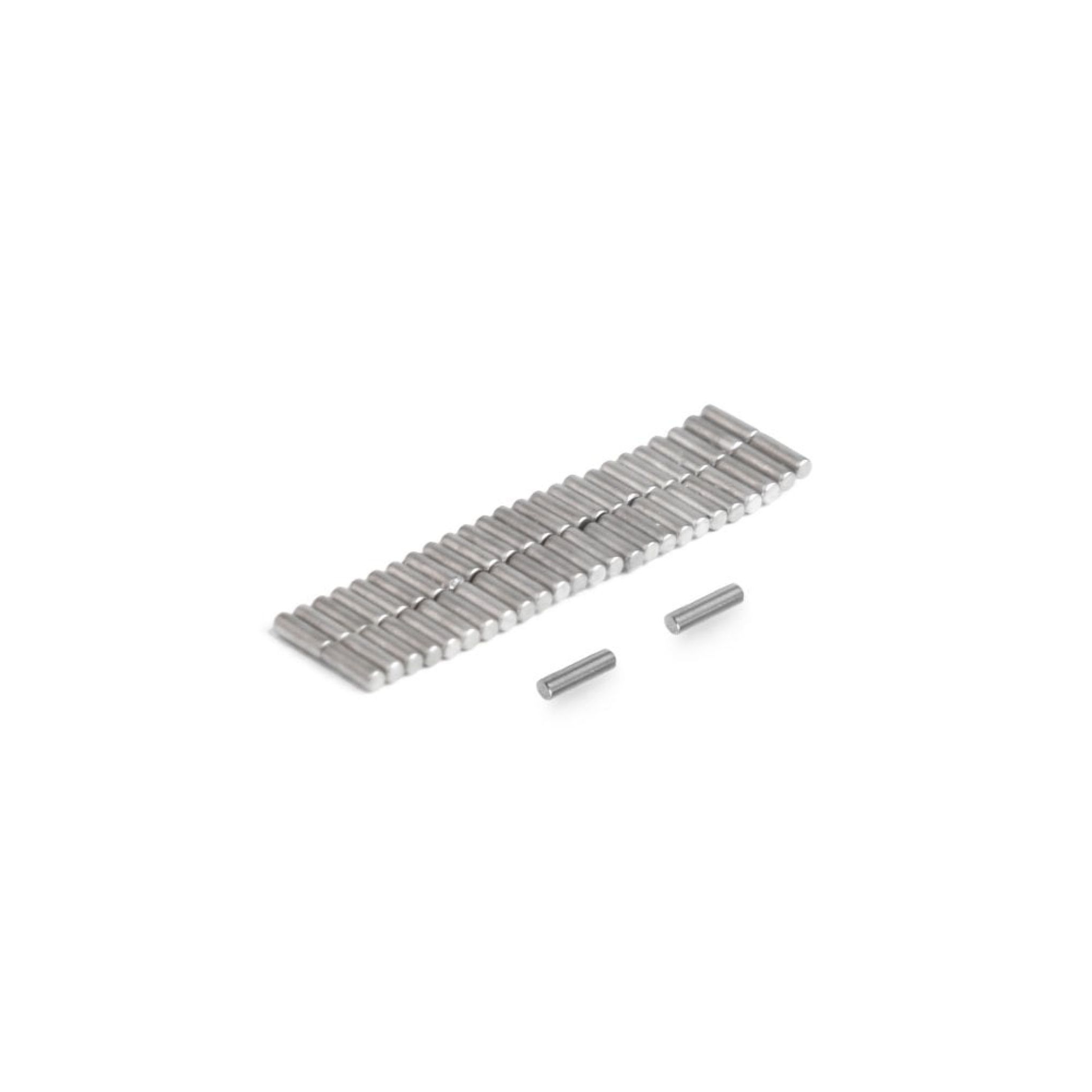

- 1mm diameter x 3mm thick.
- 0.04 in. diameter x 0.12 in. thick.
- +/-0.1mm (0.004 in.) tolerance.
- Each magnet's north and south pole are on opposite curved sides.
- Excellent resistance to demagnetisation.
- Coated with three layers of nickel, copper and nickel to reduce corrosion and provide a smooth and clean finish.
Unusually, diametrically magnetised magnets are not designed to hold the maximum possible weight for the size of the magnet but instead are used to provide rotational movement. A diametrically magnetised magnet is magnetised across its diameter so that the north pole in on one curved side and the south pole is on the opposite curved side. These are the smallest diametrically magnetised magnets in our range.
