N42 Neodymium Countersunk Disc Magnet - 19/32 in. dia x 9/32 in. thick x 5/32 in. Hole - 12.56lbs Pull
*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*

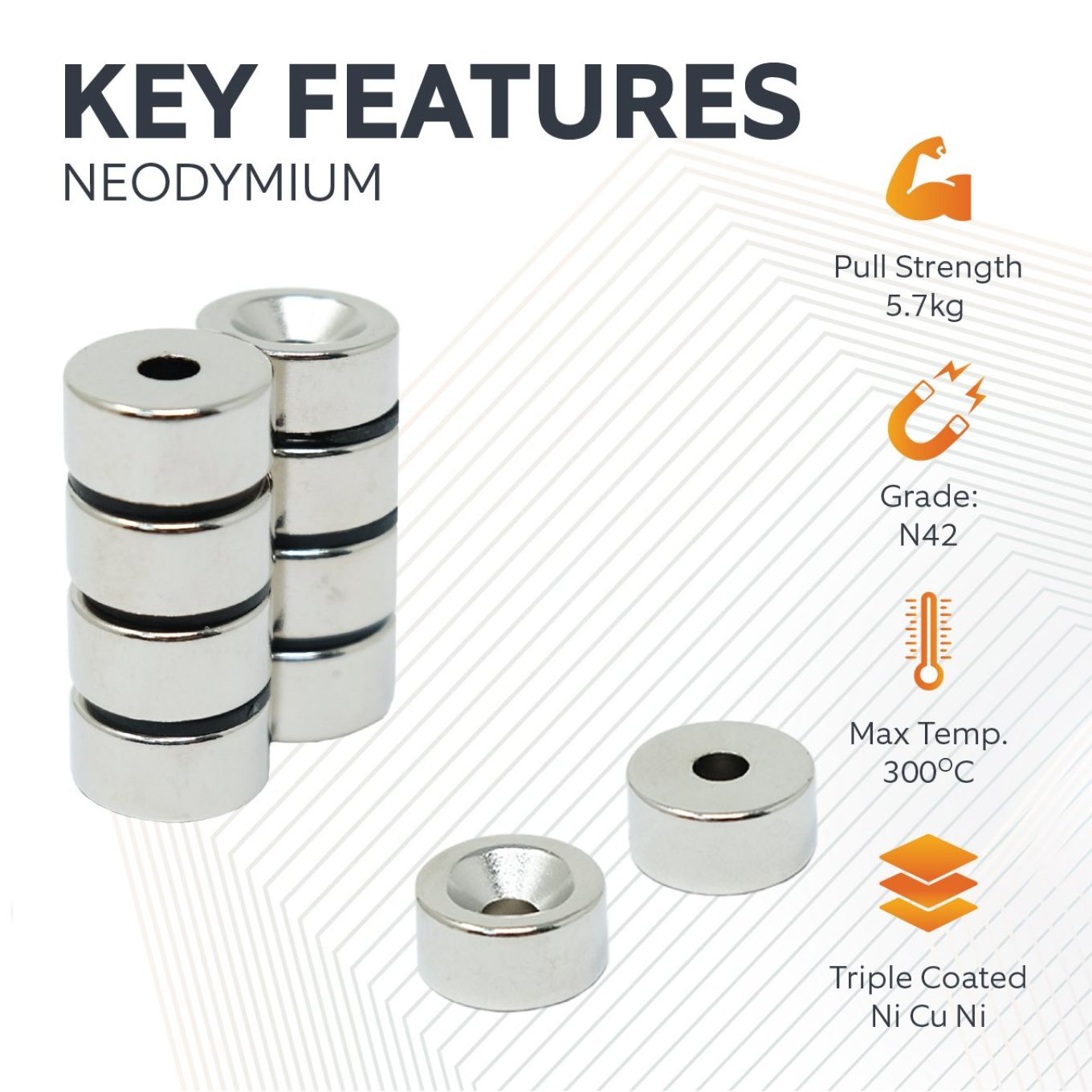

High-performance countersunk Neodymium (N42) magnets available with either pole on the countersunk face.
Pack quantity 2: 2 Countersunk magnets
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:

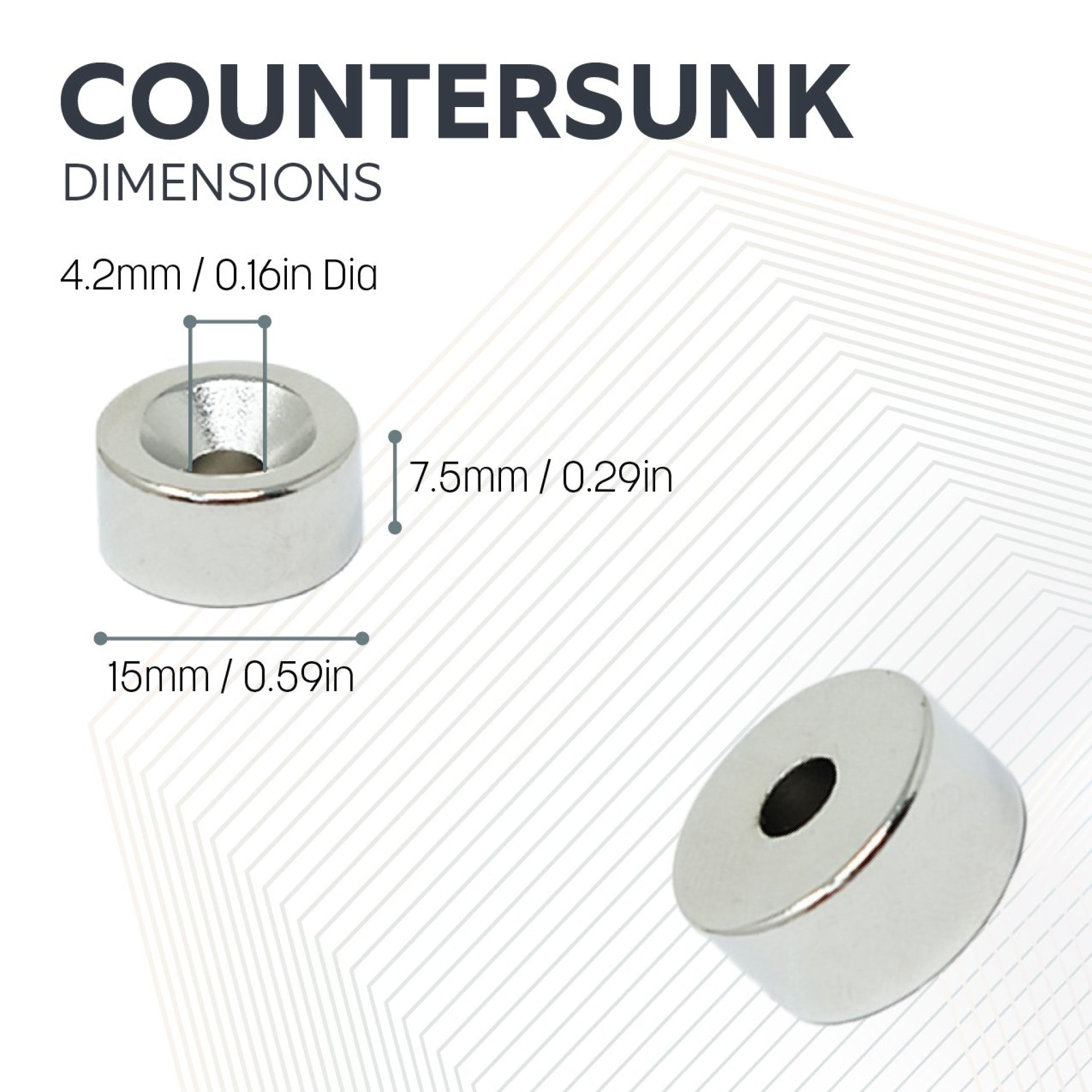

- 15mm diameter x 7.5mm thick with a 4.2mm diameter countersunk hole for fixing.
- 0.59 in. diameter x 0.3 in. thick with a 0.17 in. diameter countersunk hole for fixing.
- +/-0.1mm (0.0004 in.) tolerance.
- Each magnet has its south pole on the countersunk face.
- Each magnet can support 5.7kg (12.57lbs) pull vertically from the magnetic face when in flush contact with a mild steel surface.
- Coated with three layers of nickel, copper and nickel to reduce corrosion and provide a smooth finish.
- Can be fixed in place with 4mm (0.16 in.) diameter countersunk screws.
Ideal for furniture fixings, hanging artwork and keeping doors and drawers closed, countersunk magnets have a central hole which allows them to be fixed to non-magnetic surfaces with a screw. Our 15mm (0.59 in.) x 7.5mm (0.3 in.) countersunk circular magnets provide an astonishing magnetic pull for such a small magnet. Countersunk magnets with opposite poles on the countersunk face can be used to attract two surfaces or two opposing countersunk magnets with the same pole on the countersunk face can be used to create a damping, shock absorbing or repelling effect. Also available with the north pole on the countersunk face.
