N42 Neodymium Countersunk Disc Magnet - 15/32 in. dia x 5/32 in. thick x 5/32 in. Hole - 5.51lbs Pull
*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*

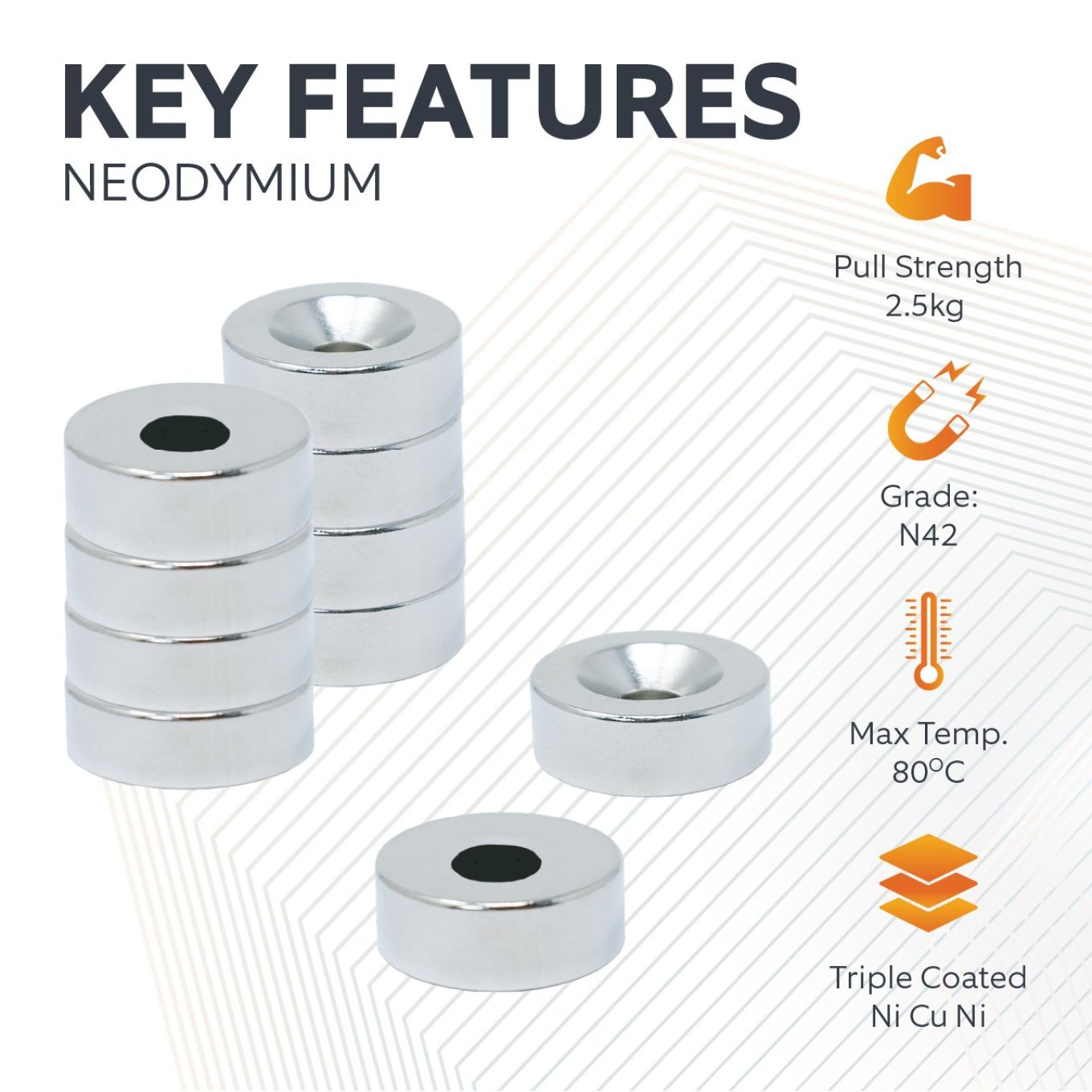

Small high-performance countersunk Neodymium (N42) magnets available with either pole on the countersunk face.
Pack quantity 10: 10 Countersunk magnets
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:

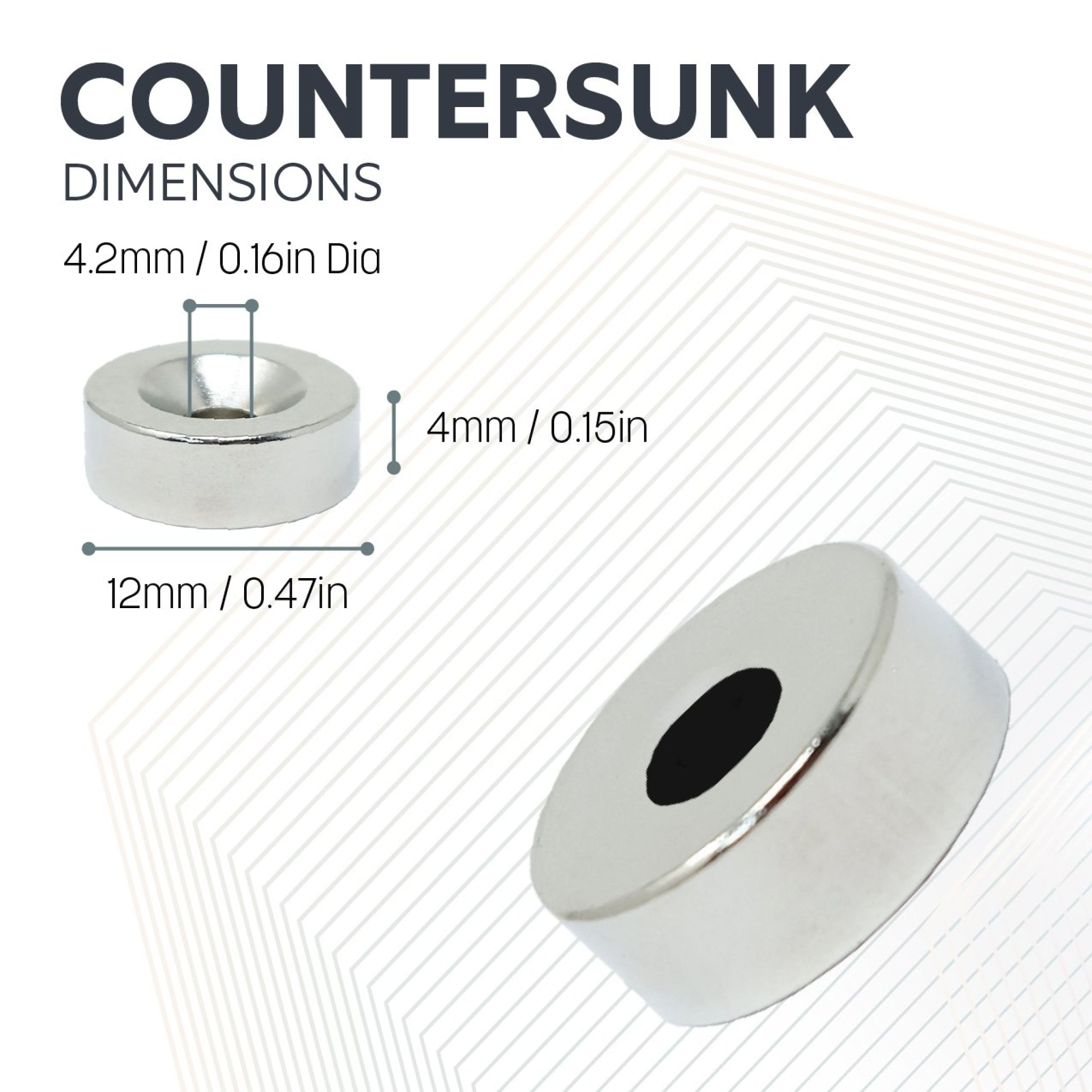

- 12mm diameter x 4mm thick with a 4.2mm diameter countersunk hole for fixing.
- 0.47 in. diameter x 0.16 in. thick with a 0.17 in. diameter countersunk hole for fixing.
- +/-0.1mm (0.0004 in.) tolerance.
- Each magnet has its south pole on the countersunk face.
- Each magnet can support 2.5kg (5.51lbs) pull vertically from the magnetic face when in flush contact with a mild steel surface.
- Each magnet is coated with three layers of nickel, copper and nickel to improve corrosion resistance and provide a smooth and clean finish.
- Can be fixed in place with our 4mm (0.16 in.) diameter countersunk screws.
Ideal for furniture fixings, hanging artwork and keeping doors and drawers closed, countersunk magnets have a central hole which allows them to be fixed to non-magnetic surfaces with a screw. Our 12mm (0.47 in.) x 4mm (0.16 in.) countersunk circular magnets provide an astonishing magnetic pull for such a small magnet. Countersunk magnets with opposite poles on the countersunk face can be used to attract two surfaces or two opposing countersunk magnets with the same pole on the countersunk face can be used to create a damping, shock absorbing or repelling effect. Also available with the north pole on the countersunk face.
