N42 Neodymium Counterbore Pot Magnet - 2-1/4 in. dia x 9/16 in. thick x 5/16 in. hole - 306.5lbs Pull
*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*

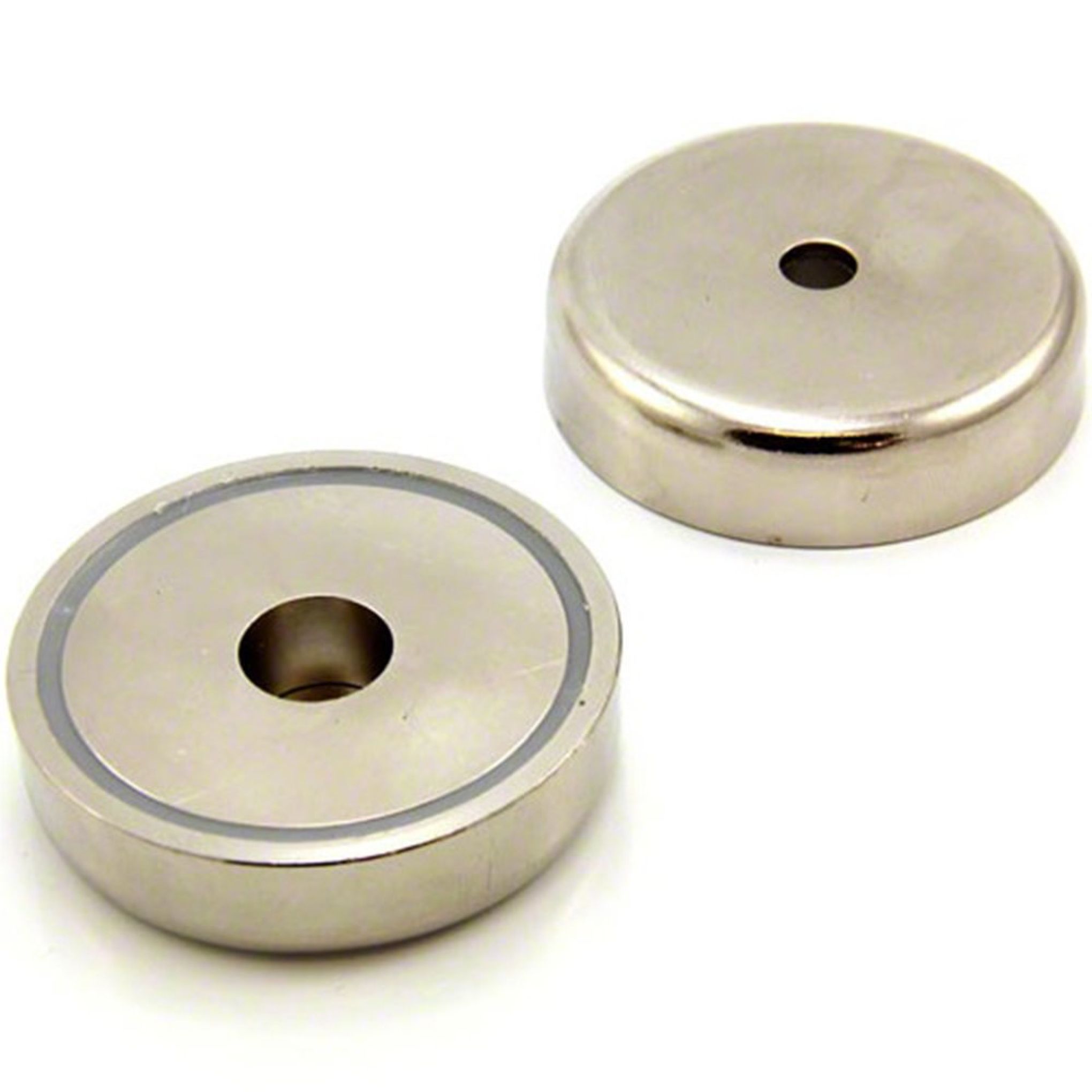

Large, strong Neodymium (N42) pot magnets with a counter-bored hole on the magnetic face. Magnetism is concentrated on one face to provide the maximum holding force.
Pack quantity 1: 1 Pot magnet
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
- 60mm diameter x 14.5mm thick with a 8mm diameter counter-bored hole for fixing.
- 2.36 in. diameter x 0.57 in. thick with a 0.32 in. diameter counter-bored hole for fixing.
- +/-0.1mm (0.0004 in.) tolerance.
- Each magnet is only magnetic on the counter-bored face.
- Each magnet can support 139kg (306.5lbs) pull vertically from the magnetic face when in flush contact with a mild steel surface of equal thickness.
- Coated with three layers of nickel, copper and nickel to reduce corrosion and provide a smooth finish.
- Can be fixed in place with 8mm (0.3 in.) diameter countersunk screws.
These are the largest of our Neodymium counter-bored pot magnet range. Neodymium pot magnets are made of a powerful Neodymium magnet sunken in to a steel shell meaning that the north pole is on the centre of the magnetic face and the south pole is on the outer edge around it. The steel pot increases the adhesive force of the magnets giving them an incredible hold for their size. An added advantage of pot magnets is that they are resistant to chipping or cracking following constant impact with a steel surface. These magnets are counter-bored on the magnetic face and can be fixed to a surface with an 8mm (0.31 in.) screw, pot magnets are also available with countersinks and threaded studs. These magnets come with a safe-handling warning; because they are so powerful they can be dangerous if not handled carefully.
