N35 Neodymium Top Hat Pot Magnet - 5/8 in. dia x 3/16 in. thick - 11lbs Pull
*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*

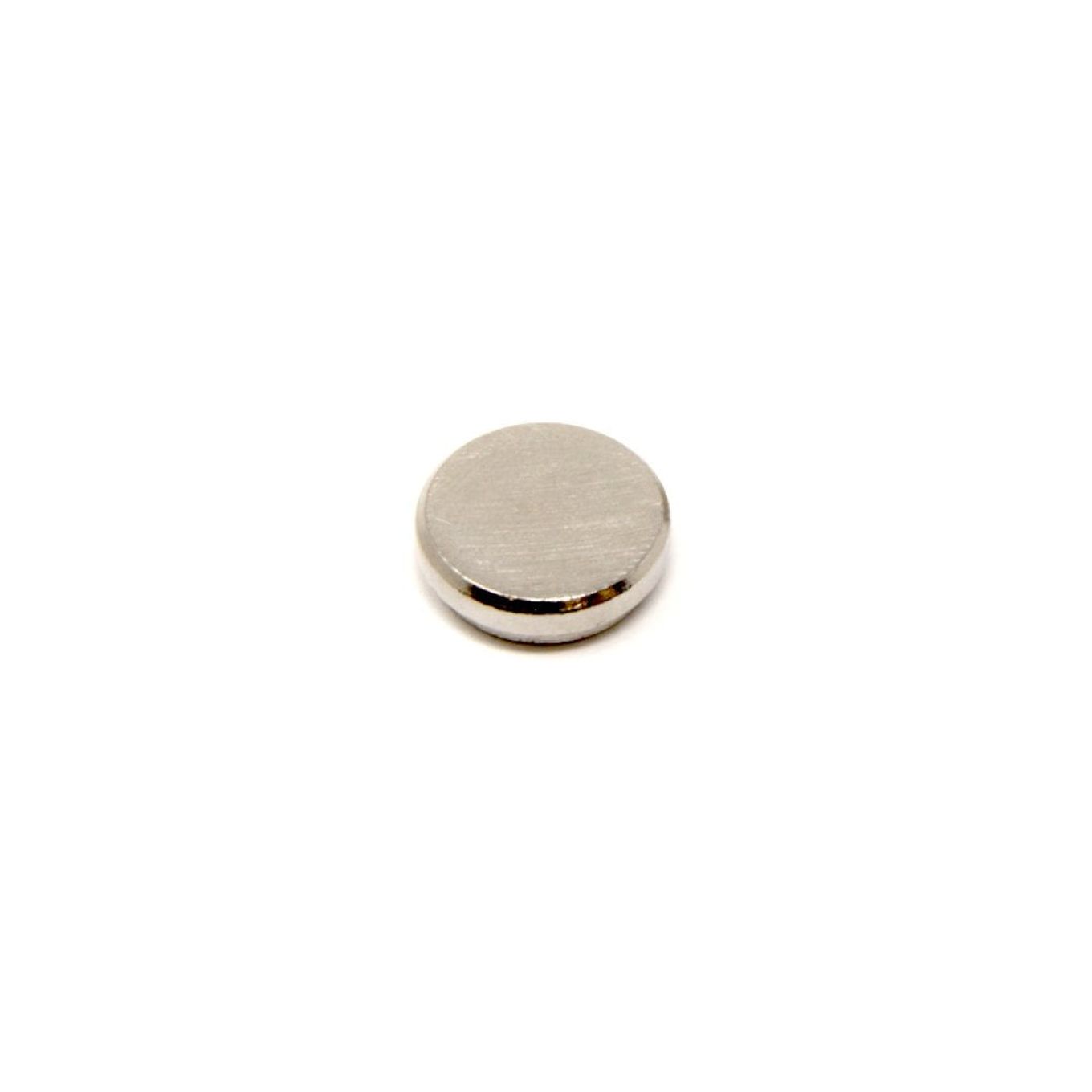

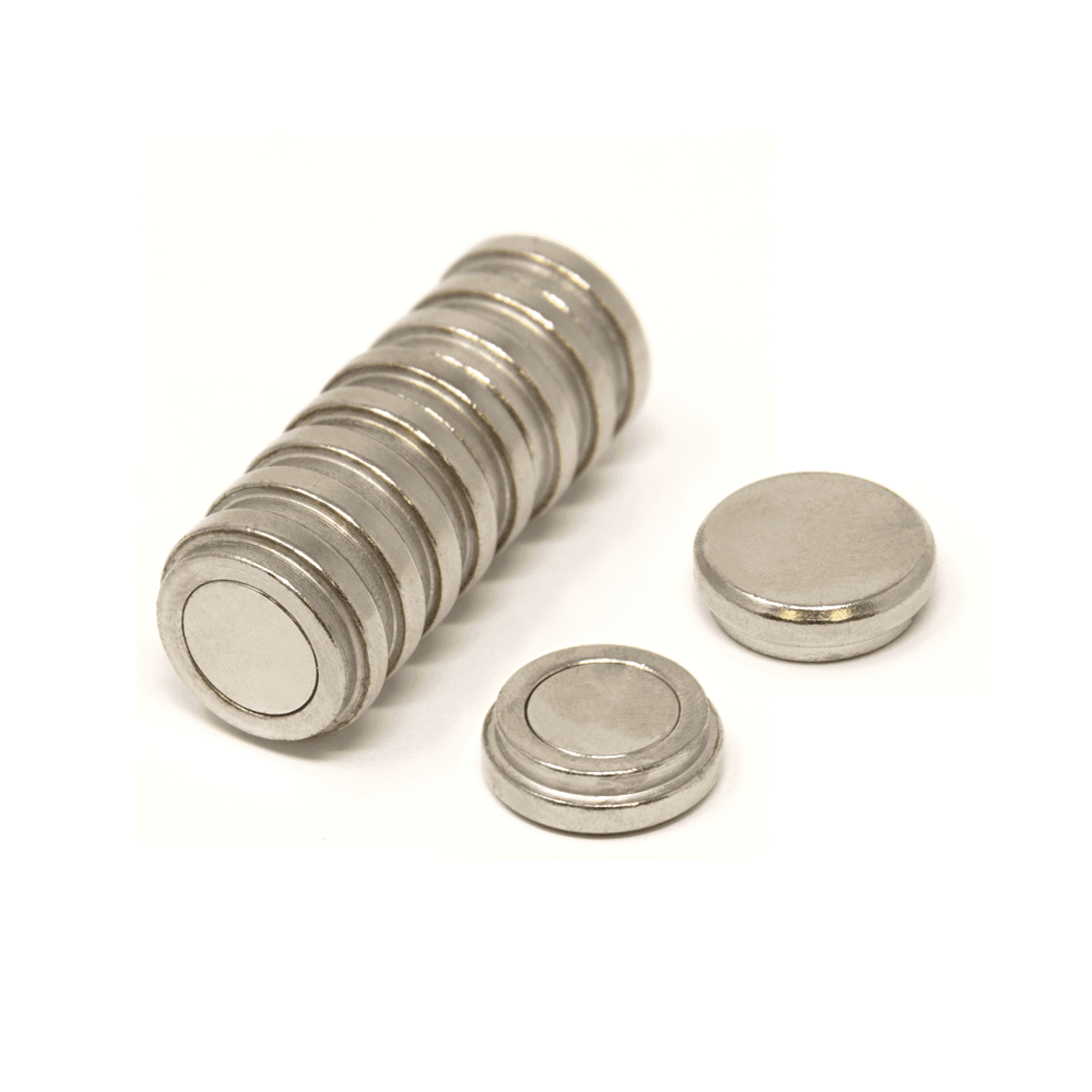

A unique design, these small magnets look like a top hat with a wider diameter on one magnetic face and a smaller diameter on the opposite face. They are widely used when a flush magnetic face is required.
1 pack contains 10 magnets.
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
- 16mm diameter x 5mm thick.
- The smaller section of the magnet measures 14mm diameter.
- 0.63 in. diameter x 0.2 in. thick.
- The smaller section of the magnet measures 0.55 in. diameter.
- Each magnet can support 5kg (11lbs) vertically from the magnetic face when in flush contact with a mild steel surface of equal thickness.
- N35 Grade Neodymium.
- North & South poles on opposite faces.
These Neodymium top hat pot magnets are used in fixtures when a screw is not a possible fixing option. The smaller section of the magnet can be pushed through a hole and is kept in place by the larger diameter face. These magnets provide a strong and durable fixing for use in point of sale stands and advertising displays. An added advantage of pot magnets is that they are resistant to chipping or cracking following constant impact with a steel surface.
