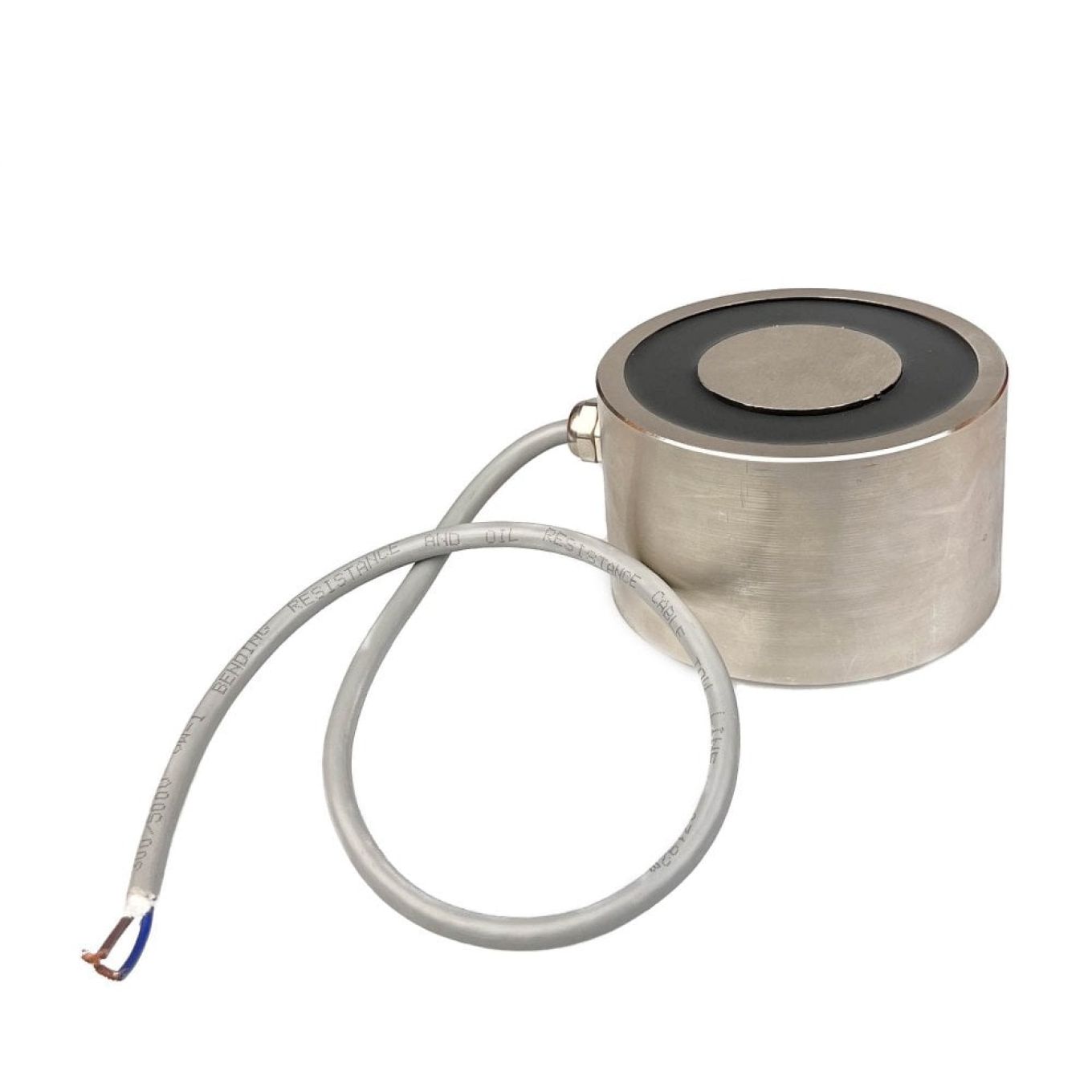

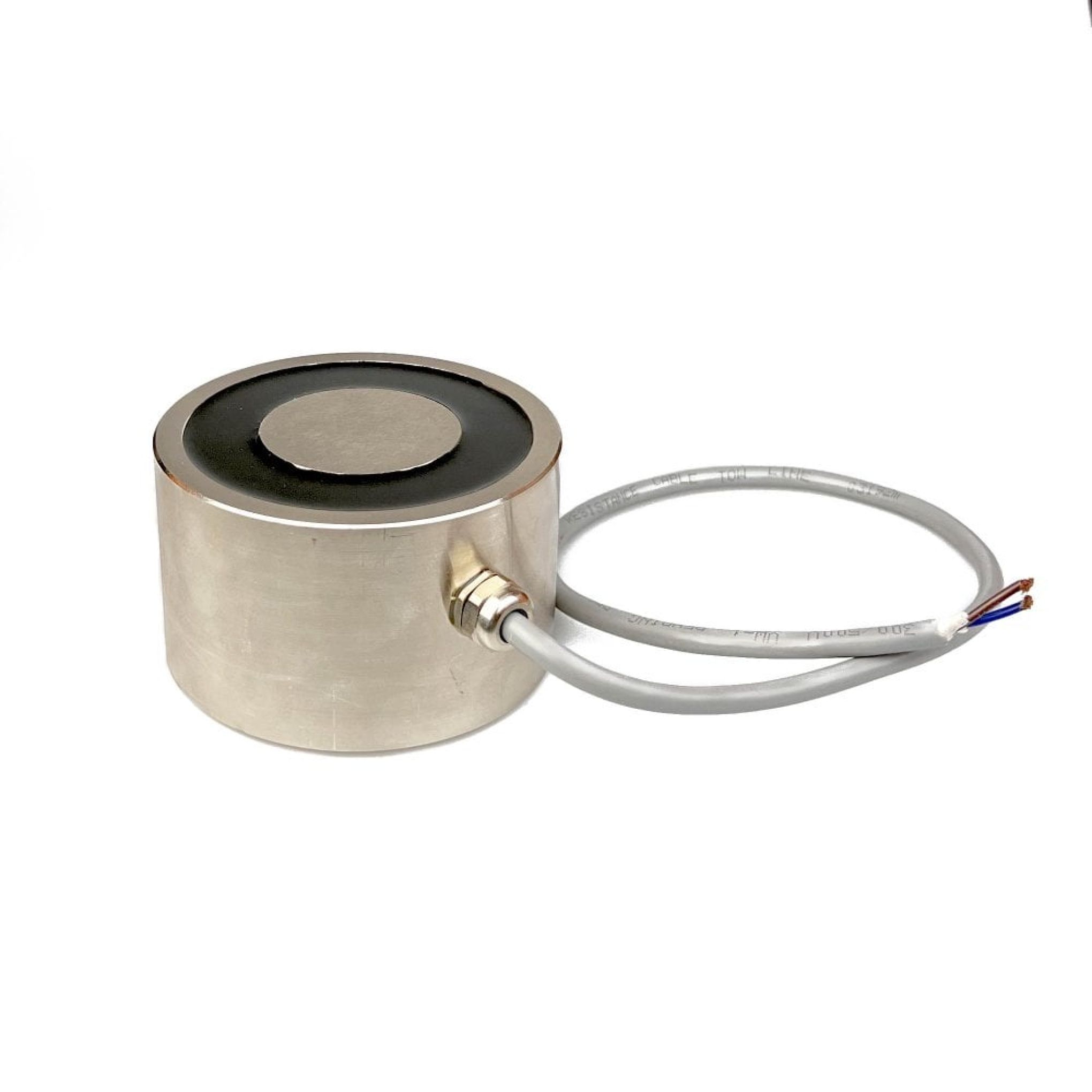

Energise to Release Electromagnet with M8 Mounting Holes - 3-15/16 in. diameter x 2-11/32 in. x thick - 330.75lbs Pull (24V DC / 55W)
Code: EM10060M8ETR-1
*Measurements have been rounded to the nearest fraction inch - please check the product description for an accurate measurement.*
Choose Pack Size:
$307.35
In Stock
NEXT DAY DELIVERY
available to the uk
STANDARD DELIVERY
From £2.25 + VAT.
100% SECURE
Online ordering.
NEXT DAY DELIVERY
available to the uk
STANDARD DELIVERY
From £2.25 + VAT.
100% SECURE
Online ordering.
Ask A Question
Please fill out the following form to Ask a Question about this product:
Email A Friend
Please fill out the following form to Tell a Friend about this product:
- 100mm diameter x 60mm thick
- 3.94 in. diameter x 2.36 in. thick
- Magnetic field switched off and on using electric current
- Each magnet has a maximum possible pull force rating up to 150kg (330lbs)
- Iron cylinder with bright nickel finish

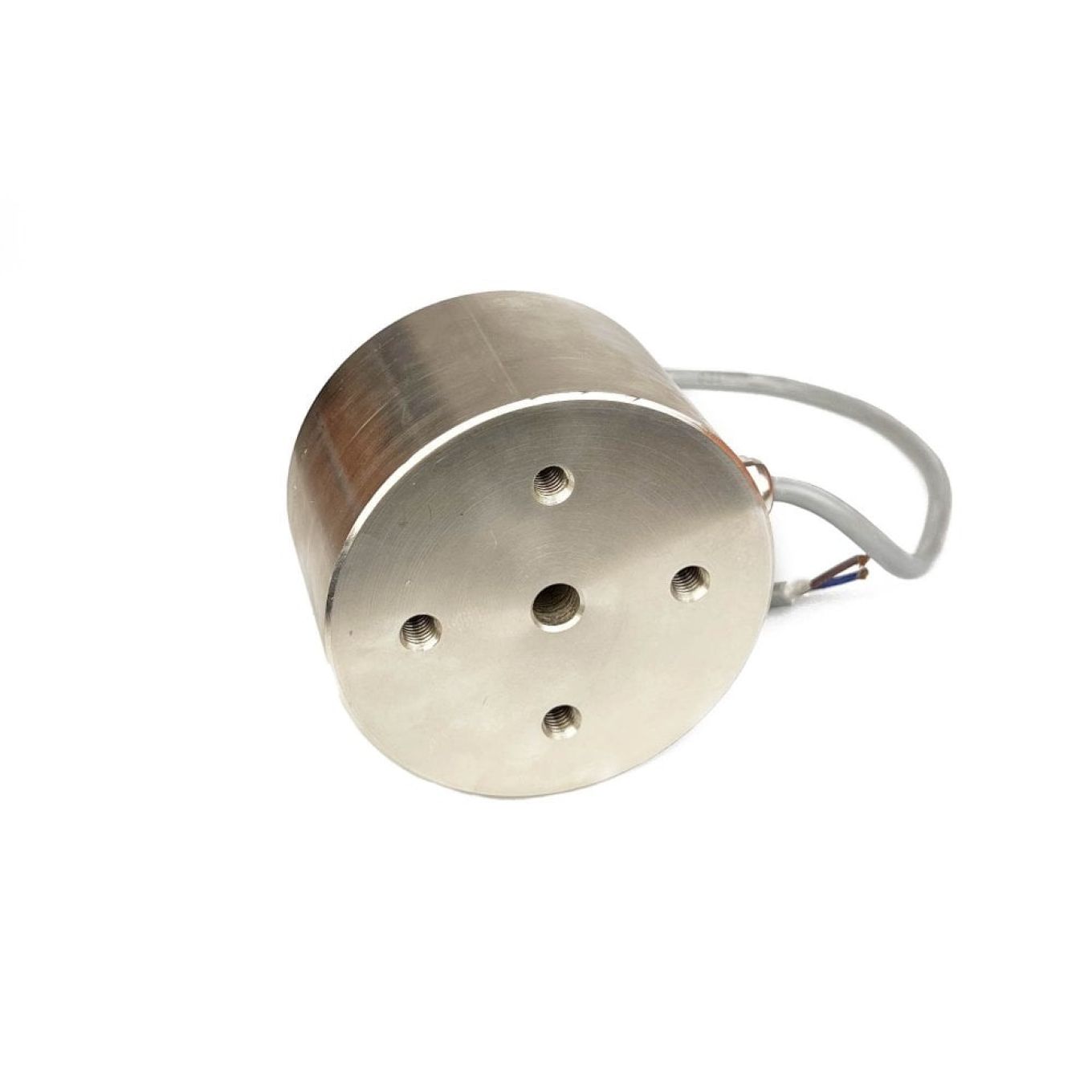

- Supplied with an M8 threaded hole on the reverse for fixing and mounting
- Operating voltage 24V DC/55W, power source not included
These energise to release electromagnets are ideal for door locking mechanisms and access control or security, fire door holding, medical devices, feeder systems for automated packaging machinery, pick and place equipment and power generation.
The outer shell is a sturdy bright nickel plated cylinder, passivated with body mounting. They are designed for demanding clamping and release applications.
