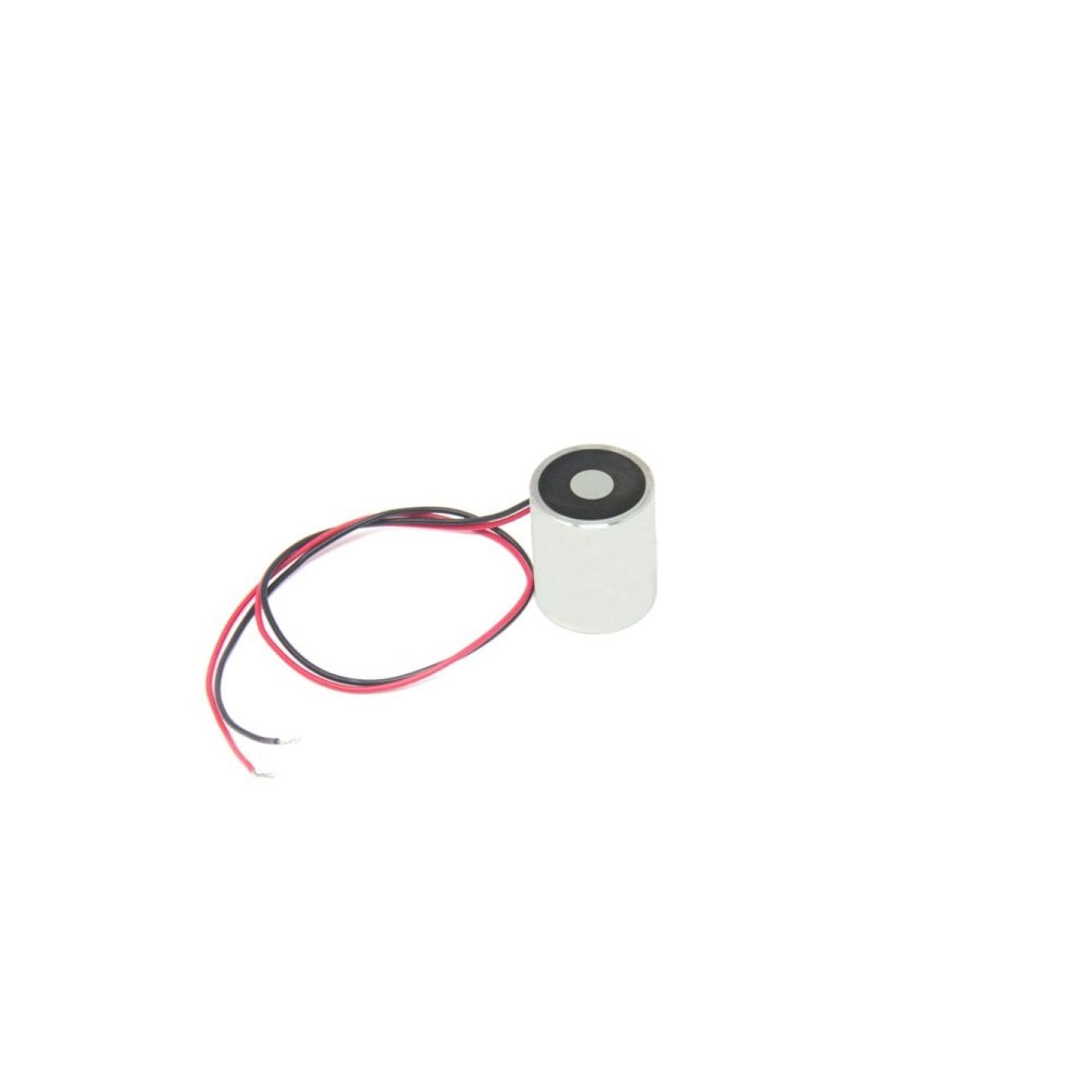

Energise to Release Electromagnet with M3 Mounting Hole - 11/16 in. dia x 13/16 in. thick - 4.41lbs Pull (6VDC / 6.8W)
*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*
These energise to release electromagnets are ideal for door locking mechanisms and access control or security, fire door holding, medical devices, feeder systems for automated packaging machinery, pick and place equipment and power generation.
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
- 17mm diameter x 20mm thick.
- 0.67 in. diameter x 0.79 in. thick.
- Magnetic field switched off and on using electric current.
- Each magnet has a maximum possible pull force rating up to 2kg (4.41lbs).
- Iron cylinder with bright nickel finish.

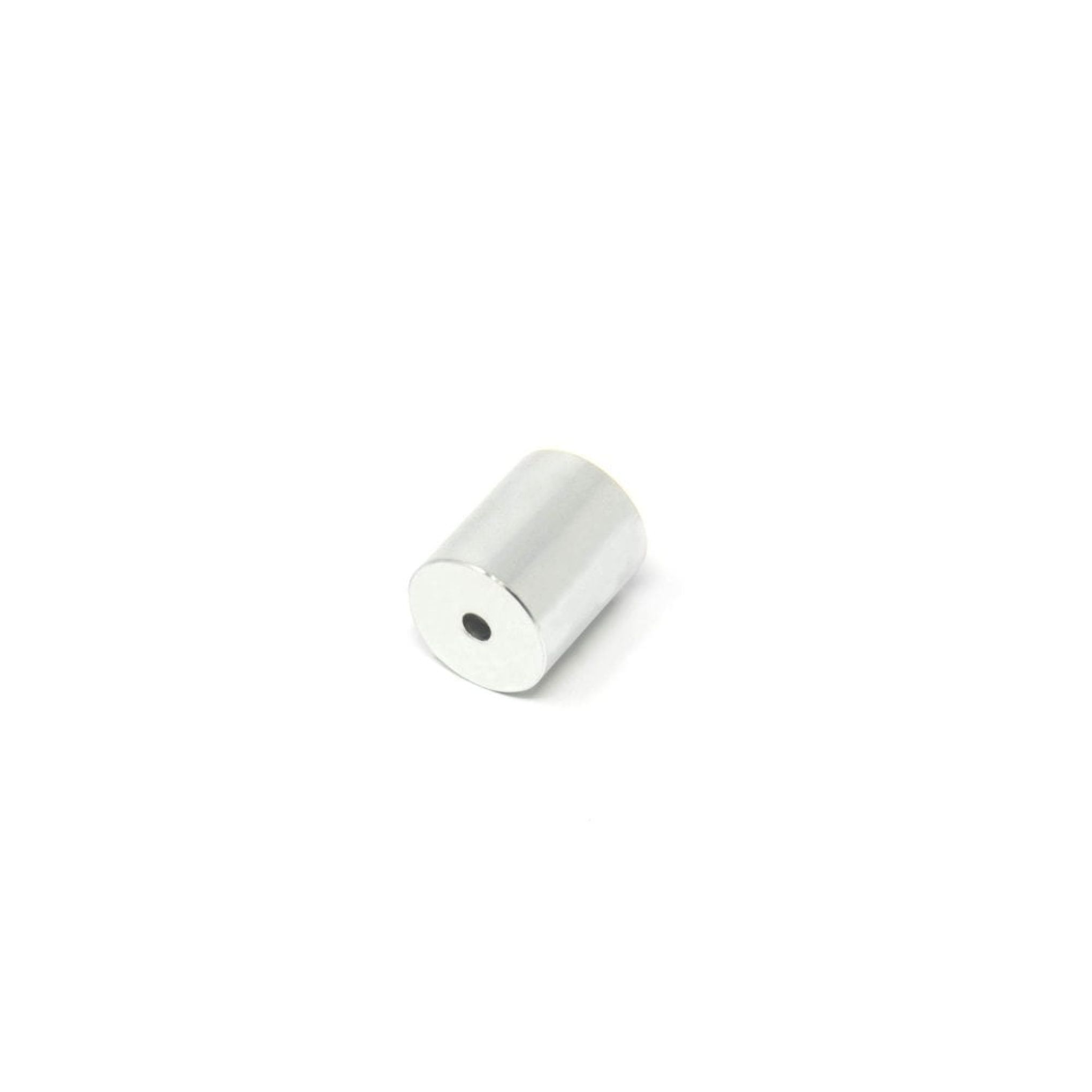

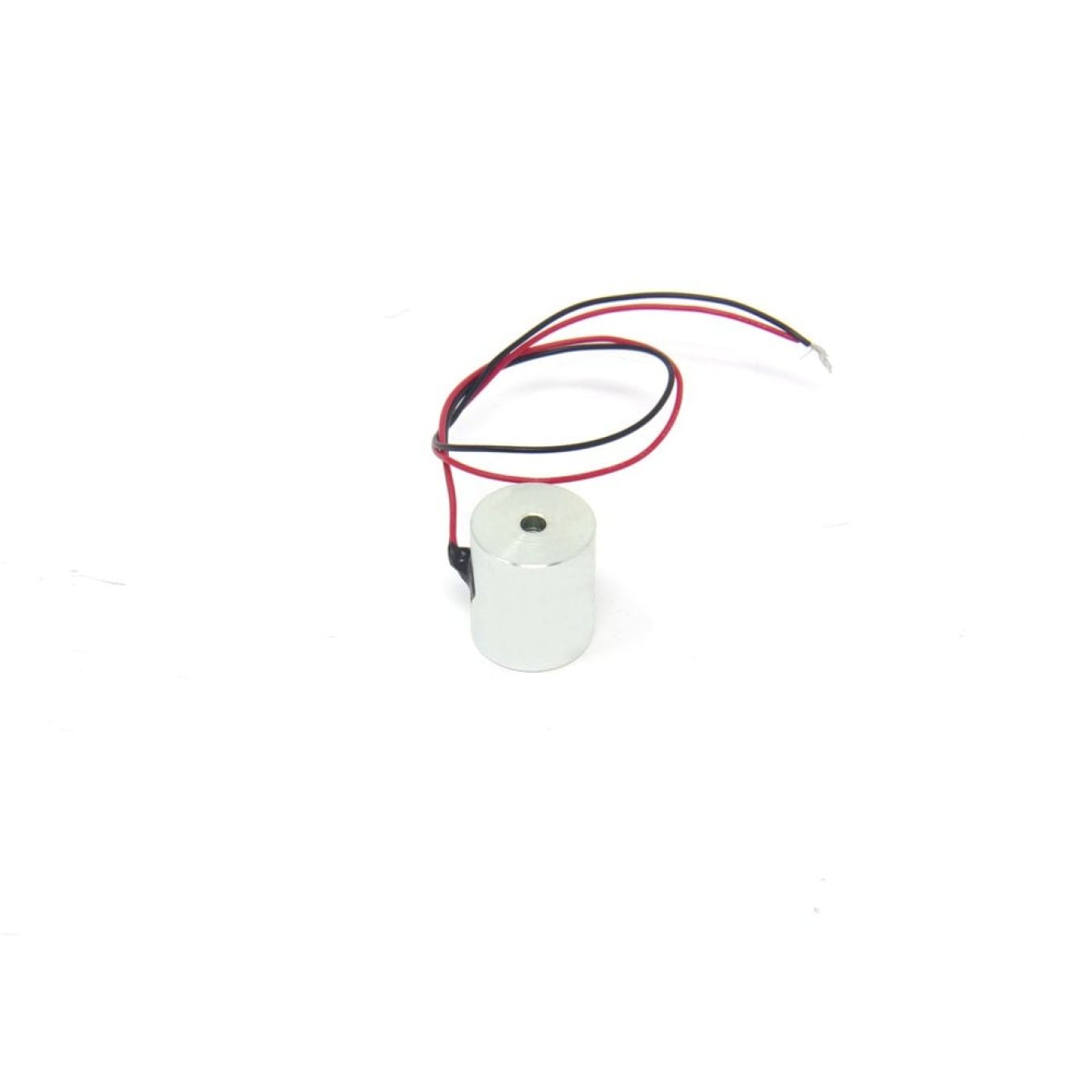

- Supplied with an M3 threaded hole on the reverse for fixing and mounting.
- Operating voltage 6VDC/6.8W, power source not included.
These energise to release electromagnets are ideal for door locking mechanisms and access control or security, fire door holding, medical devices, feeder systems for automated packaging machinery, pick and place equipment and power generation.
The permanent magnet within the electromagnet sits behind a copper coil with an iron core, and when electricity is applied, the copper coil creates a magnetic field that redirects the permanent magnet and ‘cancels’ out the external magnetic field. From this, it creates an internal ‘closed’ circuit.
The outer shell is a sturdy bright nickel plated cylinder, passivated with body mounting. They are designed for demanding clamping and release applications.
