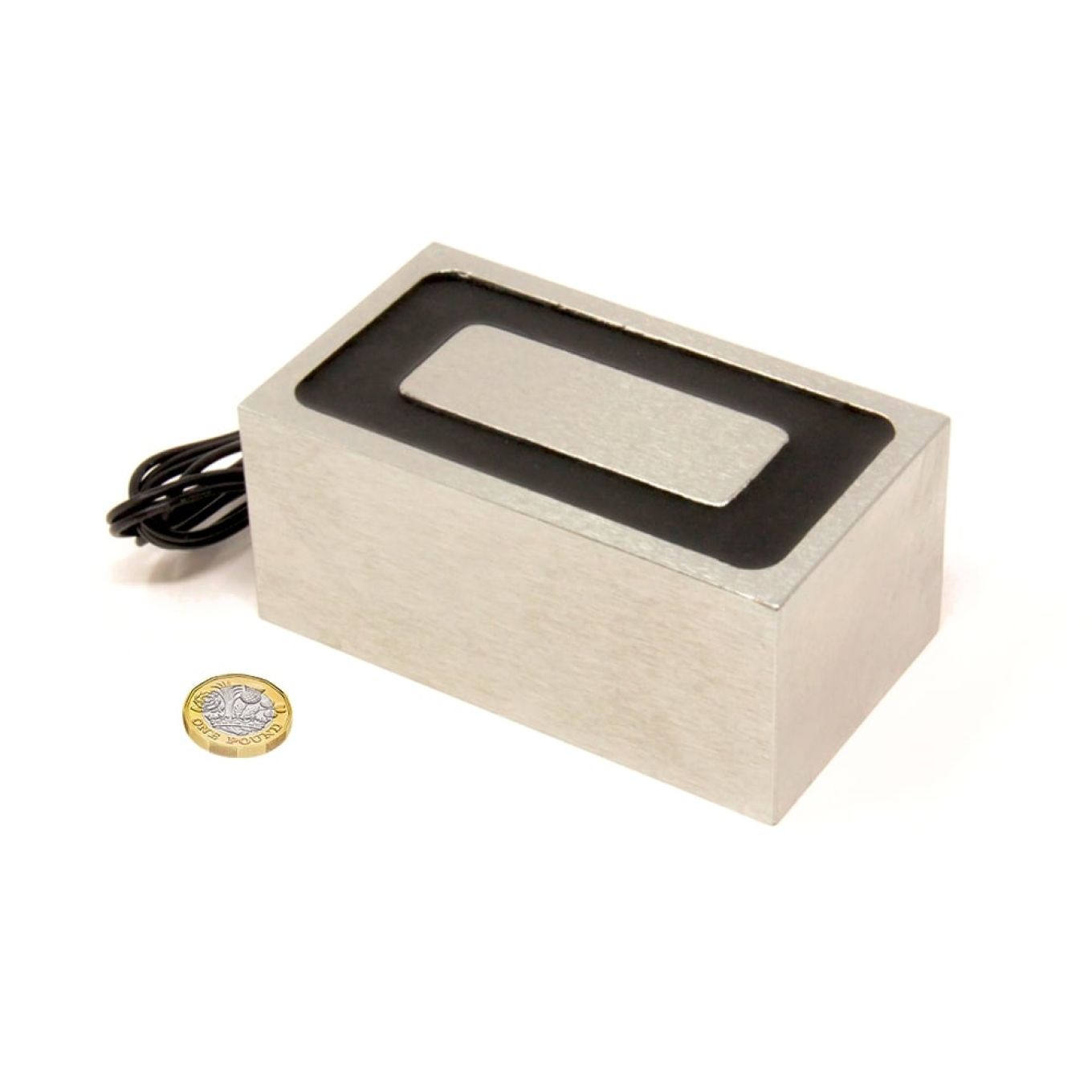

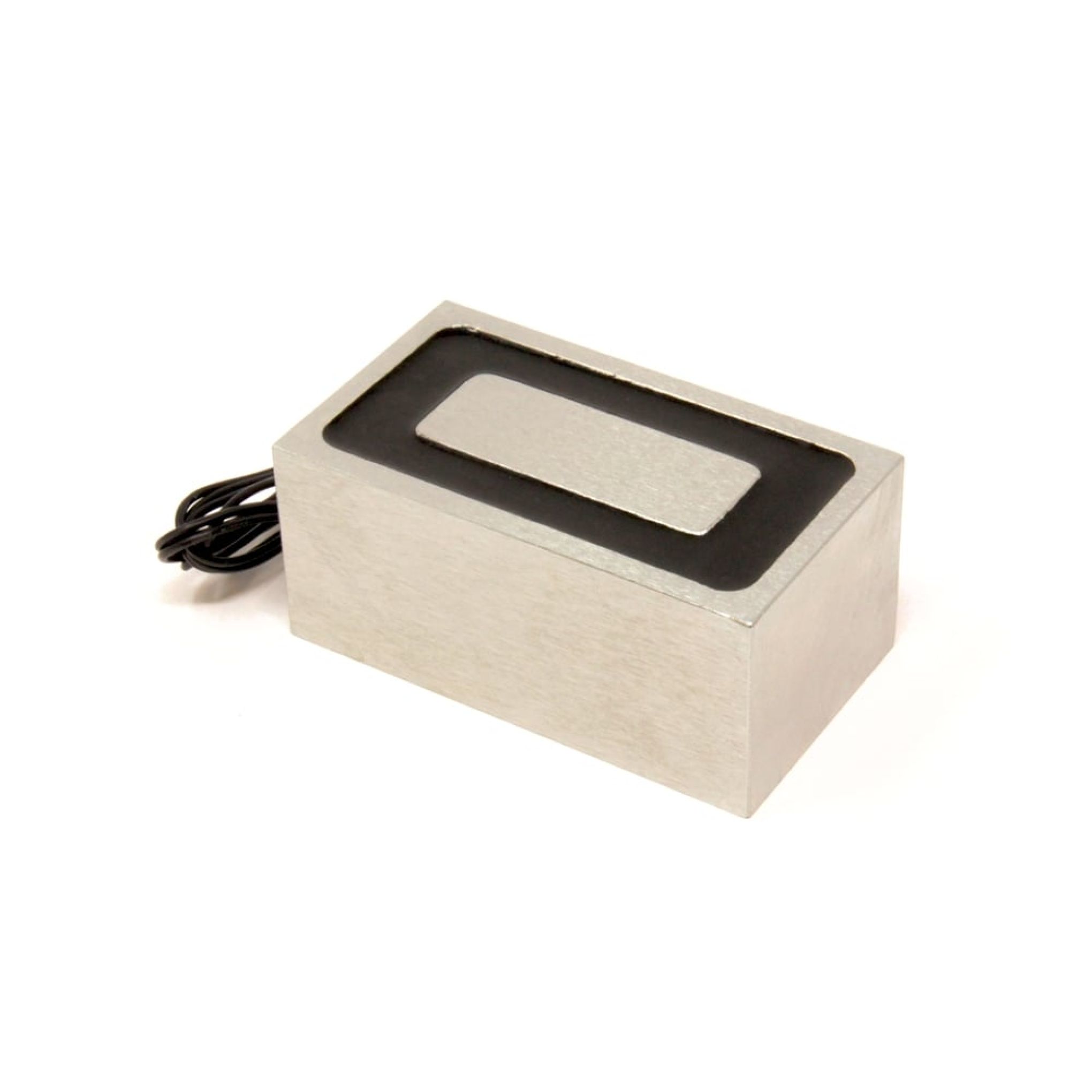

Electromagnet with 1/4-20 UNC Mounting Hole - 12V DC/12W - 2-3/8 in. x 2 in. thick - 882lbs Pull
*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*
Easy to use electromagnet for lifting and holding applications. These magnets require a power source; when electricity is passed through them they produce a strong magnetic field and when the power is removed, the magnetic field disappears instantly.
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
- 114.3mm x 63.5mm x 50.8mm thick.
- 4.5 in. x 2.5 in. x 2 in. thick.
- Magnet field generated when an electric current is applied.
- Each magnet has a safe working limit (SWL) of up to 400kg (882lbs) in a vertical direct position when electricity is applied.
- Zinc Plated Mild Steel.

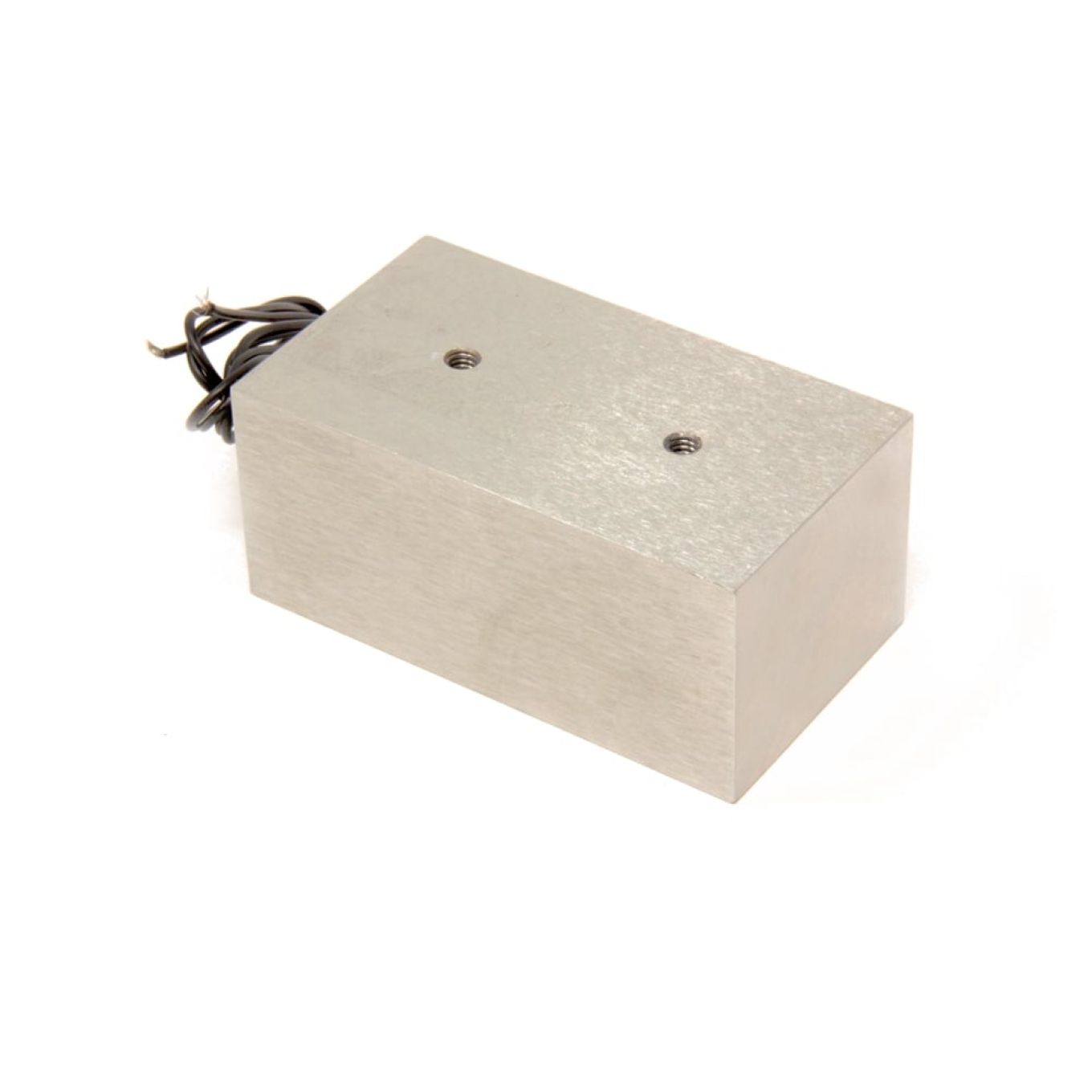

- Supplied with 1/4-20 UNC mounting hole on the reverse for fixing and mounting.
- Operating voltage 12V DC / 12W, power source not included.
These super strong electromagnets, commonly referred to as ‘energise to hold’ magnets, generate a magnetic field when they are connected to a live direct current and have zero magnetic strength when ‘switched off’. Electromagnets are commonly used in door and hatch mechanisms on machinery, in automated assembly lines, for robotics and the lifting and handling of ferrous materials. Each magnet is supplied with approximately 600mm (23.62 in.) (23.62 in.) of wire for connecting to a direct current (DC) power source.
