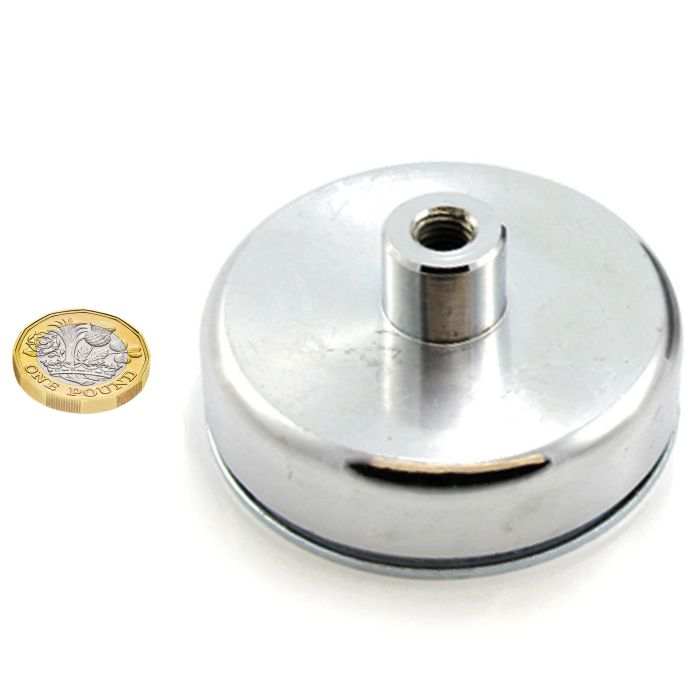

Ceramic Pot Magnet with M10 thread - 3-1/8 in. dia x 1-3/8 in. tall - 132.3lbs Pull
*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*

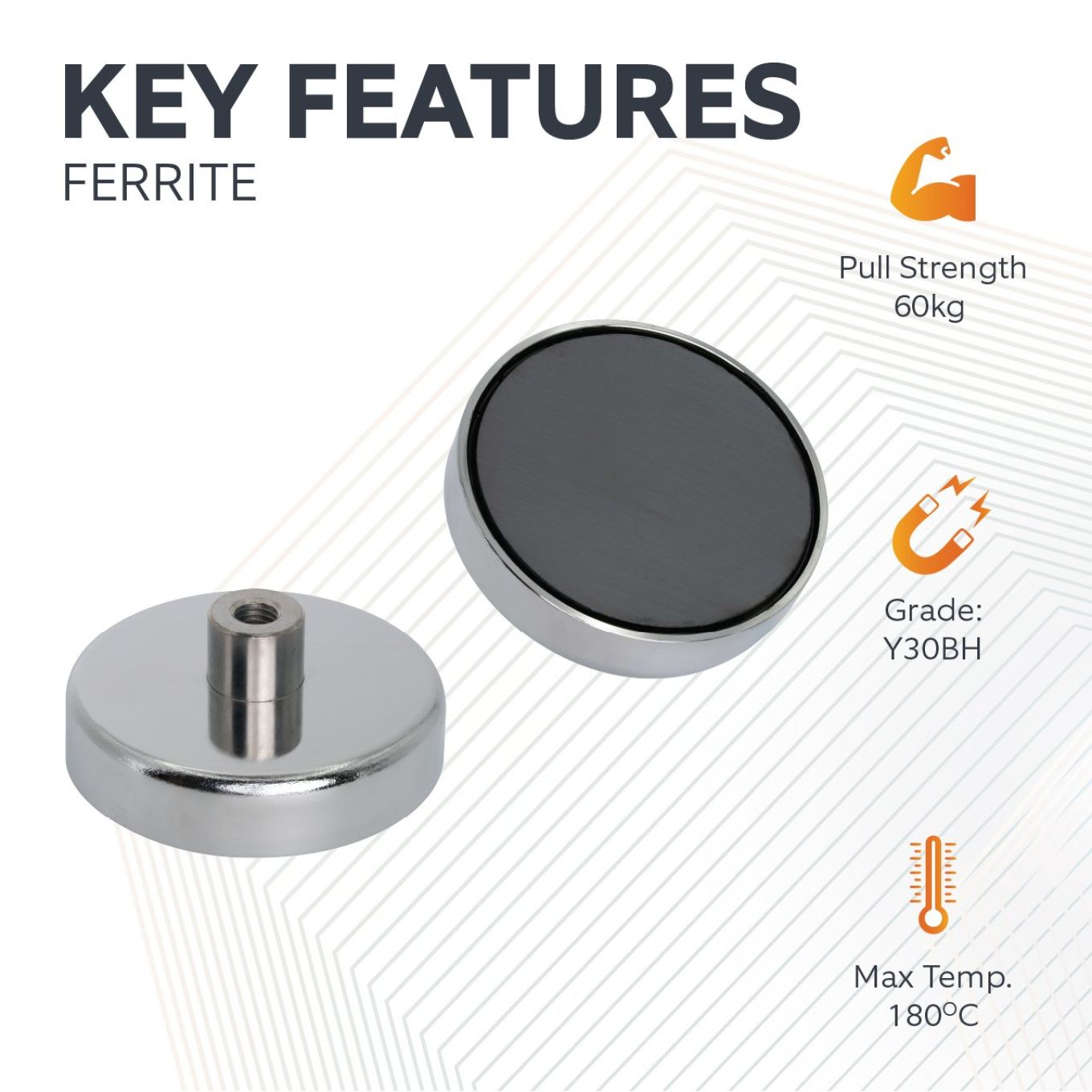

These large, Ceramic (Ferrite) (Y30BH) pot magnets are chrome plated with a M10 threaded collar on the non-magnetic face. Magnetism is concentrated on one face to provide the maximum holding force.
Pack quantity 1: 1 Pot magnet
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:

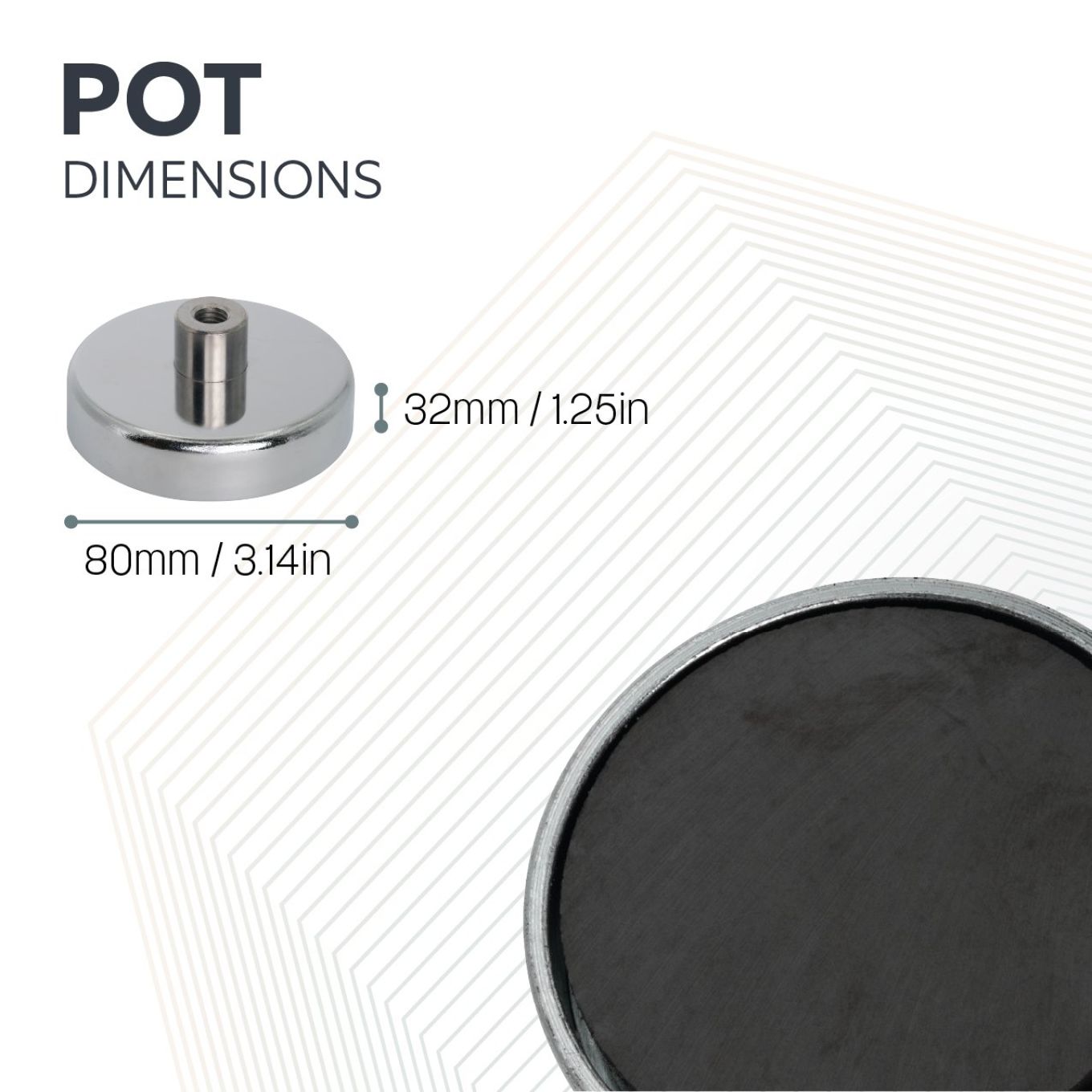

- 80mm diameter x 32mm thick with an M10 15mm deep threaded collar.
- 3.15 in. diameter x 1.26 in. thick with an M10 0.59 in. deep threaded collar.
- Each magnet can support 60kg (132.3lbs) pull vertically from the magnetic face when in flush contact with a mild steel surface of equal thickness.
- Chrome plated steel shell.

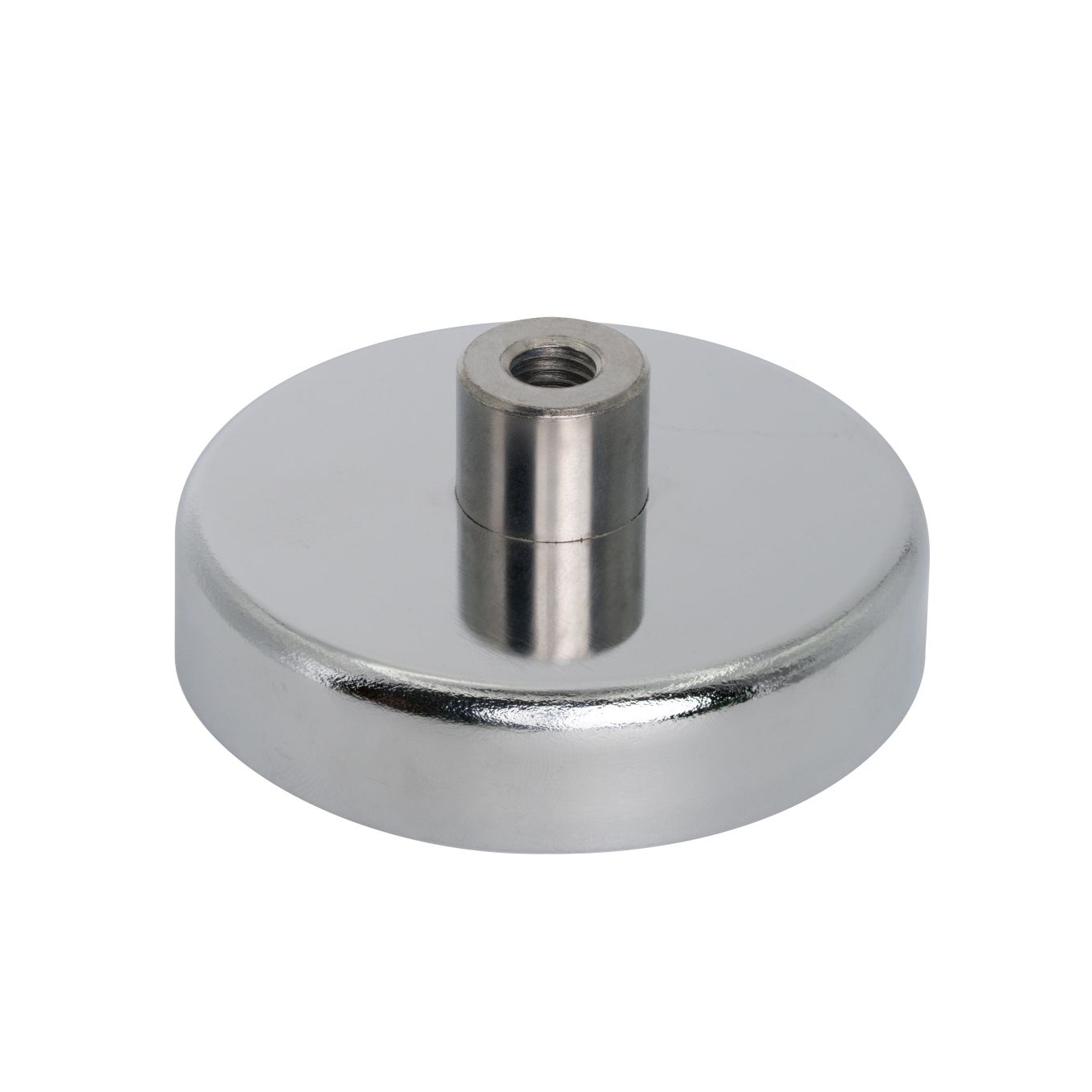

- M10 threaded collar for assembly.

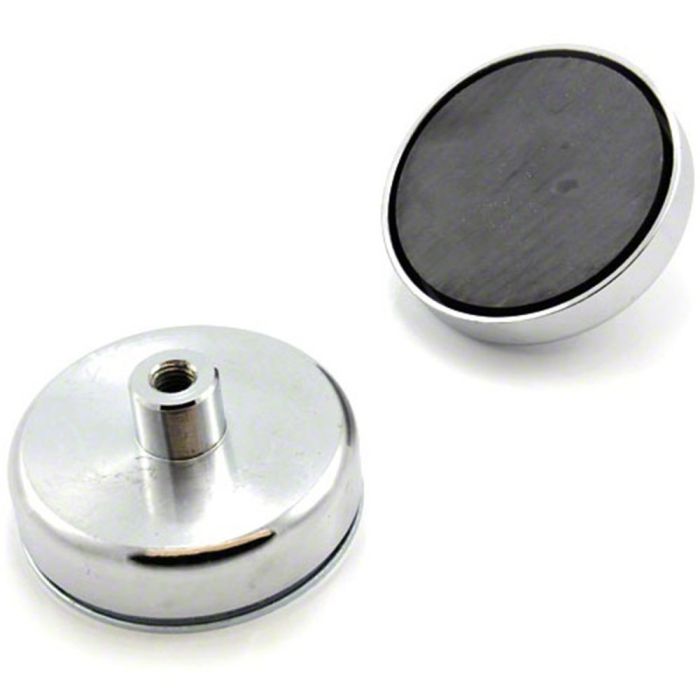

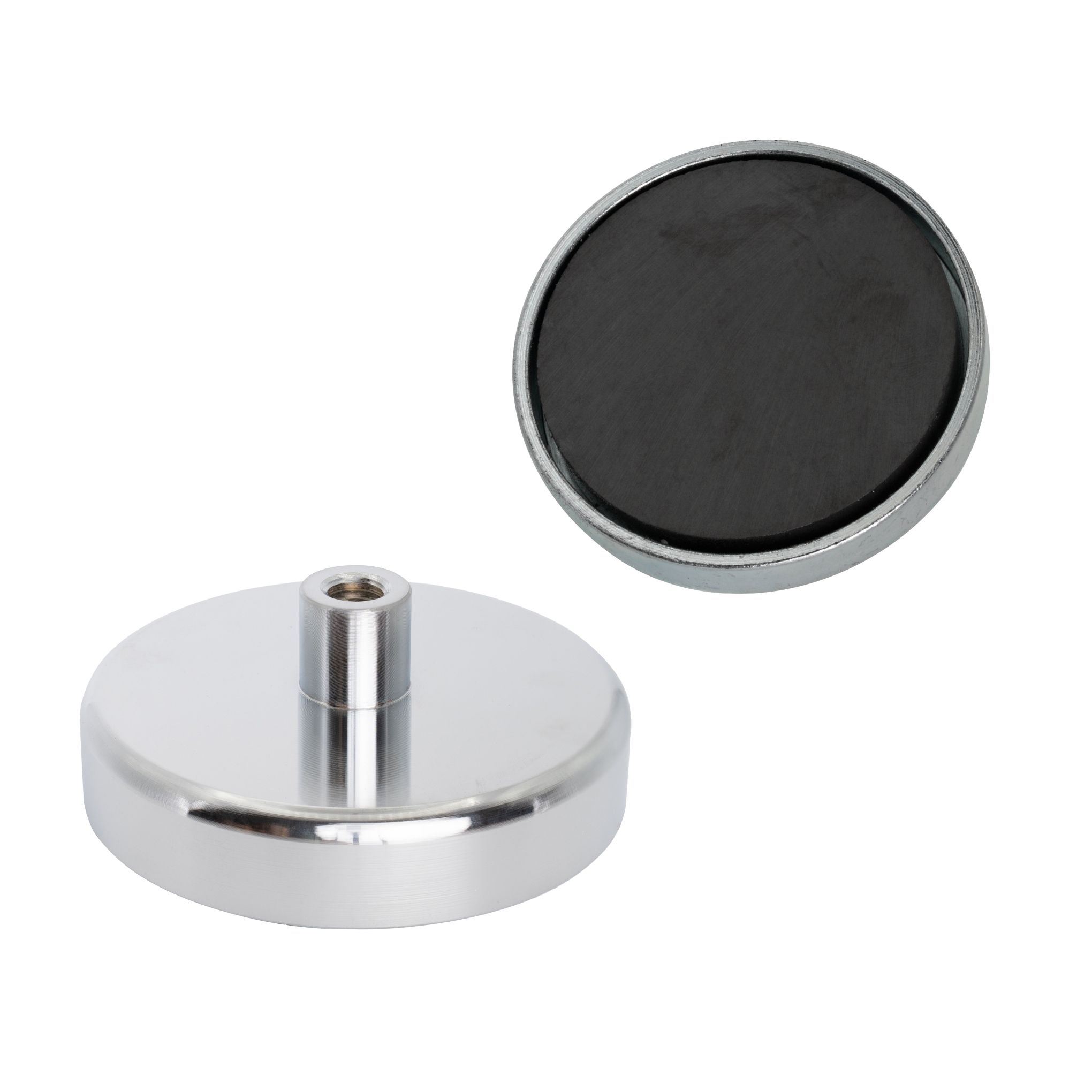

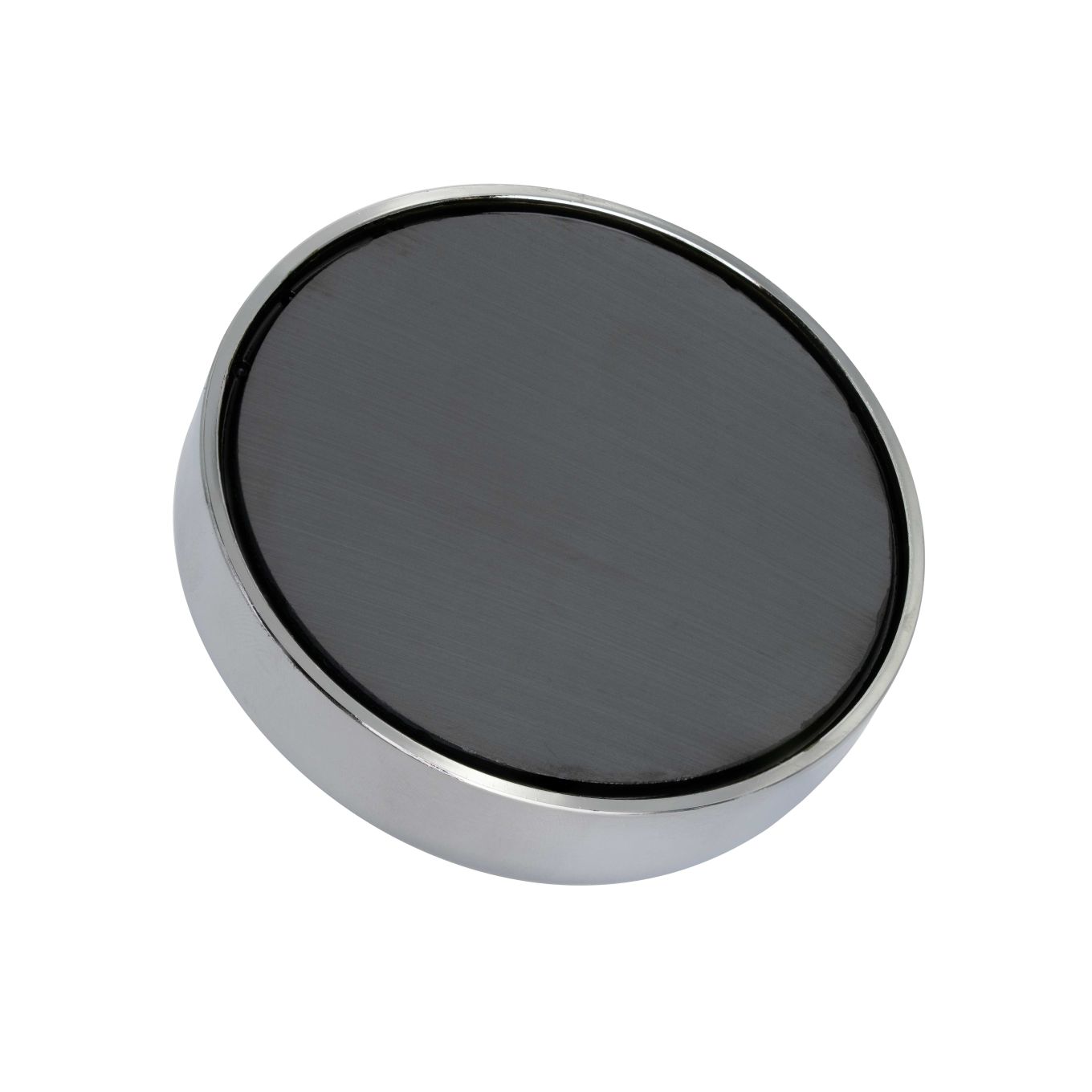

Outstanding value for money, these ferrite pot magnets are made of a ferrite magnet sunken in to a chrome-plated steel shell meaning that the north pole is on the centre of the magnetic face and the south pole is on the outer edge around it. The steel pot increases the adhesive force of the magnets giving them a strong hold for their size. An added advantage of pot magnets is that they are resistant to chipping or cracking following constant impact with a steel surface. These magnets come with a safe-handling warning; because they are so powerful they can be dangerous if not handled carefully.
