Ceramic Pot Magnet - 2-9/16 in. dia x 3/8 in. thick x 5/16 in. hole - 86lbs Pull
*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*

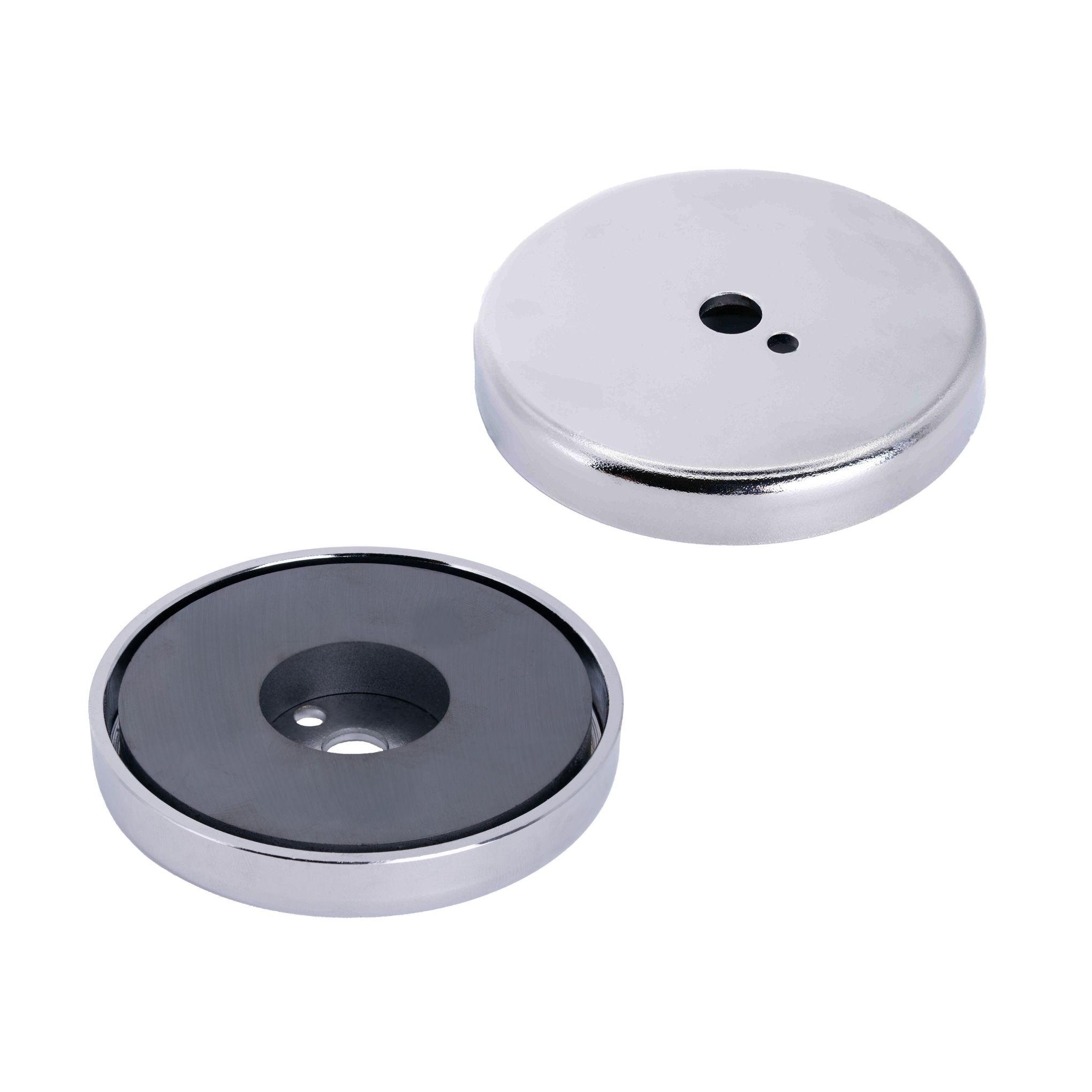

These medium-sized, Ceramic (Ferrite) (Y30BH) pot magnets are chrome plated with a plain through hole on the non-magnetic face. Magnetism is concentrated on one face to provide the maximum holding force.
Pack quantity 1: 1 Pot magnet
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:

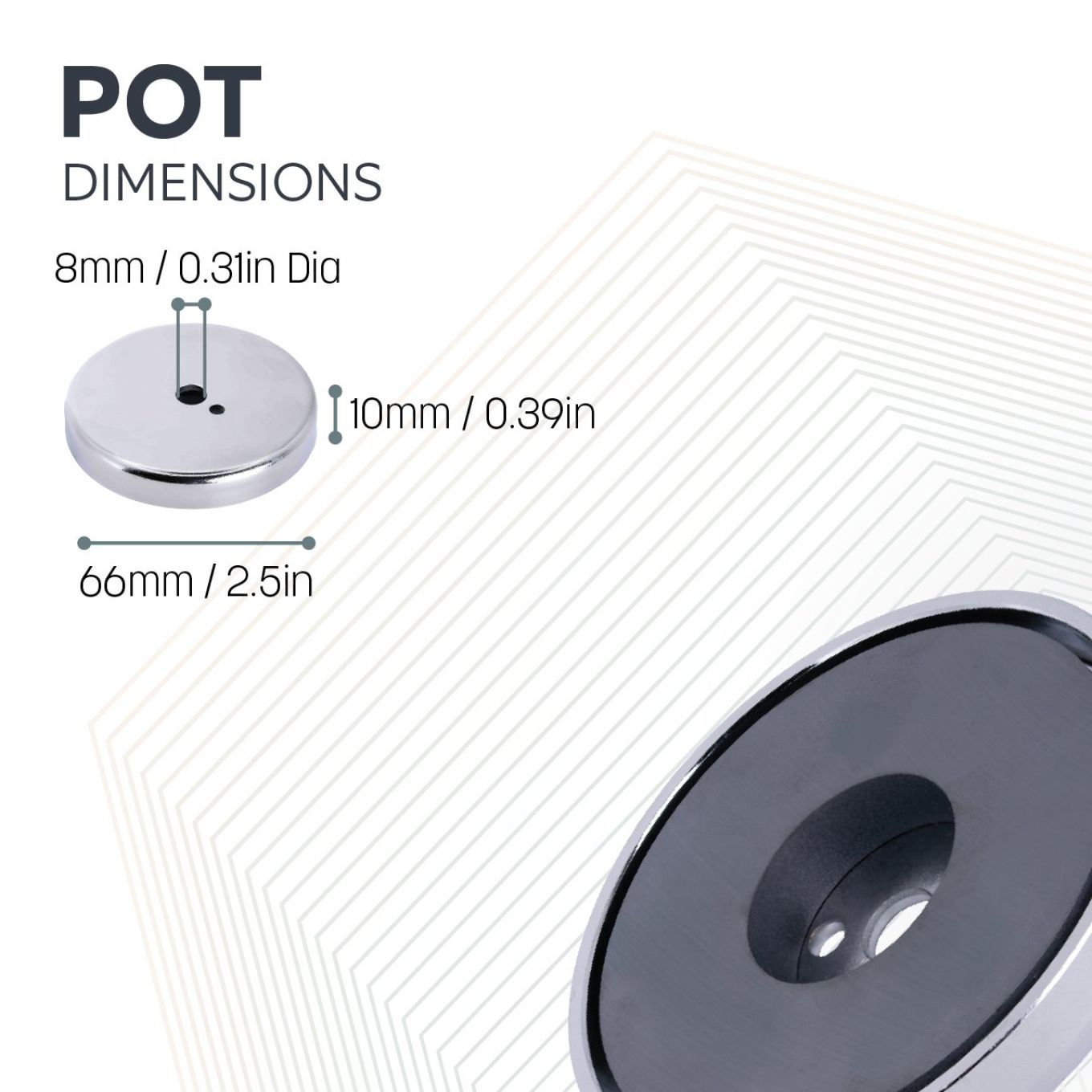

- 66mm diameter x 10mm thick with an 8mm diameter plain through hole for a screw or bolt (plus secondary 4mm hole).
- 2.6 in. diameter x 0.39 in. thick with an 0.32 in. diameter plain through hole for a screw or bolt (plus secondary 0.16 in. hole).

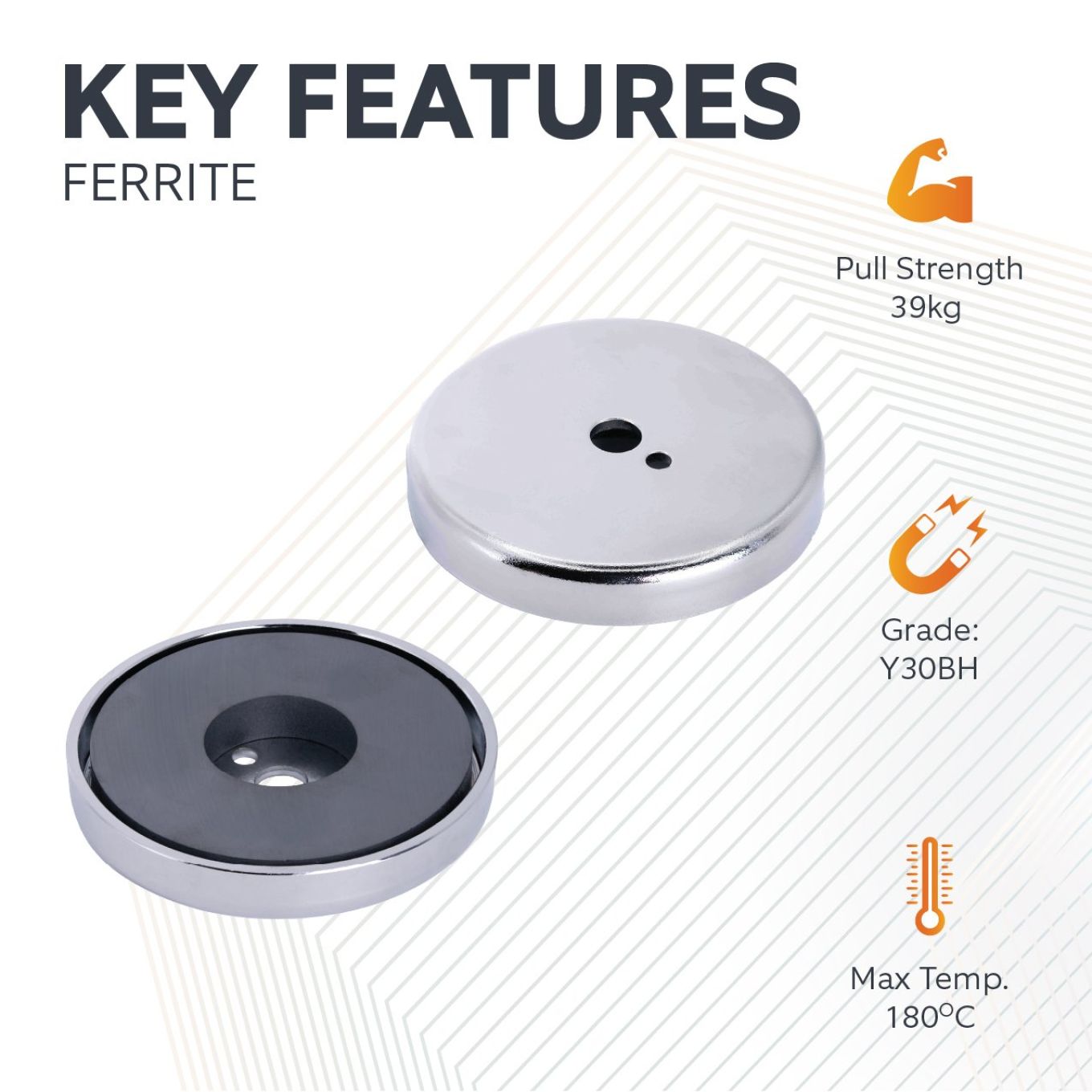

- Each magnet can support 39kg (86lbs) pull vertically from the magnetic face when in flush contact with a mild steel surface of equal thickness.

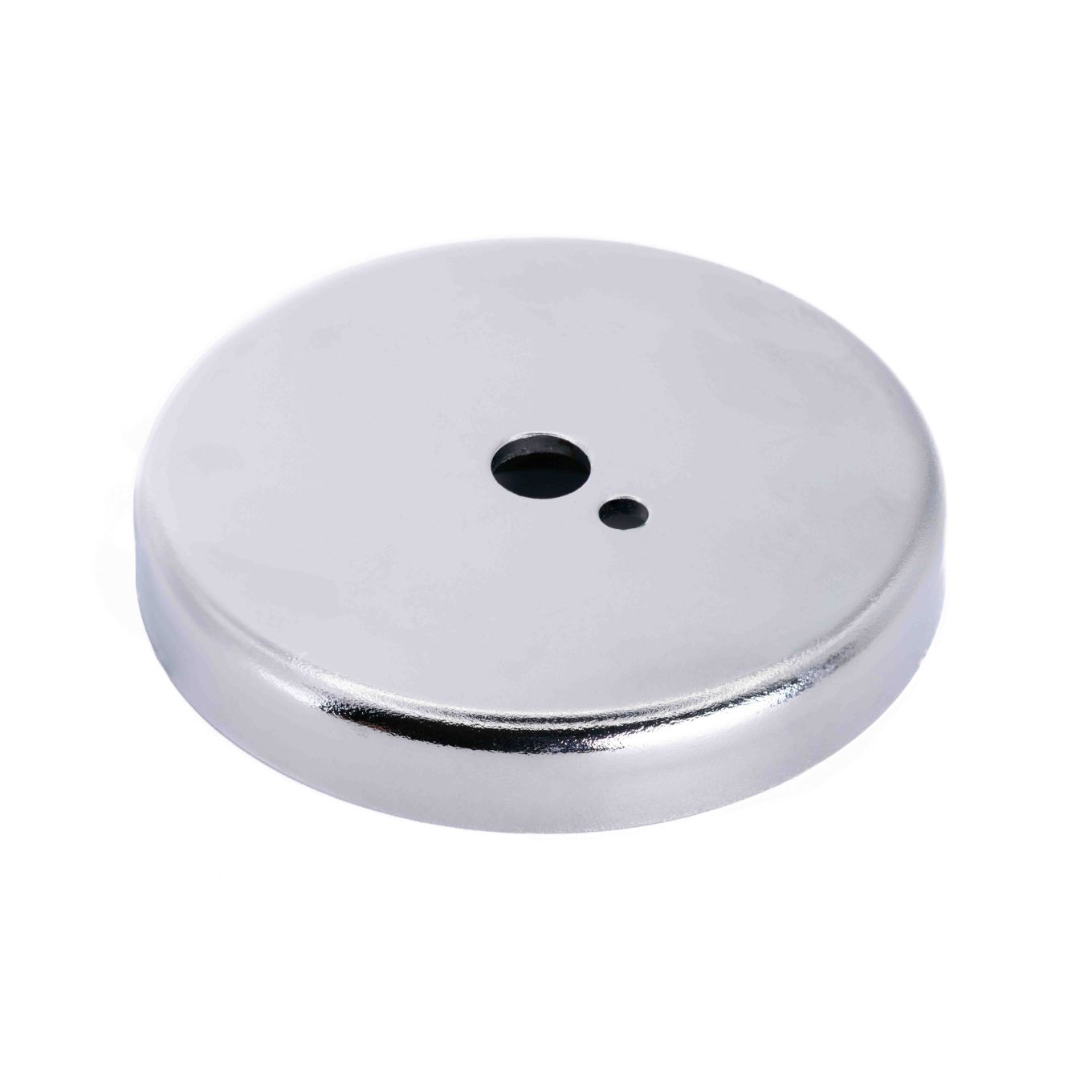

- Chrome plated steel shell.
- Can be fixed in place with 8mm (0.3 in.) diameter cap head screws.

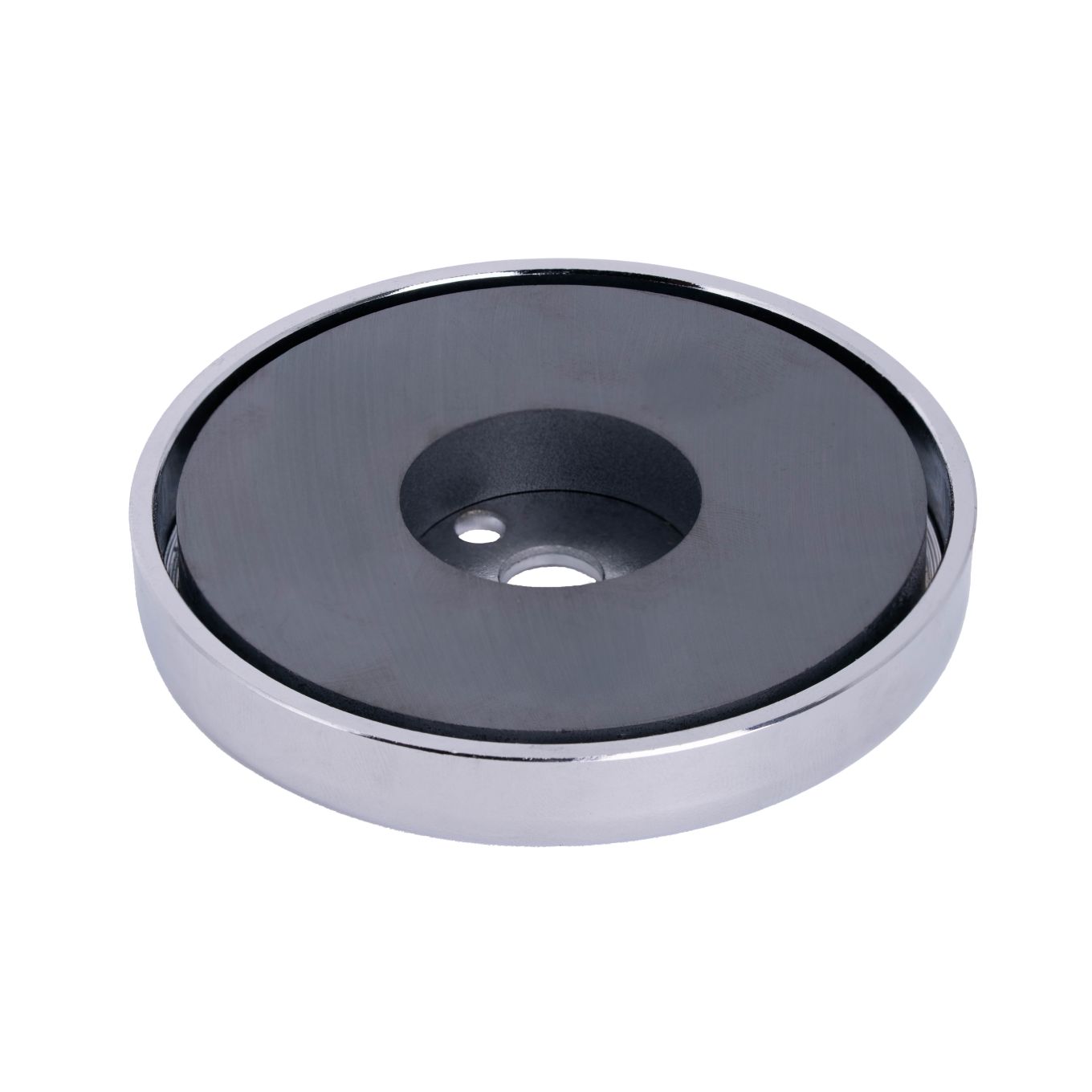

Outstanding value for money, these ferrite pot magnets are made of a ferrite magnet sunken in to a steel shell meaning that the north pole is on the centre of the magnetic face and the south pole is on the outer edge around it. The steel pot increases the adhesive force of the magnets giving them a strong hold for their size. An added advantage of pot magnets is that they are resistant to chipping or cracking following constant impact with a steel surface. These magnets come with a safe-handling warning; because they are so powerful they can be dangerous if not handled carefully.
