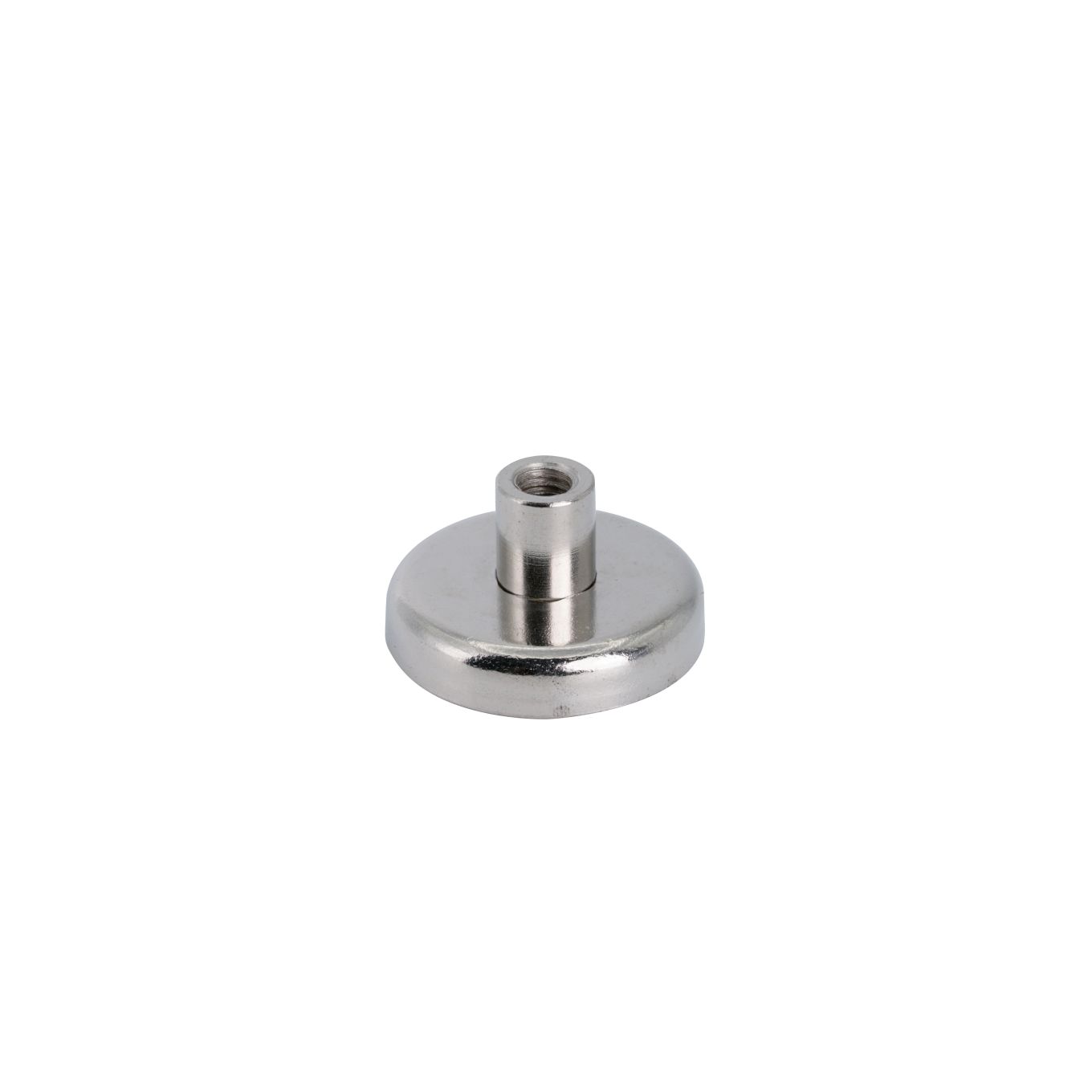

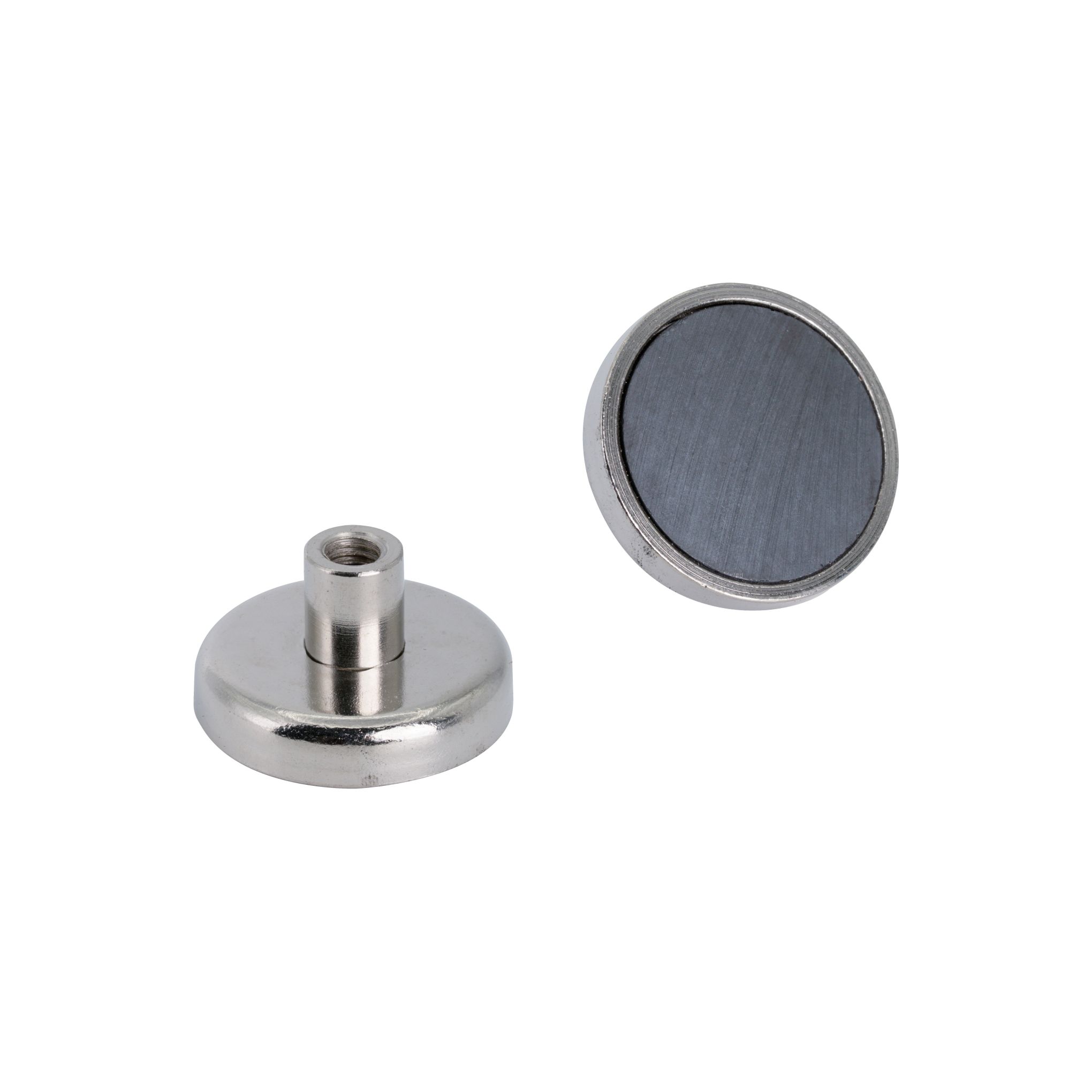

Ceramic Clamping Magnet - 1-1/4 in. dia - 12.79lbs Pull
*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*

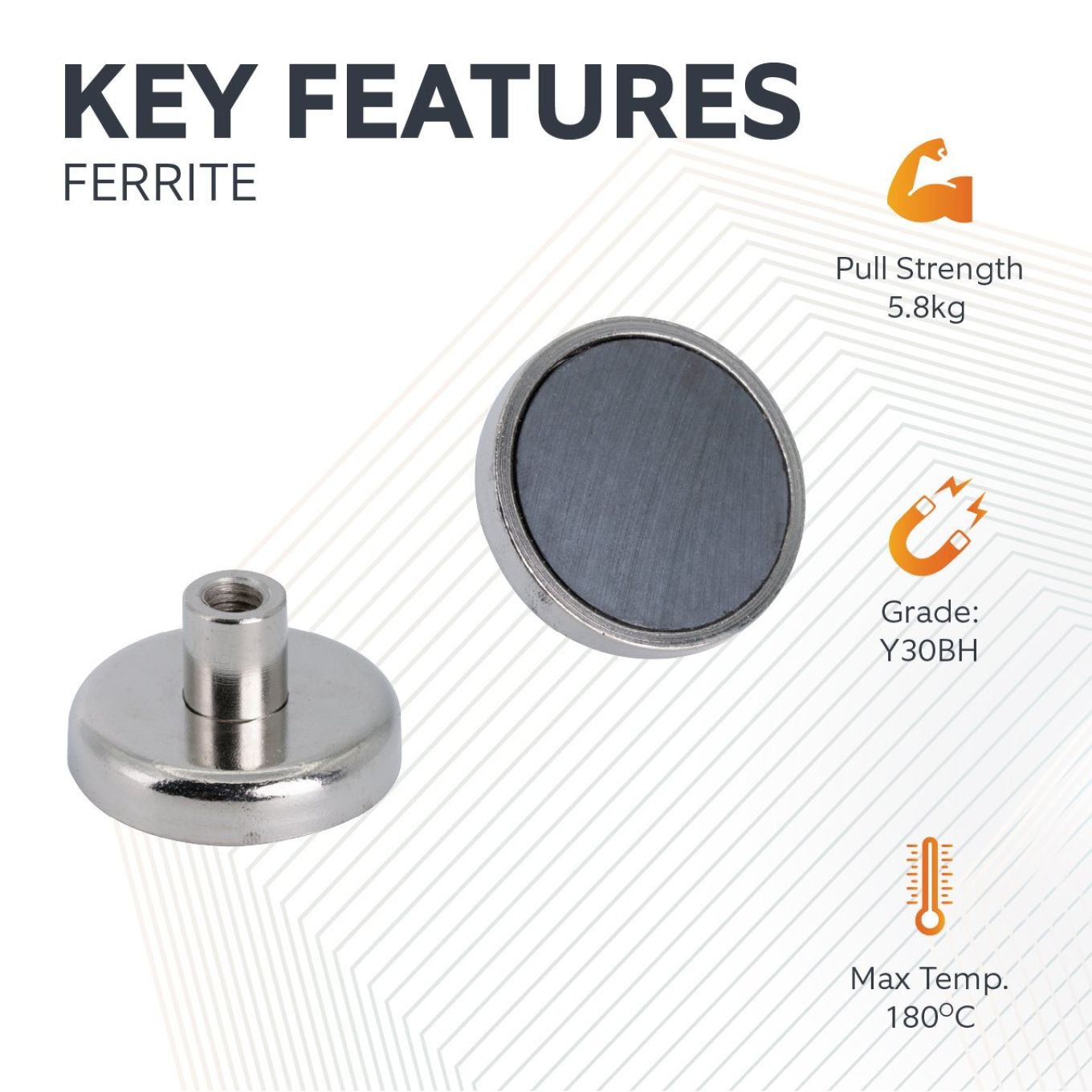

These large Ceramic (Ferrite) (Y30BH) clamping magnets provide a really strong clamping force for their price offering great value for money.
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:

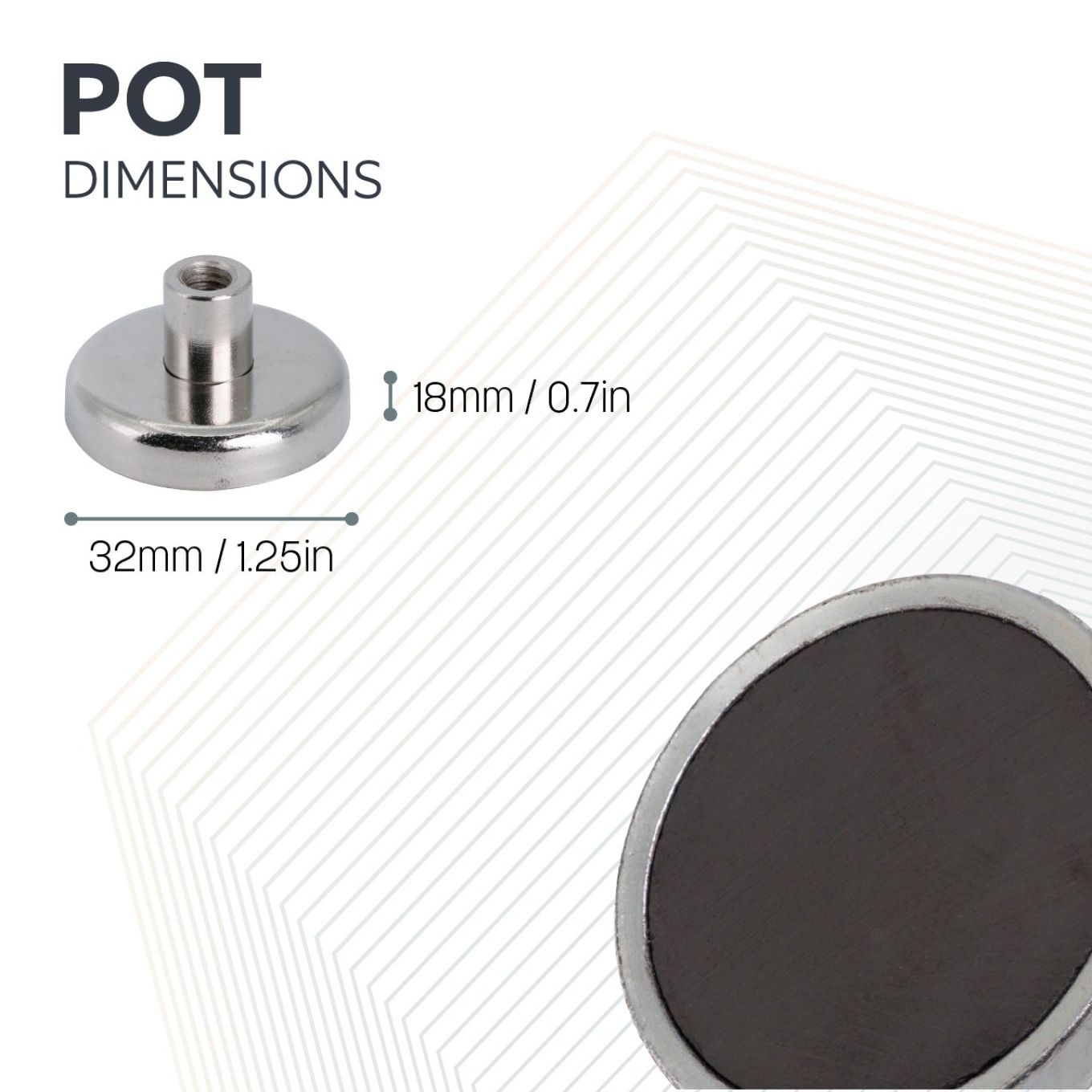

- 32mm diameter x 45mm high.
- 1.27 in. diameter x 1.77 in. high.
- +/-0.1mm (0.0004 in.) tolerance.
- Each magnet can support 5kg (11lbs) pull vertically from the magnetic face when in flush contact with a mild steel surface of equal thickness.

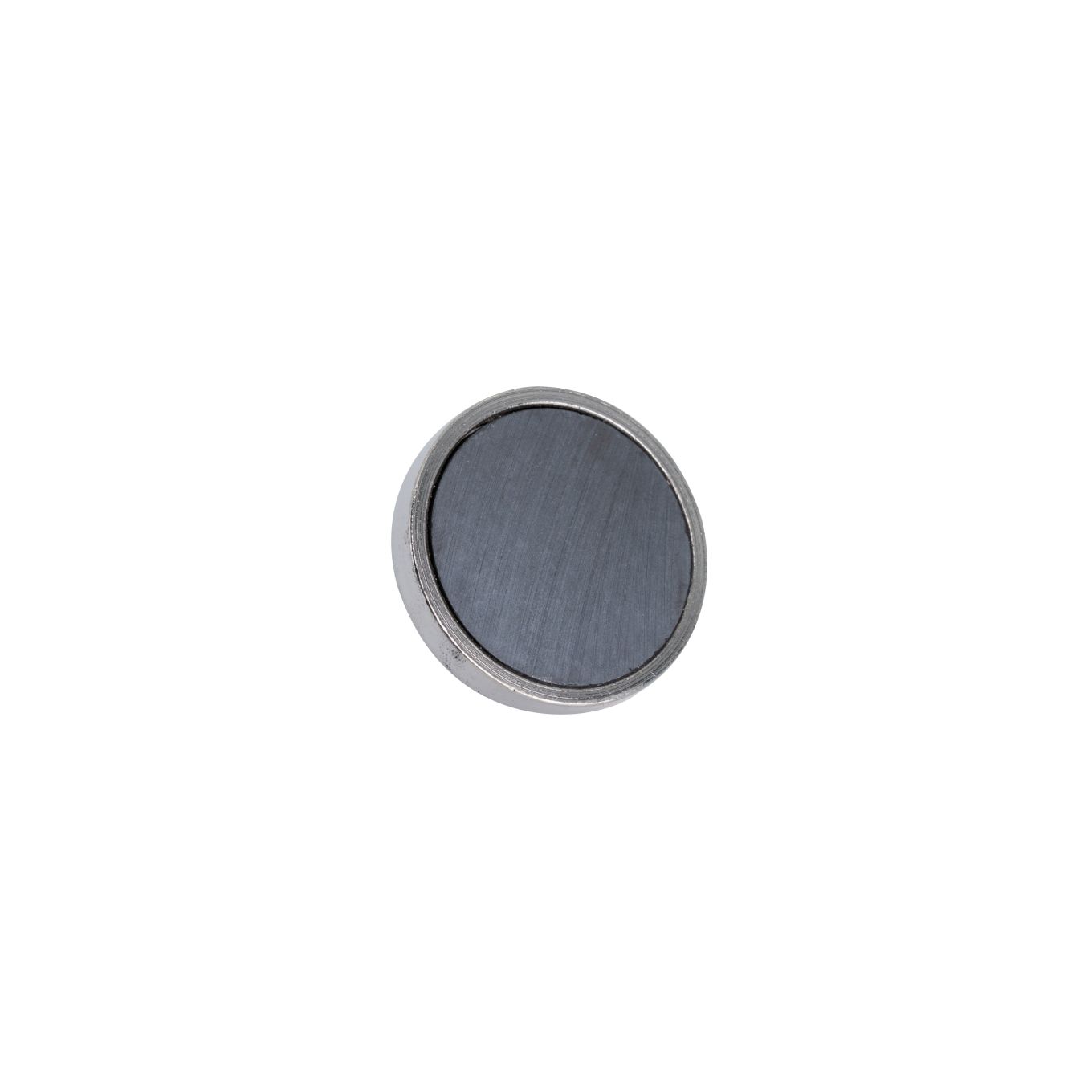

These large ferrite clamping magnets provide a 5kg (11.03lbs) clamping force and are great value for money. The ferrite magnets are sunken in to a steel shell meaning that the south pole is on the centre of the magnetic face and the north pole is on the outer edge around it. The steel pot increases the adhesive force of the magnets giving them an incredible hold for their size. These magnets come with a safe-handling warning; because they are so powerful they can be dangerous if not handled carefully.
