Ceramic Channel Magnet - 3 in. x 29/32 in. x 1/4 in. thick - 22.05lbs Pull
Code: CP7623-1
*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*

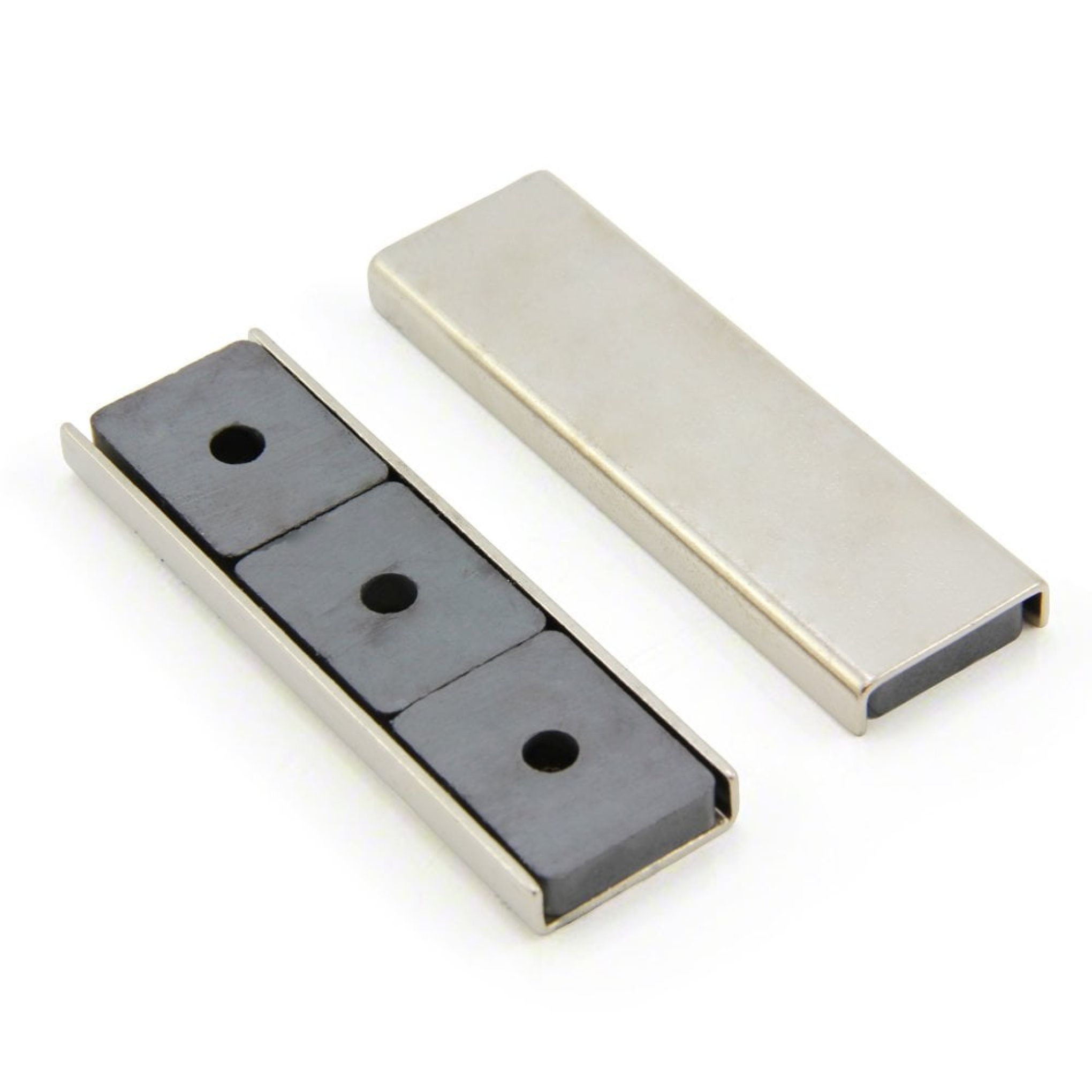

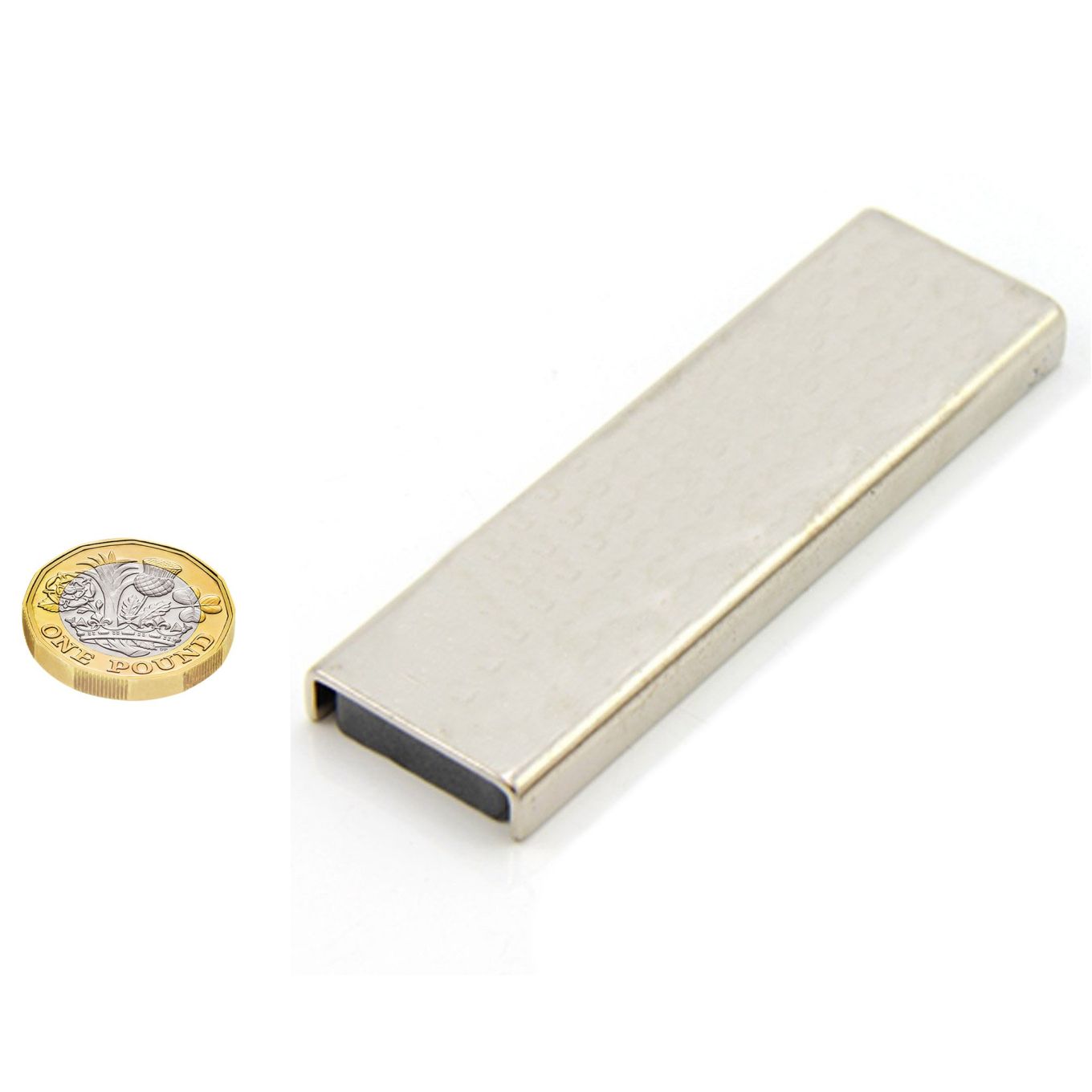

Ceramic (Ferrite) (Y30BH) steel-cased channel magnet - this innovative design provides 22.05lbs vertical pull at great value.
Pack quantity 1: 1 Channel magnet
Choose Pack Size:
$2.08
In Stock
NEXT DAY DELIVERY
available to the uk
STANDARD DELIVERY
From £2.25 + VAT.
100% SECURE
Online ordering.
NEXT DAY DELIVERY
available to the uk
STANDARD DELIVERY
From £2.25 + VAT.
100% SECURE
Online ordering.
Ask A Question
Please fill out the following form to Ask a Question about this product:
Email A Friend
Please fill out the following form to Tell a Friend about this product:
- 76mm x 23mm x 6.3mm.
- 2.99 in. x 0.91 in. x 0.25 in.
- Rivet Fixing for 2mm (0.08 in.) Screw.
- Innovative rectangular design with steel casing which greatly increases performance.
- The magnet's north pole is on the centre of the magnet's face with the south pole on the outer edge meaning both poles are on the same face.
- 22.05lbs maximum pull from the magnetic surface when in flush contact with a mild steel surface of equal thickness to the magnet.
- Resistant to corrosion so no extra coating required.
- A strong adhesive like Araldite or Loctite is required to fix the magnet's steel casing to another surface.
These channel magnets offer excellent value with a maximum pull strength of 10kg (22.05lbs). The innovative channel design with steel casing greatly increases performance. Each has a maximum operating temperature of 180oC. They are commonly used around the home and for holding machine parts in place.
