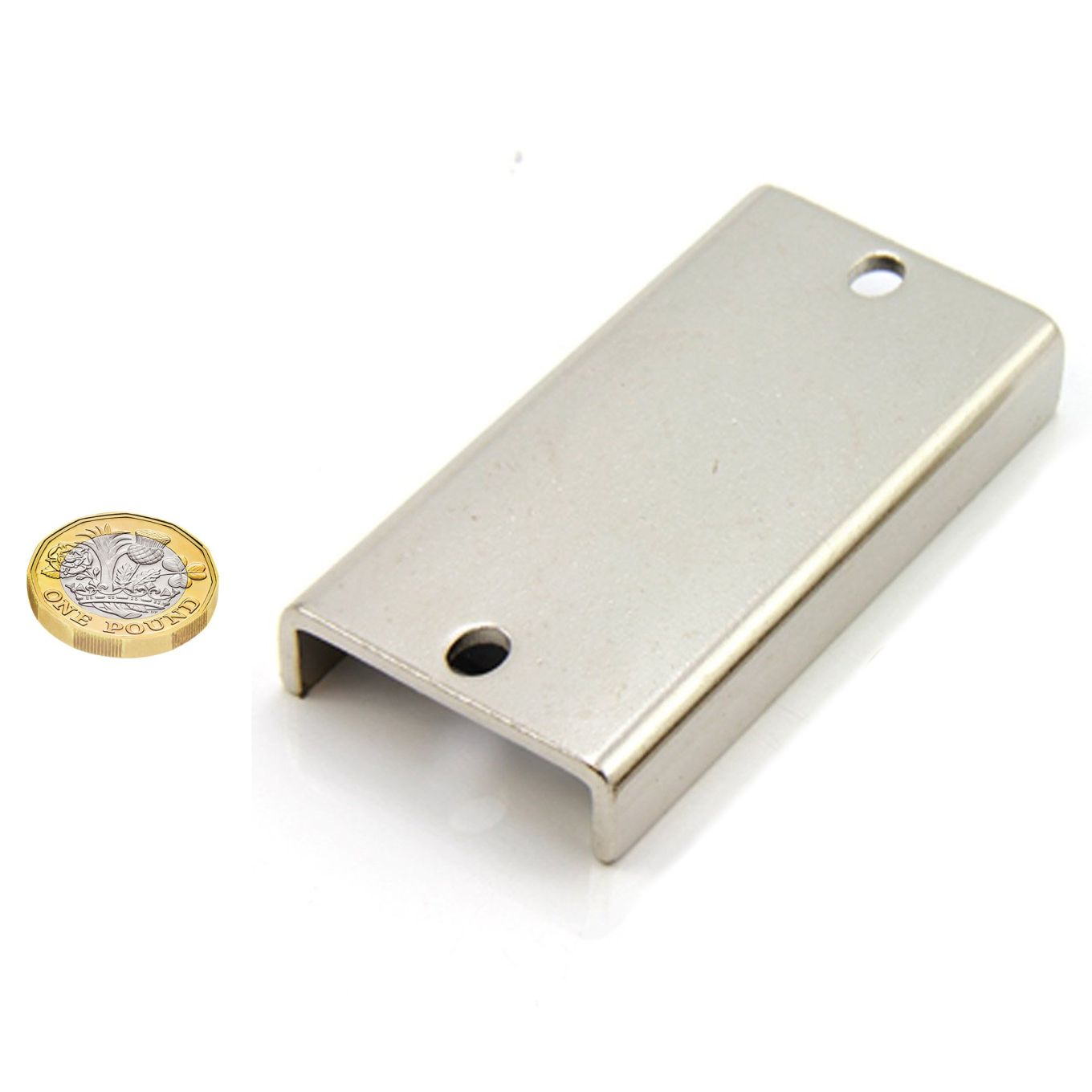

Ceramic Channel Magnet - 3 in. x 1-9/16 in. x 3/8 in. thick w/ 1/4 in. x 3/16 in. holes - 55.13lbs Pull
*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*

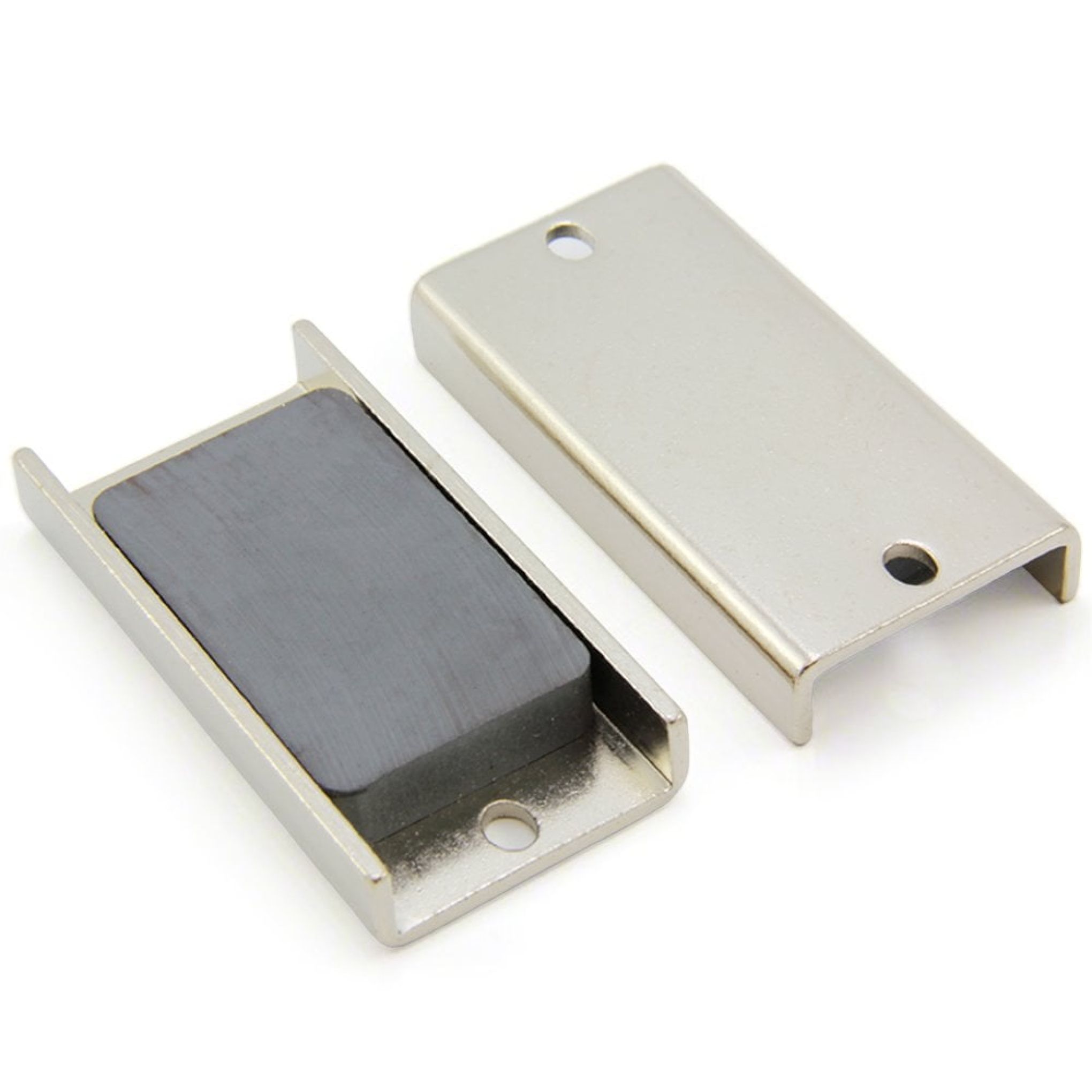

Ceramic (Ferrite) (Y30BH) steel-cased channel magnet with fixing holes at each end - this innovative design provides 55.12lbs vertical pull at great value.
Pack quantity 1: 1 Channel magnet
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:
- 76mm x 38mm x 11.6mm with two 6.5mm x 5mm holes.
- 2.99 in. x 1.5 in. x 0.46 in. with two 0.26 in. x 0.2 in. holes.
- Innovative rectangular design with steel casing which greatly increases performance.
- The magnet's north pole is on the centre of the magnet's face with the south pole on the outer edge meaning both poles are on the same face.
- 55.13lbs maximum pull from the magnetic surface when in flush contact with a mild steel surface of equal thickness to the magnet.
- Resistant to corrosion so no extra coating required.
These channel magnets offer excellent value with a maximum pull strength of 25kg (55.13lbs) (55.13lbs). The innovative channel design with steel casing greatly increases performance. Each magnet can be screwed into place using two 4mm (0.16 in.) screws and has a maximum operating temperature of 180oC. They are commonly used around the home and for holding machine parts in place.
