Ceramic Channel Magnet - 1 in. x 1 in. x 1/4 in. thick x 1/8 in. hole - 13.45lbs Pull
*Measurements have been rounded to the nearest fraction inch - please check the product description for specific measurements.*

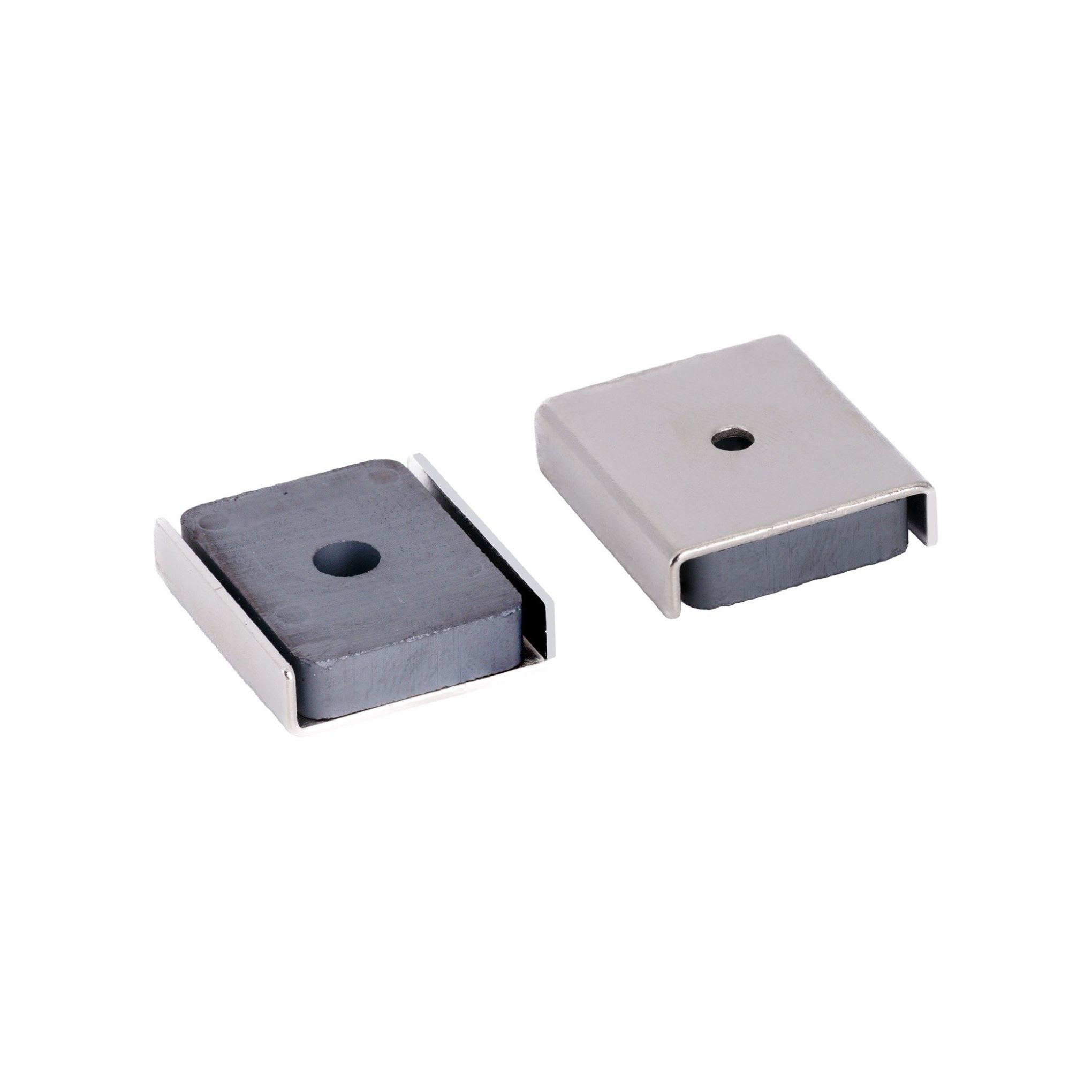

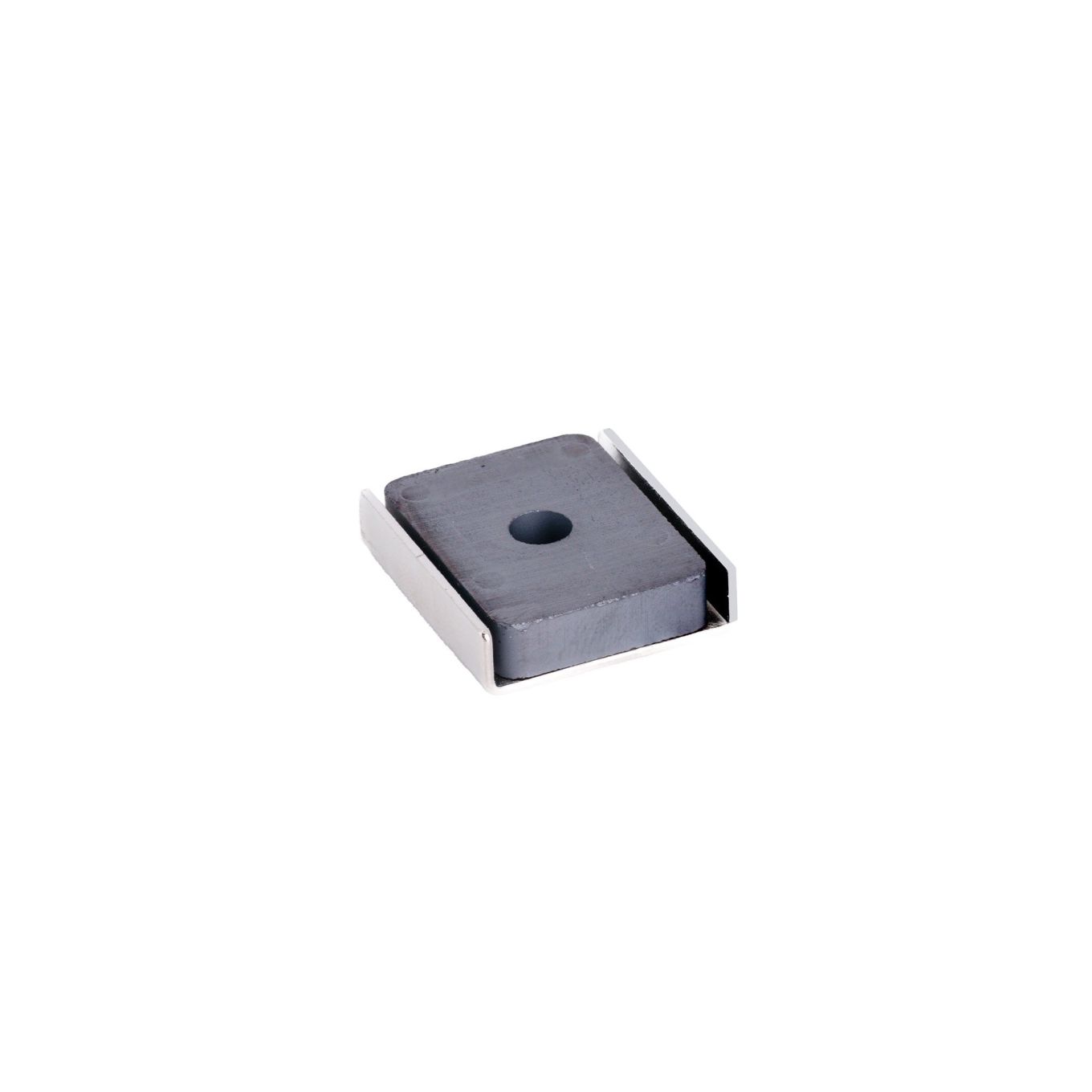

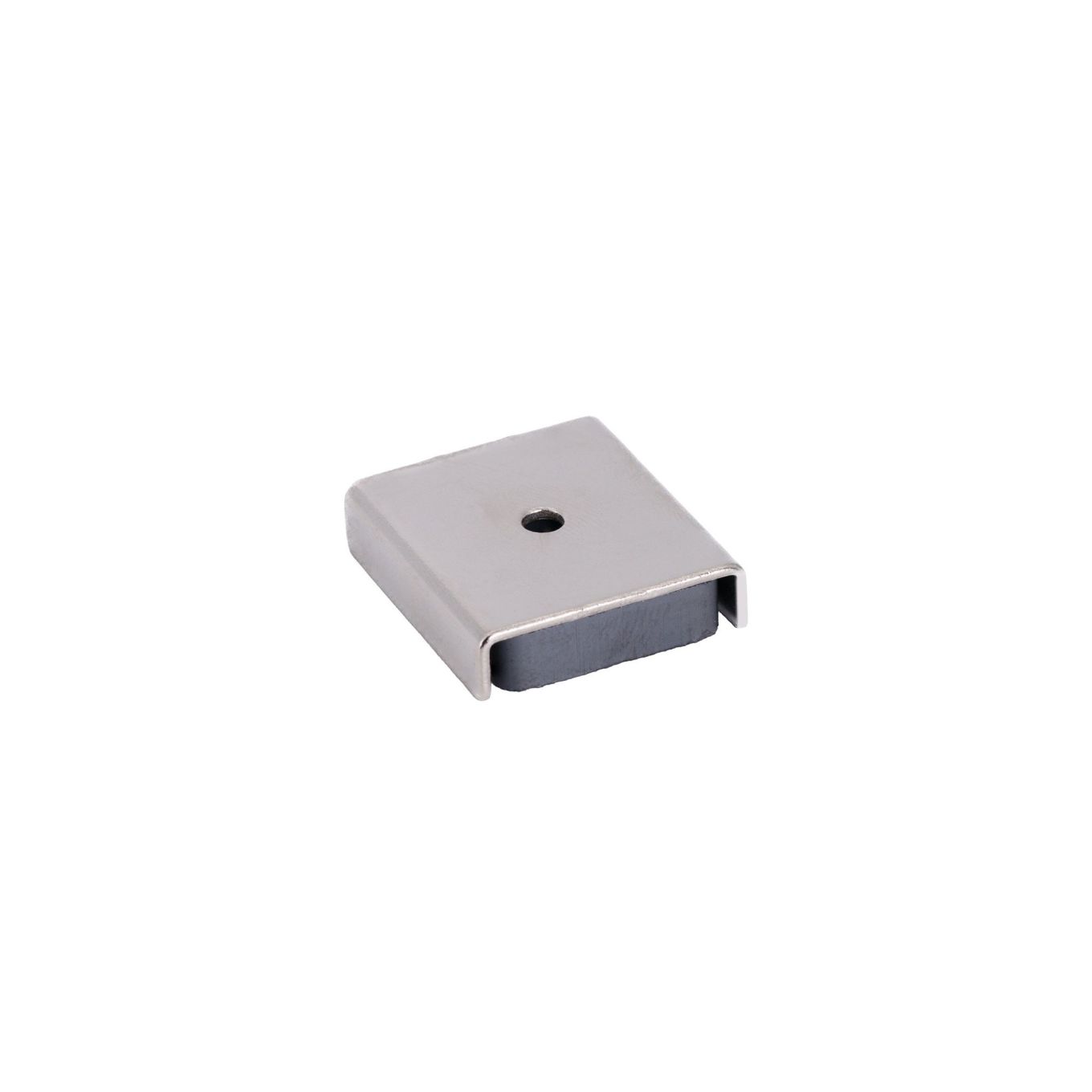

Ceramic (Ferrite) (Y30BH) steel-cased channel magnet with central fixing hole - this innovative design provides 13.45lbs vertical pull at great value.
Pack quantity 1: 1 Channel magnet
Please fill out the following form to Ask a Question about this product:
Please fill out the following form to Tell a Friend about this product:

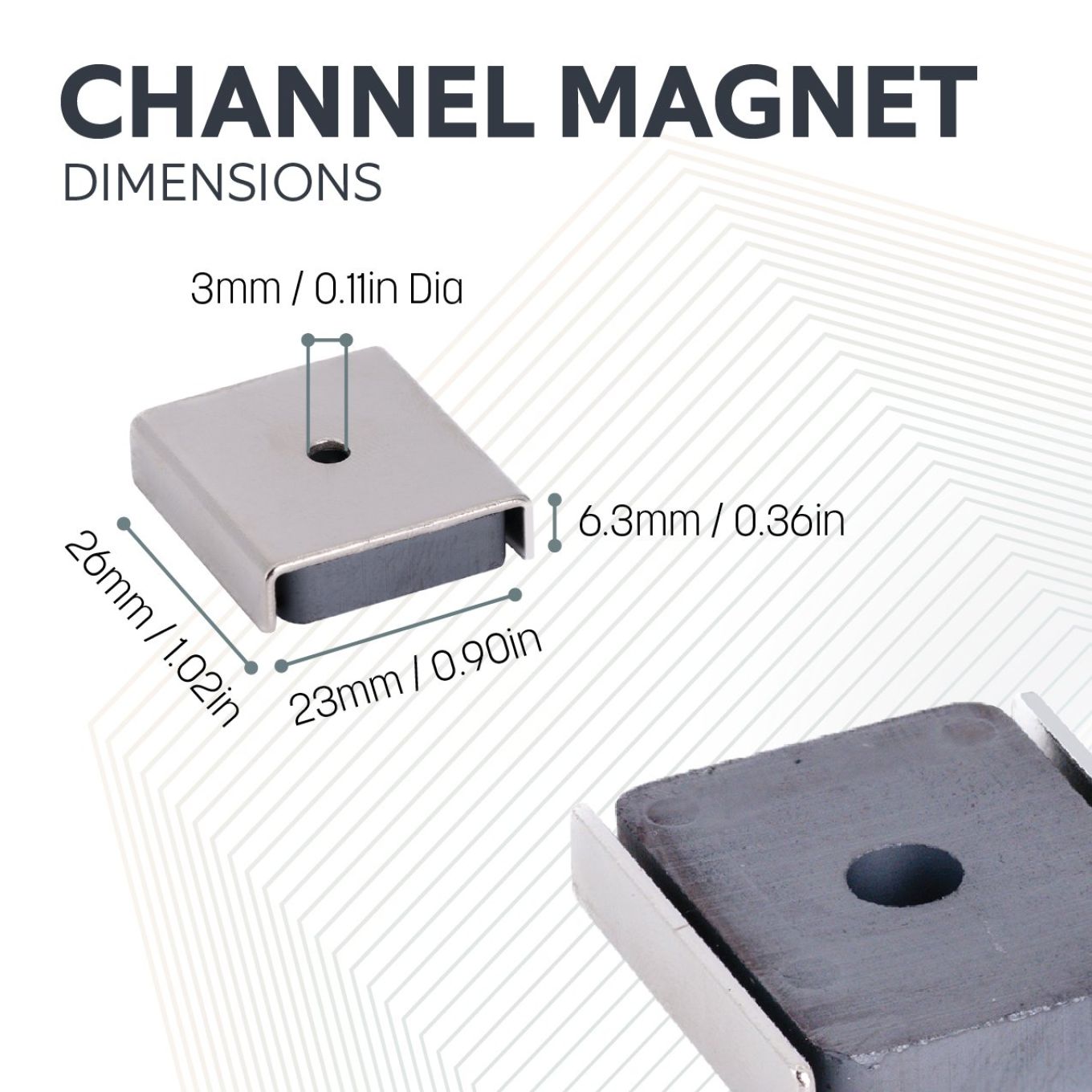

- 26mm x 23mm x 6.3mm with 3mm hole.
- 1.02 in. x 0.91 in. x 0.25 in. with 0.12 in. hole.
- Rivet Fixing for 2mm (0.08 in.) Screw.
- Innovative rectangular design encased and glued within a steel casing which greatly increases performance.
- The magnet's north pole is on the centre of the magnet's face with the south pole on the outer edge meaning both poles are on the same face.
- 13.45lbs maximum pull from the magnetic surface when in flush contact with a mild steel surface of equal thickness to the magnet.
- Resistant to corrosion so no extra coating required.

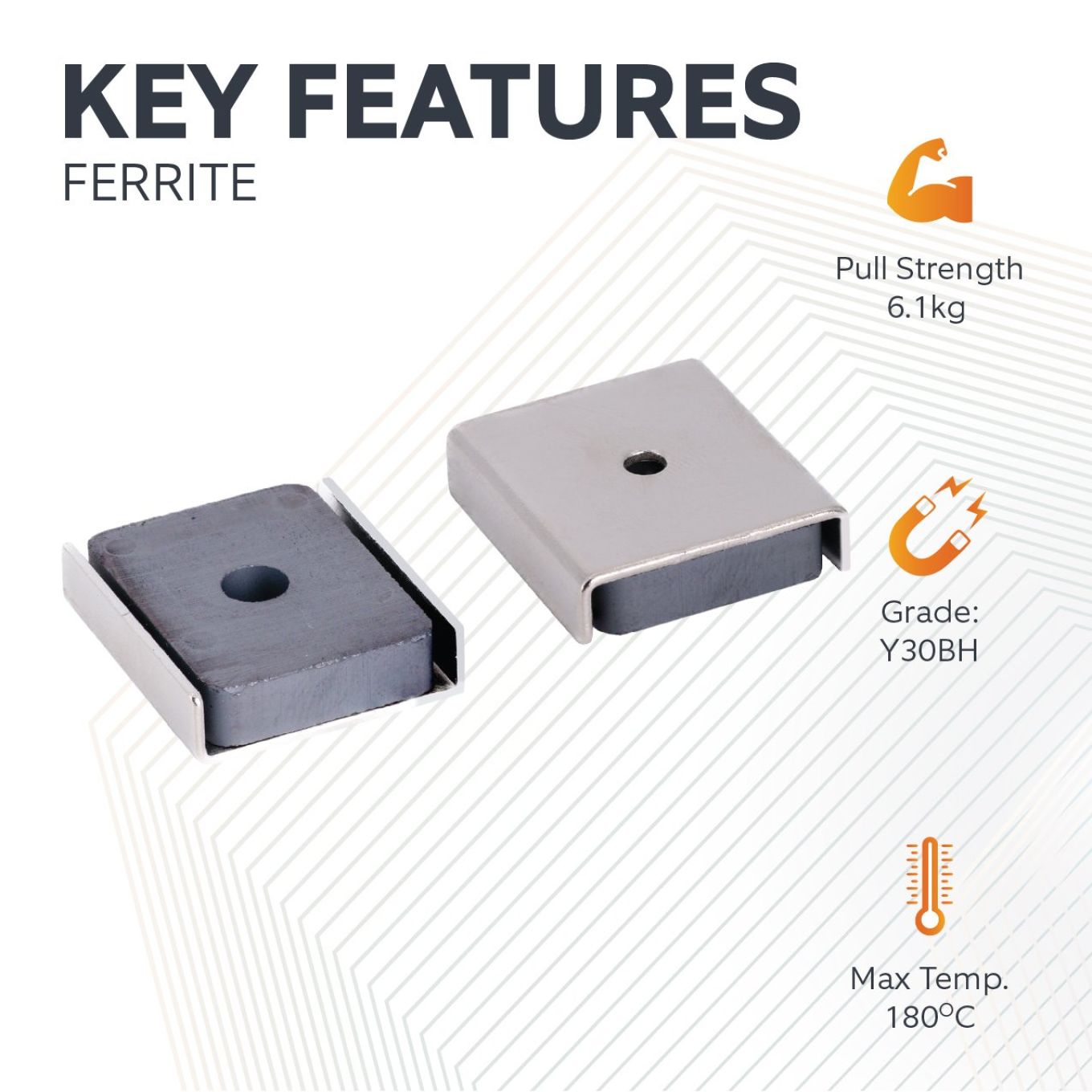

These channel magnets offer excellent value with a maximum pull strength of 6.1kg (13.45lbs). The innovative channel design with steel casing greatly increases performance. Each magnet can be screwed into place using a 3mm (0.12 in.) screw and has a maximum operating temperature of 180oC. They are commonly used around the home and for holding machine parts in place.
